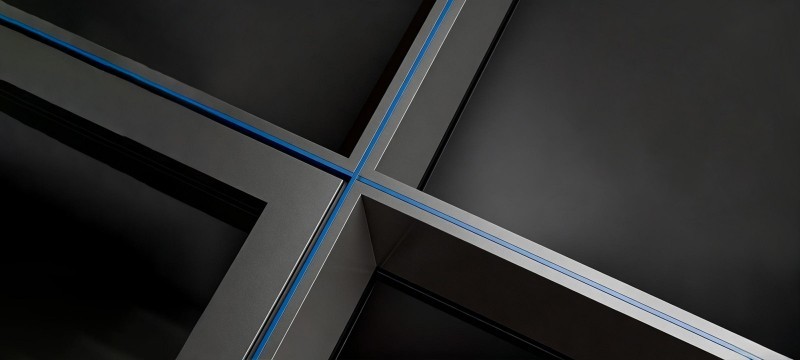

110 mm Frame Depth
Multi-Cavity Thermal Break
Where Buildings Blossom With Confidence

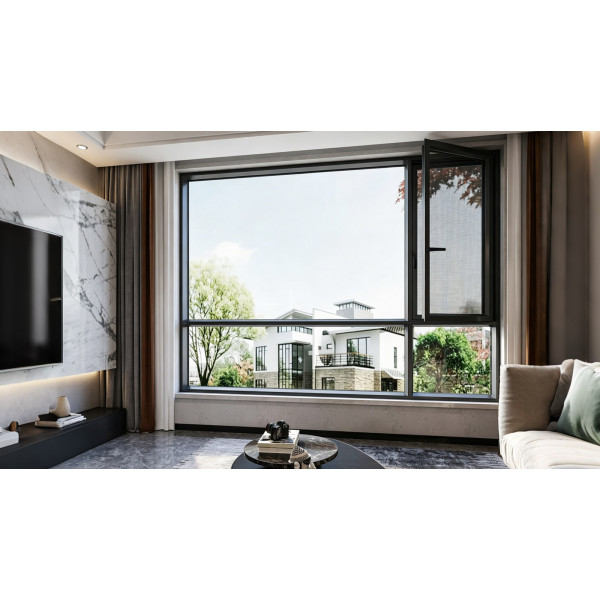

110 Casement Window
Detail Information

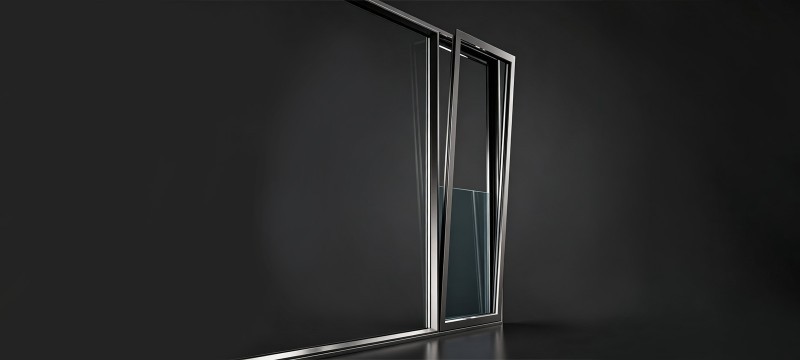

Architectural Integrated Screen Stronger Protection
BC-110
Thermal Break Casement Window System
A Clearer View
Integrated 304 Stainless
Security Mesh

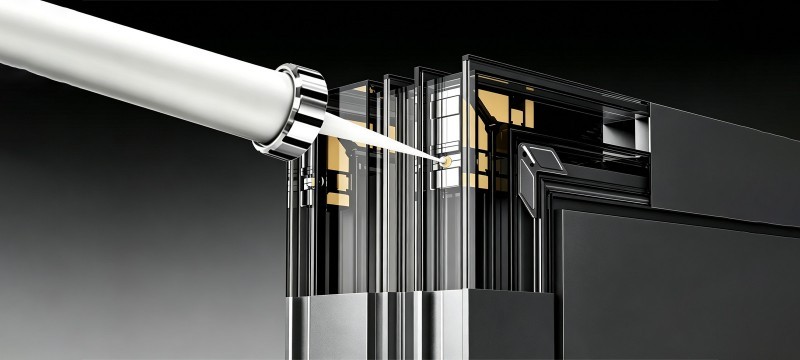

Double / Triple Low-E Glass
High Transparency
BC-110 Architectural Window Performance Specifications
Frame Depth
110 mm (50 mm main frame / 110–115 mm overall wall coverage)
GB/T 8478-2020 / AAMA 101
Alloy & Wall Thickness
6063A-T5 / 1.4 mm standard; optional 2.0 mm heavy-duty project configuration
ASTM B221 / EN 755-2
Thermal Break Barrier
20 mm Rongtai PA66GF25 nylon thermal break strip (vertical isotherm design)
GB/T 23615.1 / EN 14024
Glazing Pocket Width
33 mm standard glazing pocket system (supports 27–33 mm glass thickness)
International-Standard Engineering Glazing Pocket
Air Permeability
Class 7–8 (q1 ≤ 0.5 m³/(m·h) / q2 ≤ 1.5 m³/(m²·h))
GB/T 7106 / ASTM E283 Class 4
Water Penetration Resistance
Class 4–7 (500 Pa ≤ ΔP ≤ 700 Pa+; no leakage or backflow)
GB/T 7106 / ASTM E331
Wind Load Resistance
Class 4–8 (2500 Pa ≤ P3 ≤ 5000 Pa; resists up to Force 12 typhoon winds)
GB/T 7106 / ASTM E330
Acoustic Sound Insulation
Class 3–5 (25 dB ≤ Rm + Ctr < 30 dB; upgraded configuration reaches 35 dB)
GB/T 8485 / ASTM E90
Thermal U-Factor / K-Value
Class 6–8 (K ≤ 1.0–2.5 W/(m²·K), depending on glazing configuration)
GB/T 8484 / NFRC 100 / EN ISO 10077
Sealing Gasket System
Jiangyin Haida automotive-grade EPDM gaskets with three continuous sealing layers
ISO 3934 / ASTM C864
Security Mesh Spec
#304 stainless-steel security mesh, 0.8 mm wire diameter, 18 mesh, with high visibility and ventilation
ASTM A555 / 304 Stainless Steel
Heavy-Duty Multi-Point Transmission & Safety Locking Hardware
Fitted with architectural-grade transmission hardware, featuring cast carbon steel gears with Nano-Blue anti-corrosion coating tested for over 100,000 cycles. Rated for 60kg sash loads and verified through 120-hour salt spray testing, maintaining position stability against wind gusts without sagging. Equipped with high-tensile stainless anti-drop tethers and R10 soft corner bumpers to eliminate glass falling risks and collision hazards. Standard HOPPO / CMECH baseless handles with 10mm heavy-duty spindles and tactile 30-degree mechanical feedback in Grey and Coffee. Distributes anti-pry locking cams around the perimeter, compressing gaskets securely to maximize airtightness and forced-entry security. Hover, focus, or tap a hotspot to explore each hardware detail. Coated via automated vertical lines to pass 1000-hour salt spray tests, guaranteeing color retention and film adhesion under intense UV and coastal conditions.

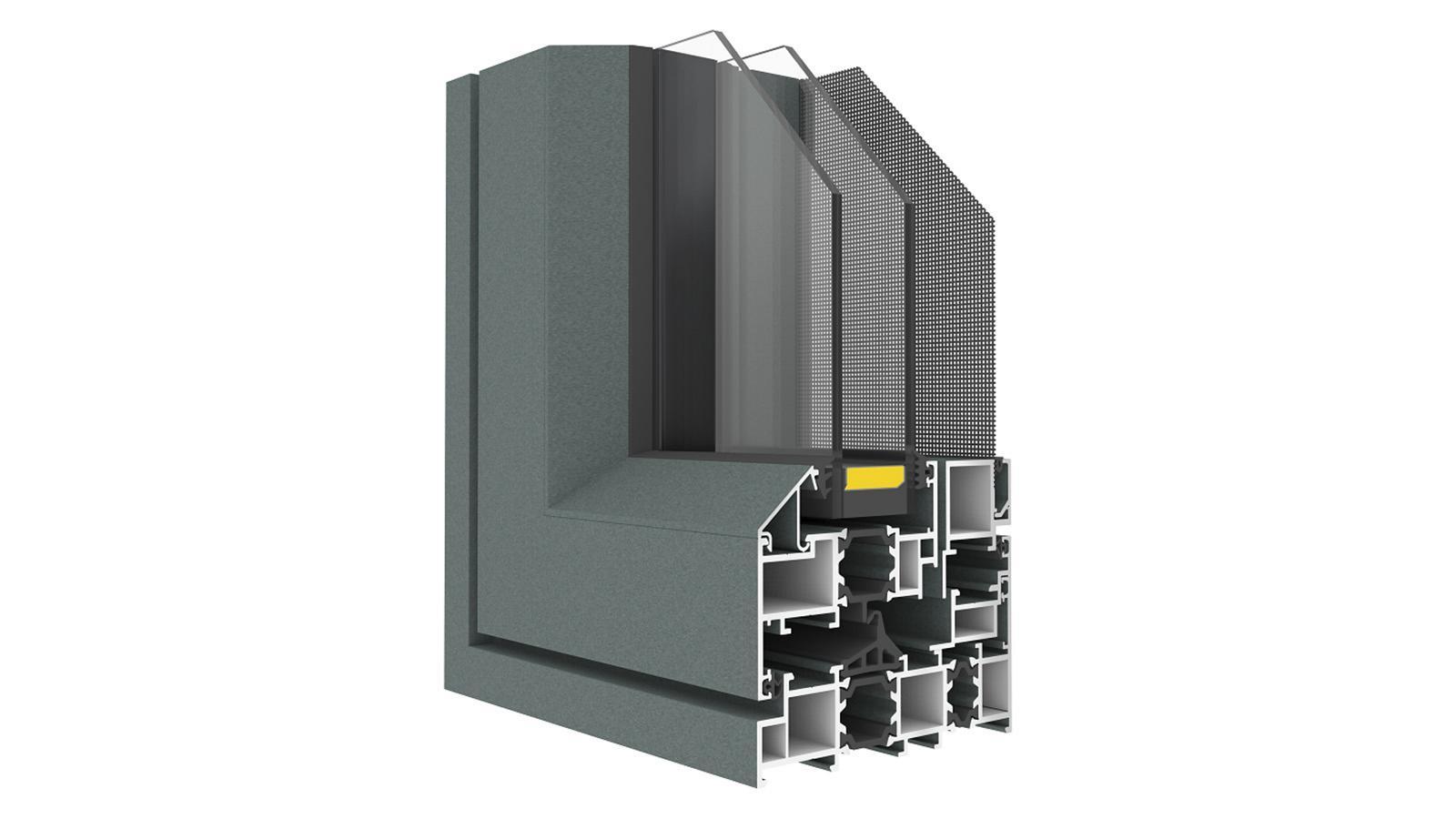

BC-110 is a flush thermal-break aluminum window platform engineered for residential towers, villas, hotels, and
commercial façades. Its 110 mm frame combines a 20 mm PA66GF25 thermal barrier, 27–33 mm glazing capacity, integrated
304 stainless-steel security mesh, and multi-point locking for dependable thermal, weather, acoustic, and security performance.
A high-weatherability aluminum window system combining flush architectural sightlines, insulated glazing,
integrated security screening, and heavy-duty multi-point hardware for project-specific window-wall configurations.

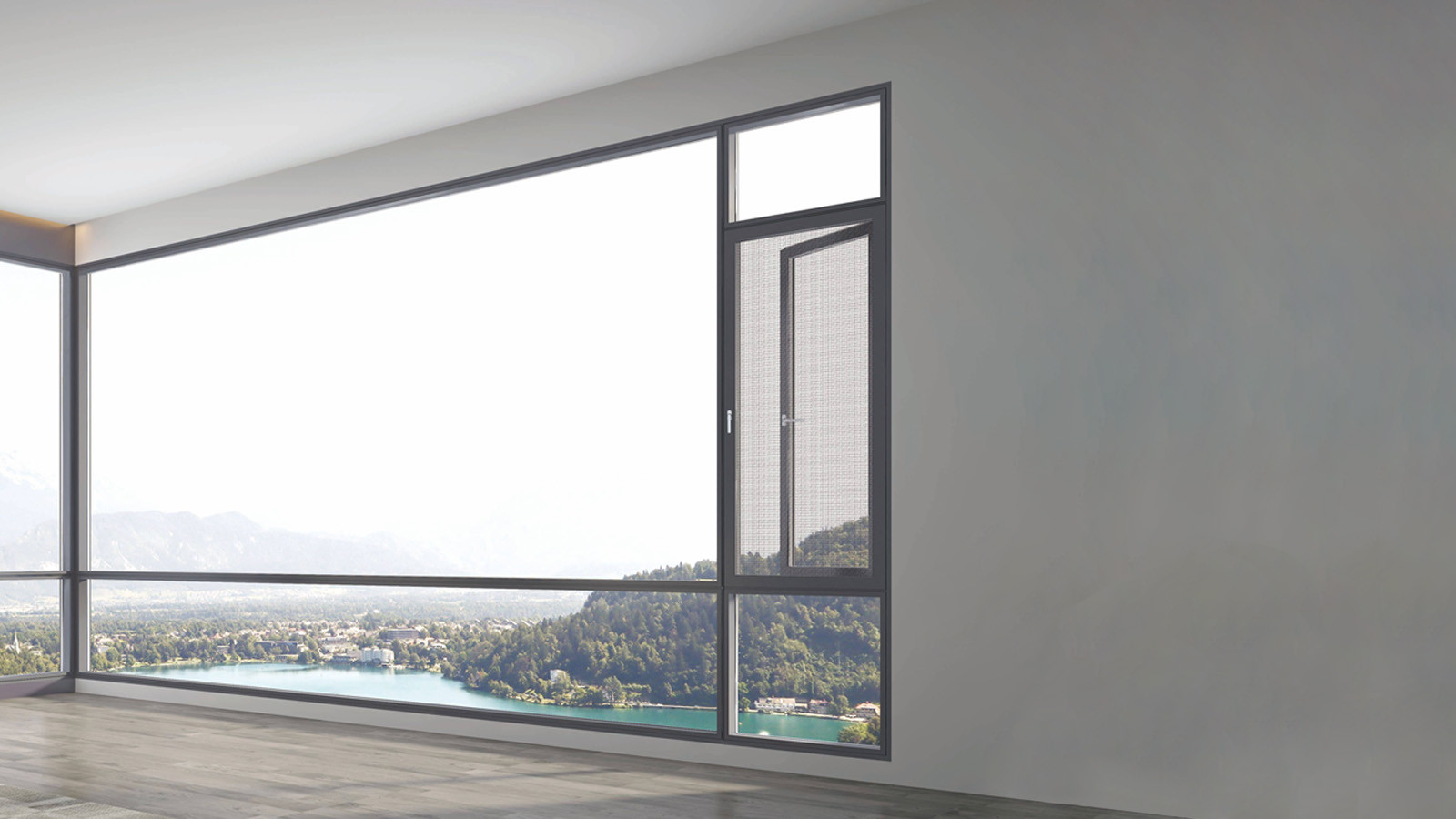

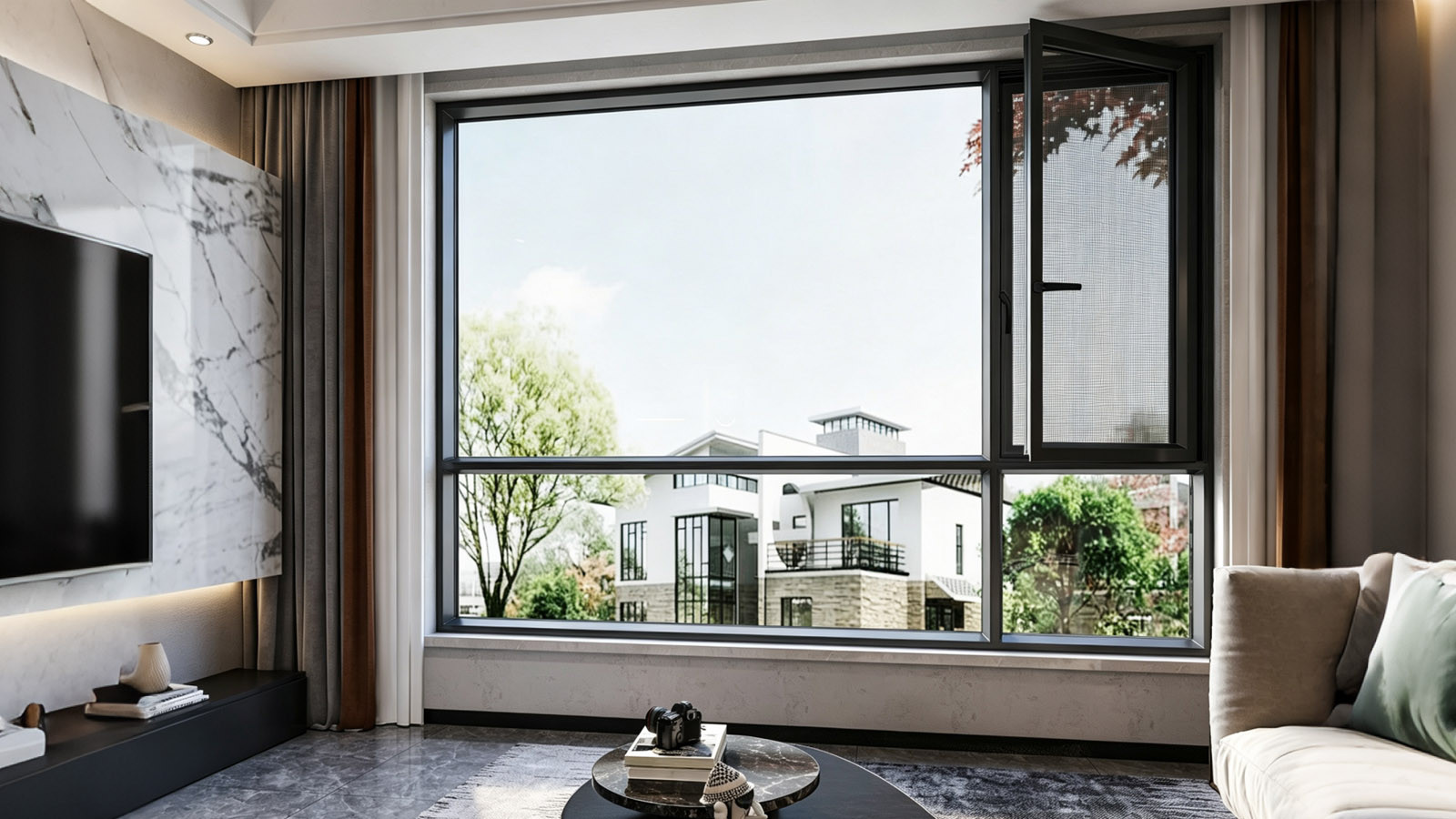

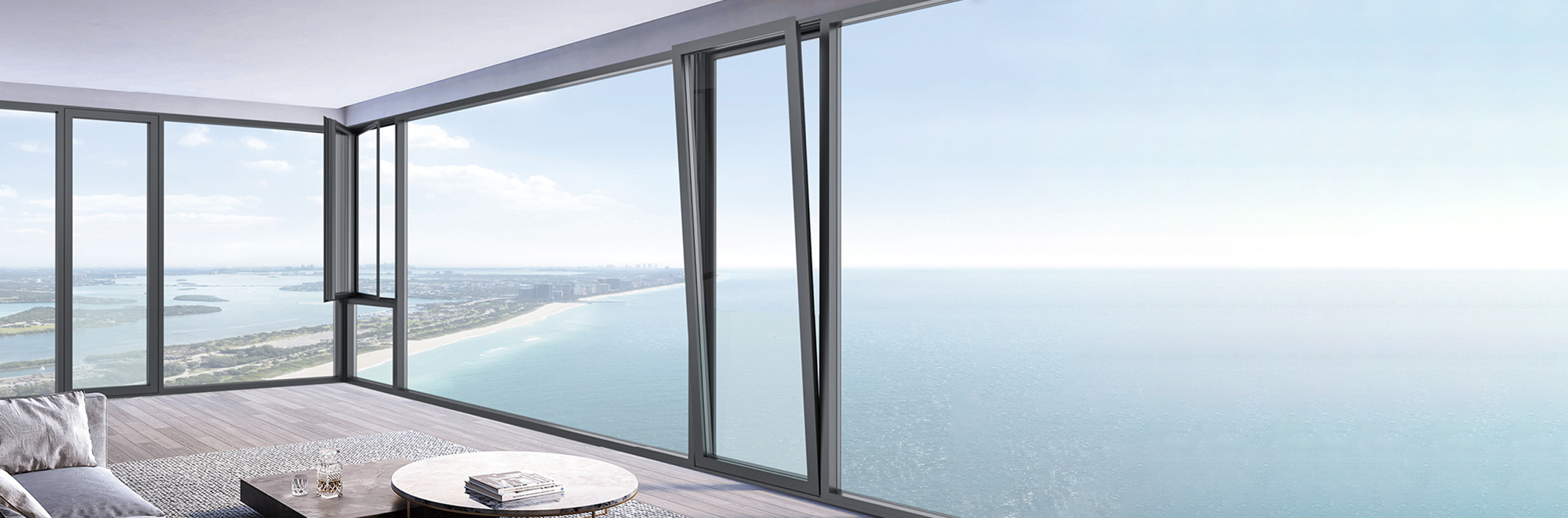

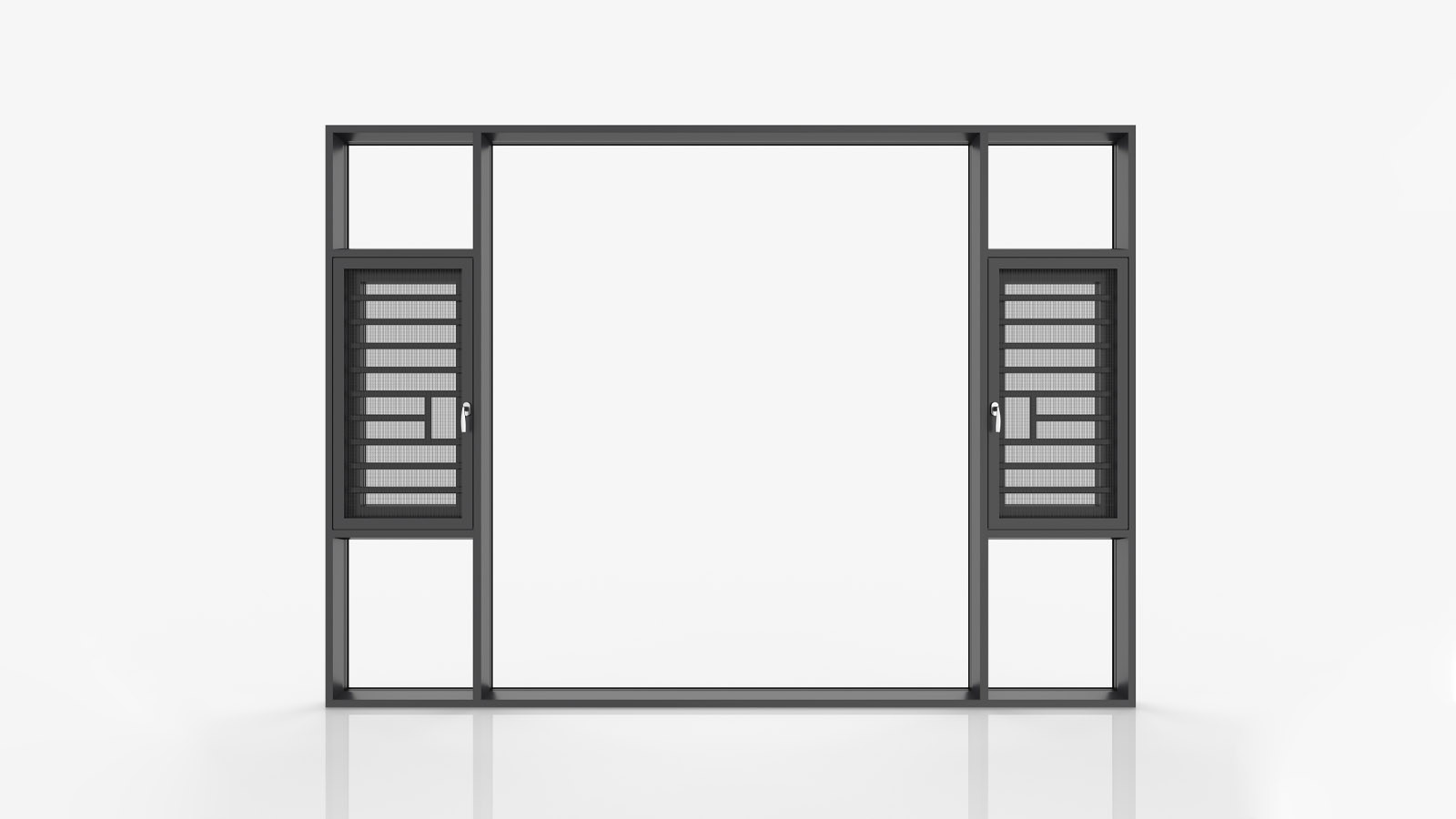

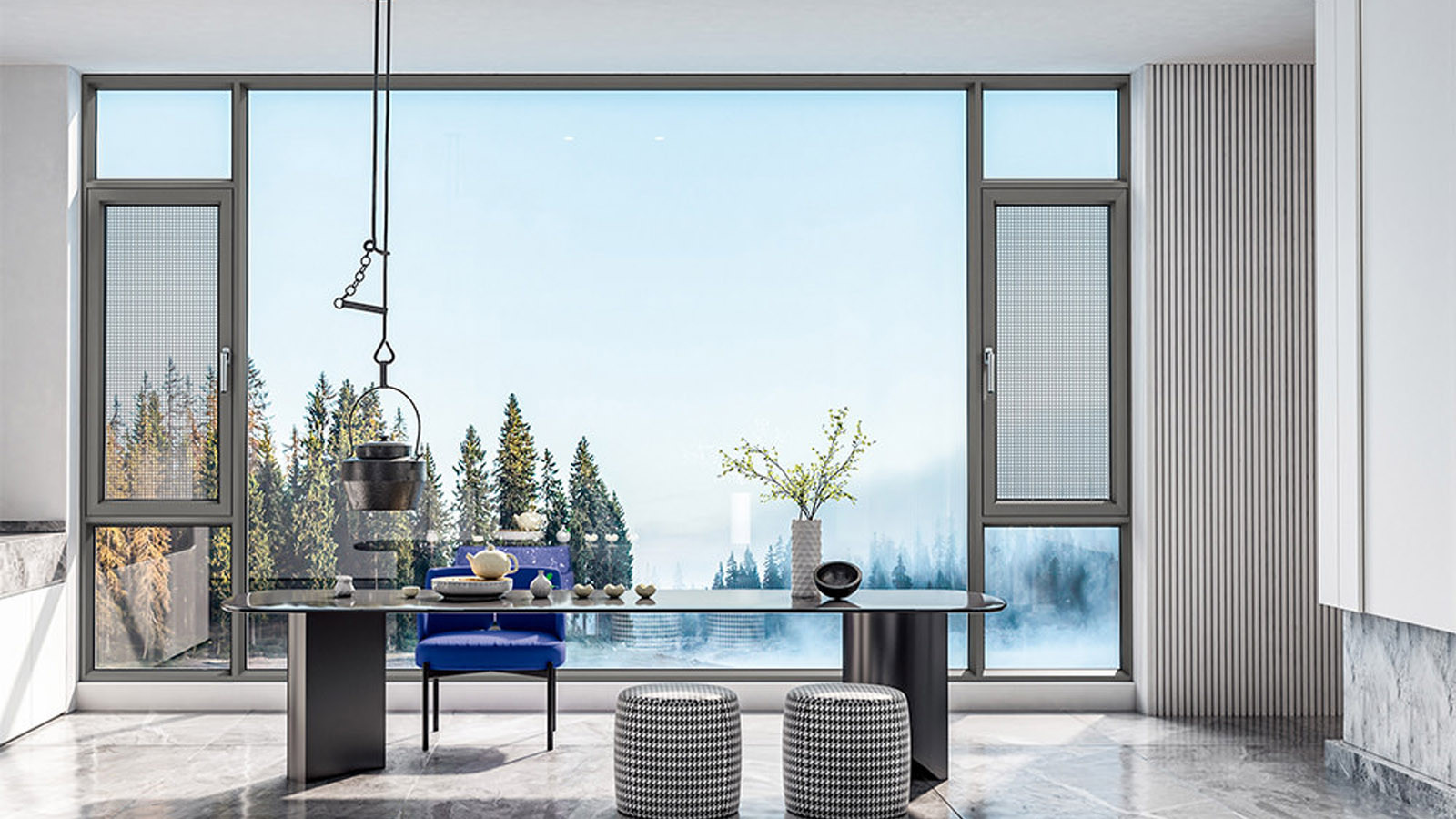

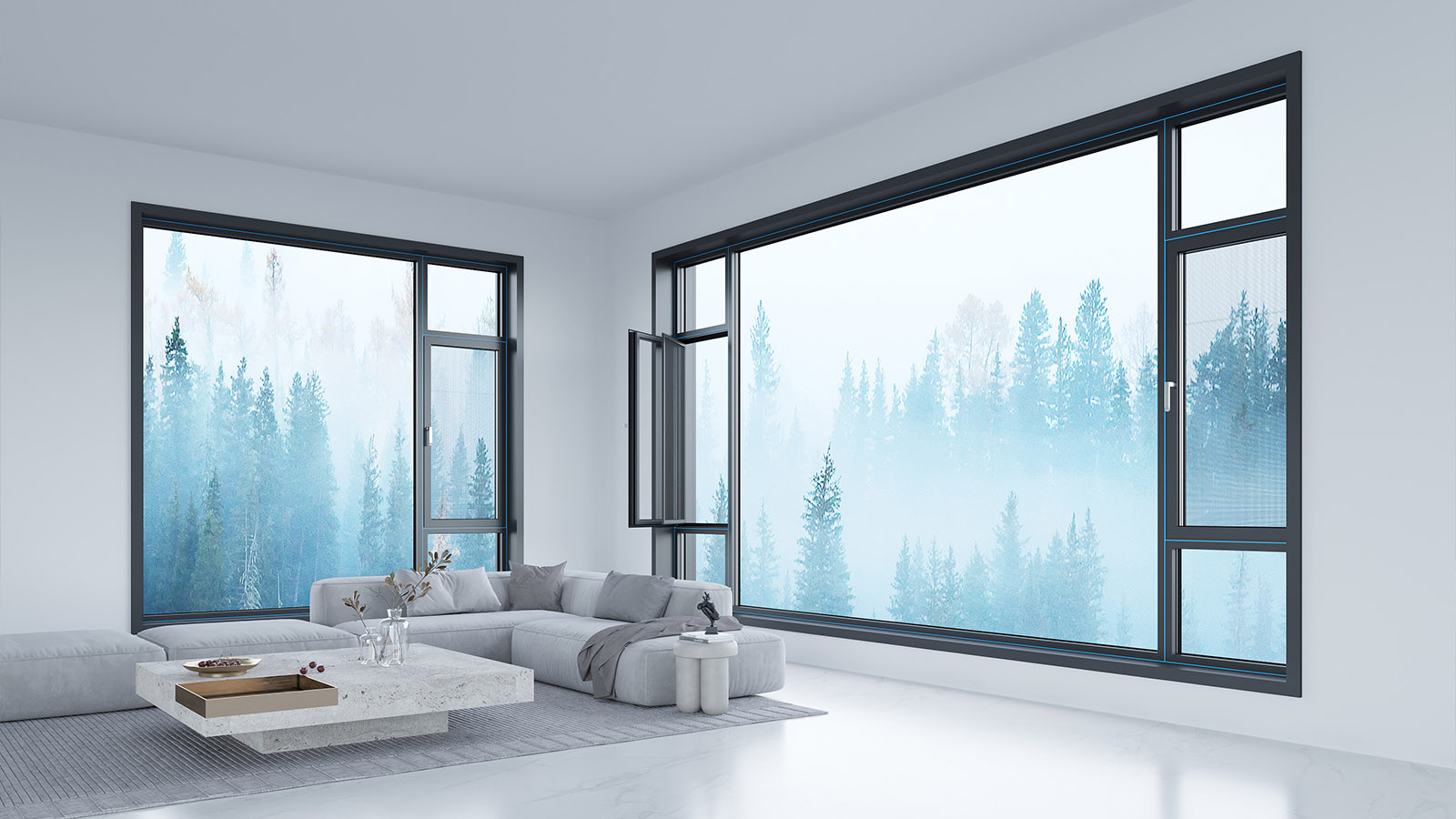

This gallery presents BC-110 residential installations, symmetrical window-wall elevations, screened casement
configurations, and the thermal-break profile assembly. Available layouts combine fixed glazing with single or
double operable vents for villas, apartments, hotels, and commercial façade projects.
Choose the glass color, transparency, privacy level, surface effect, and coordination with
concealed sliding hardware for custom ghost door projects. Glass color affects daylight, privacy, reflection, and the visual depth of a ghost door. Review the selected
glass together with the frame finish, panel size, door-leaf weight, and YB01, YB05, or YB09 concealed
hardware set before production.

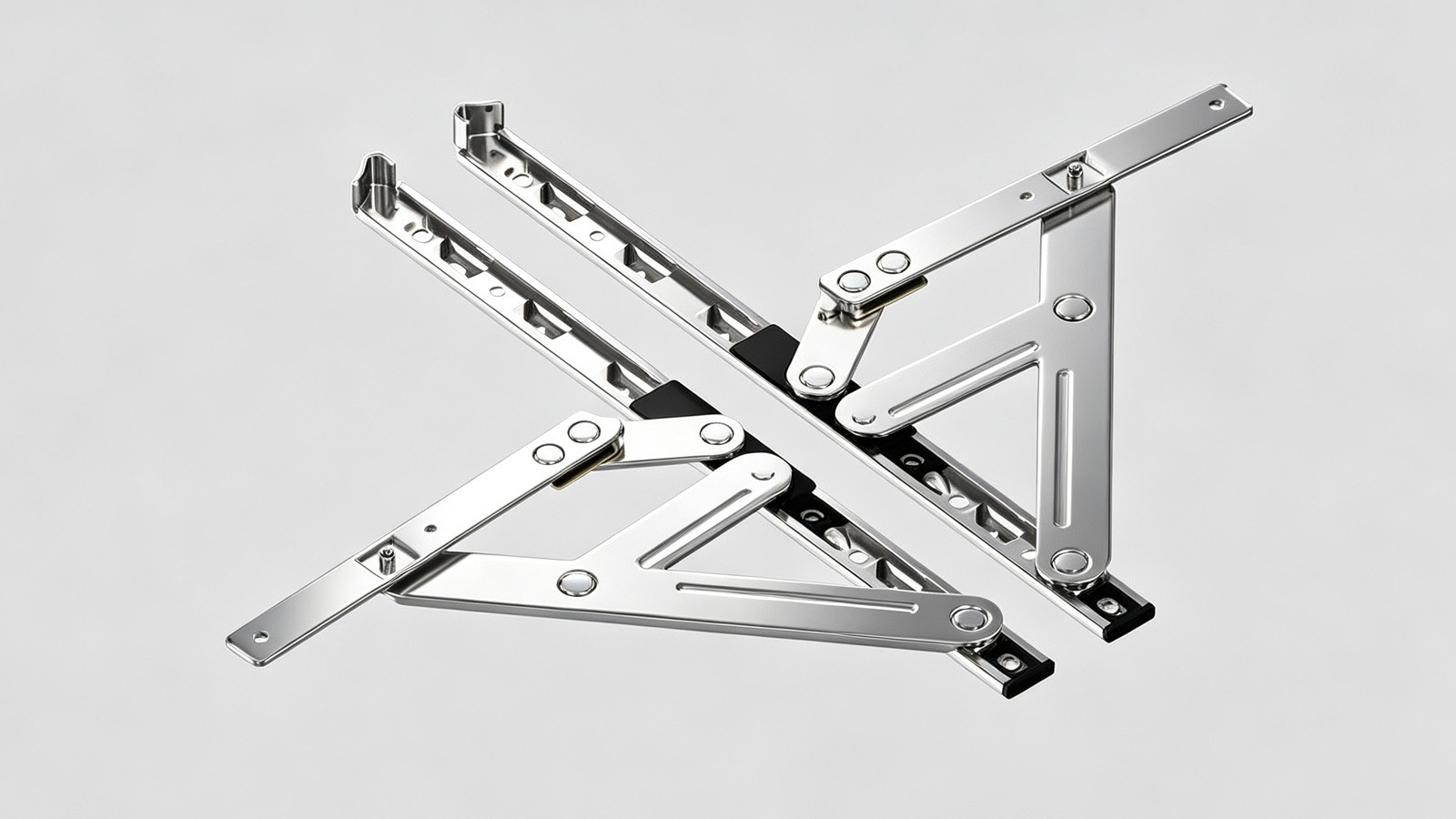

304 Stainless Heavy-Duty Friction Stays

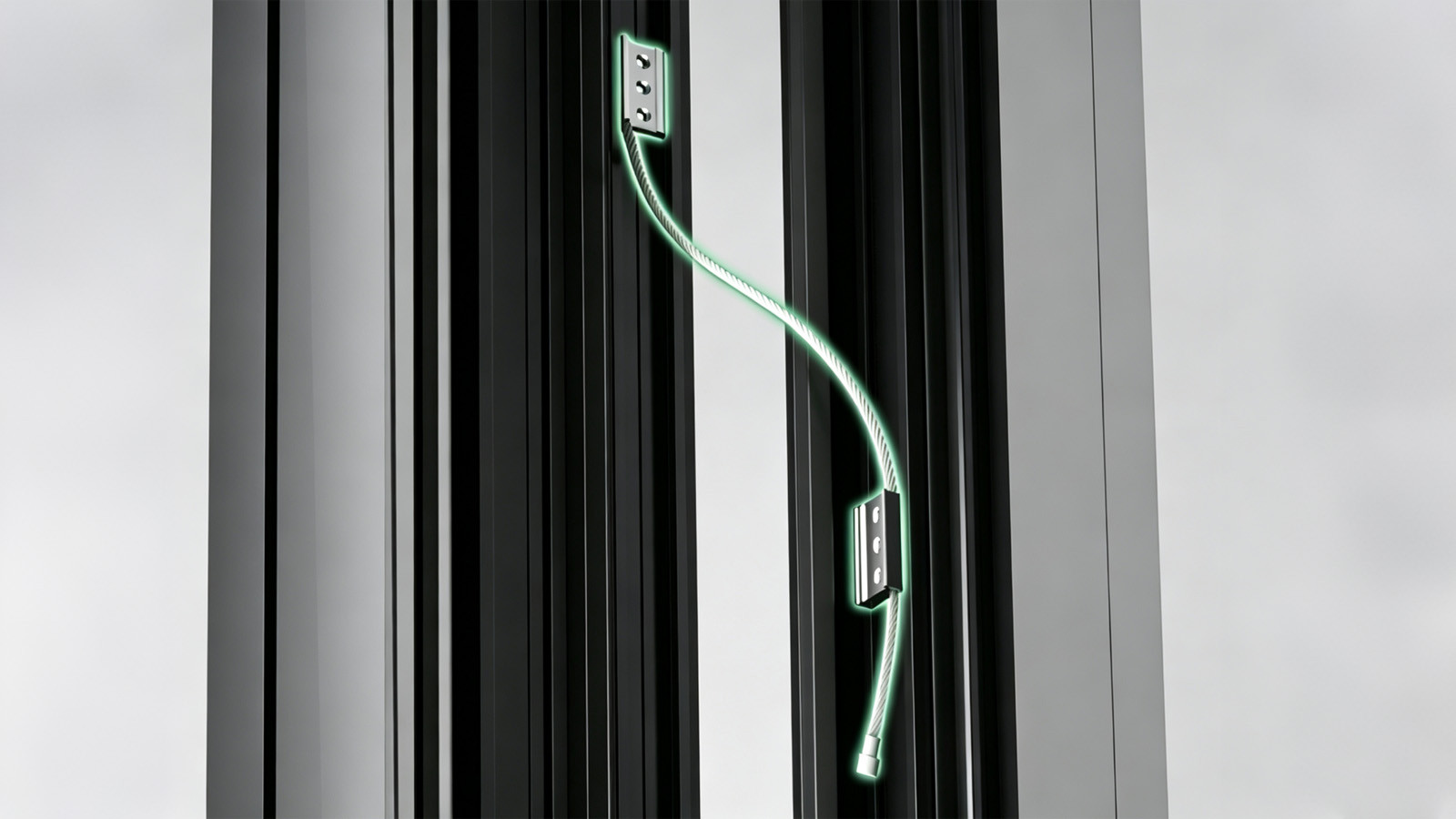

Stainless Safety Retaining Tethers & Bumpers

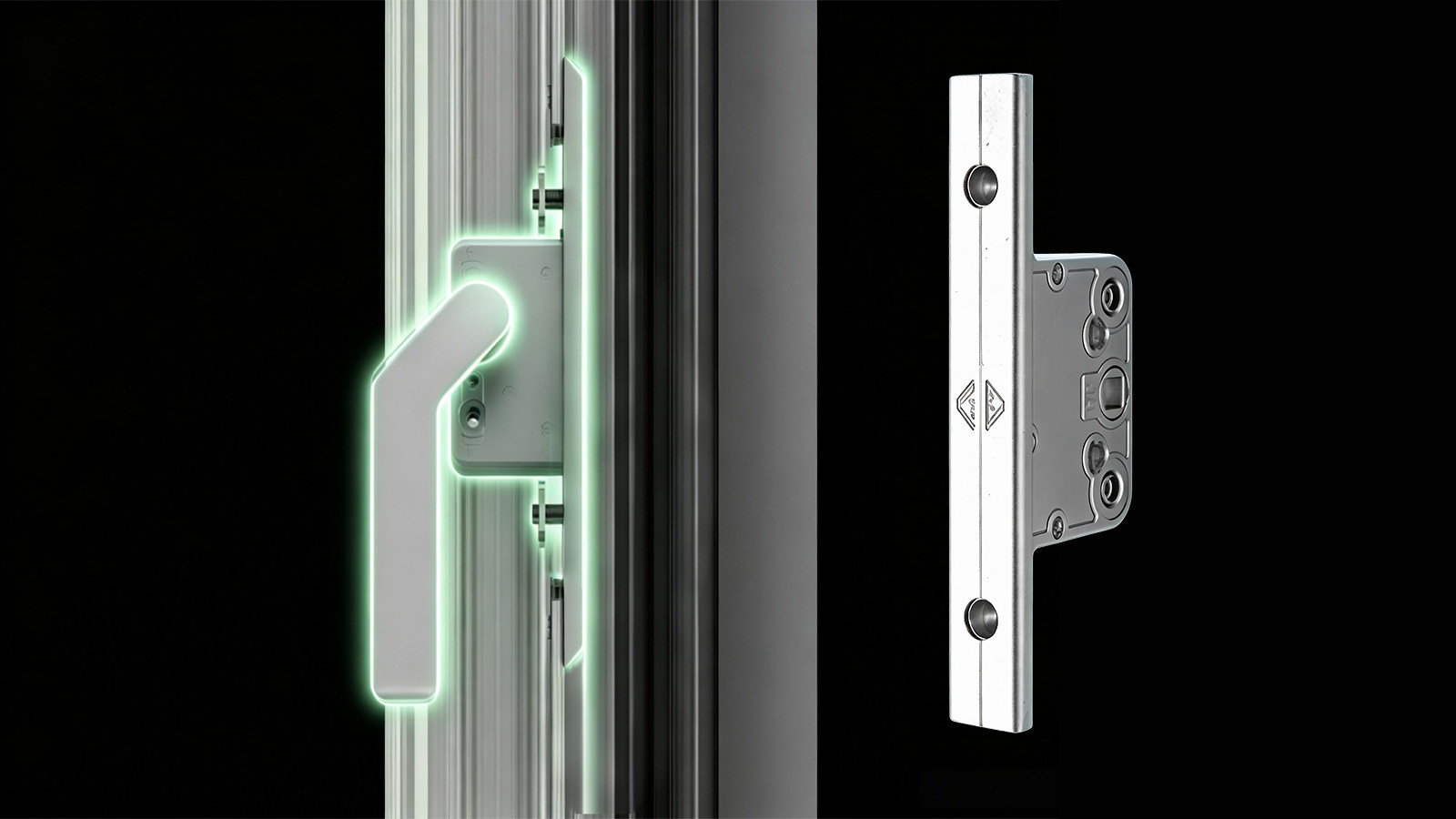

High-Aesthetic Baseless Minimalist Handles

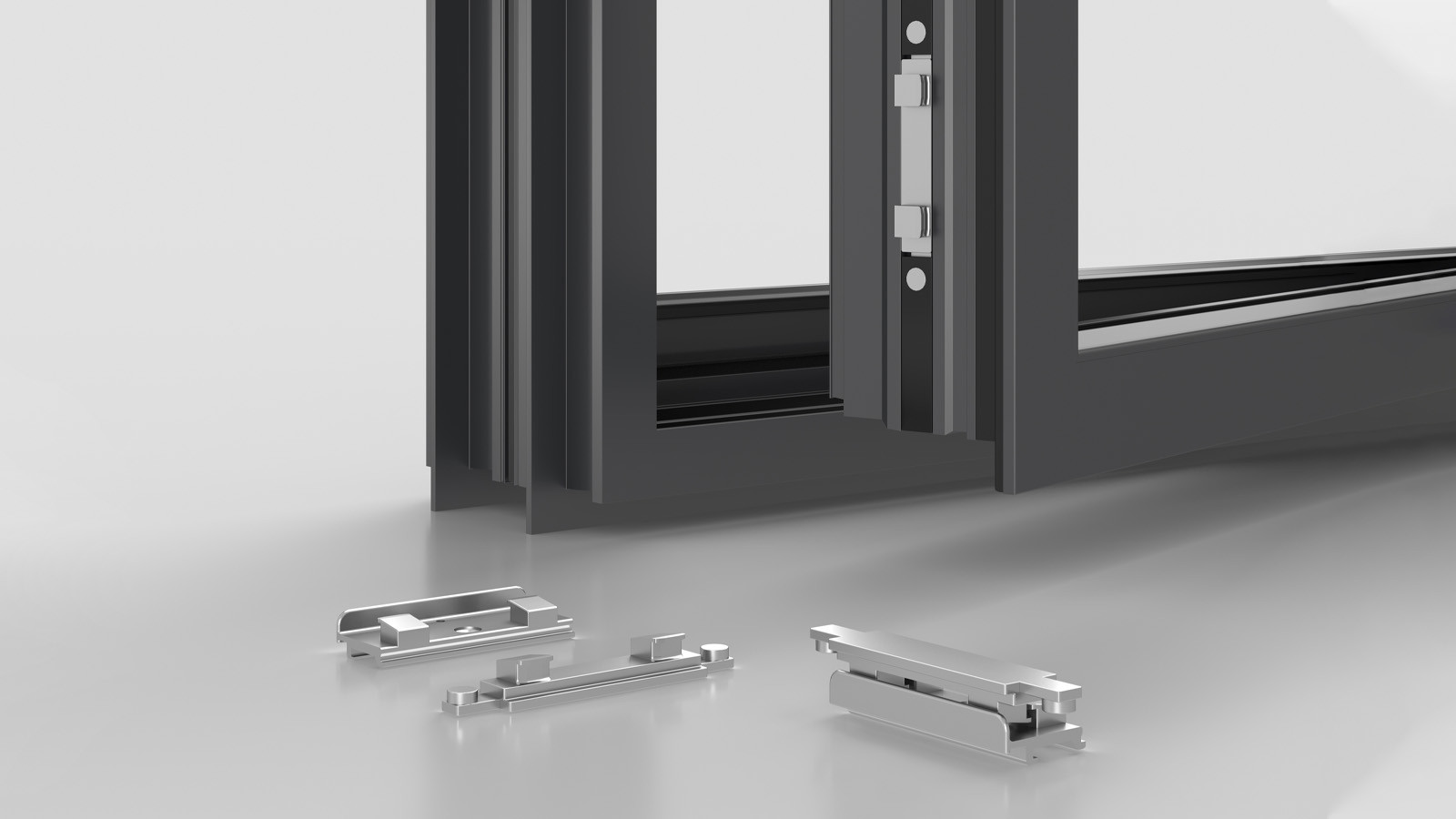

Multi-Point Anti-Pry Perimeter Locking
Flush Thermal Break Aluminum Window Architectural High-Weatherability Surface Finishes & Color Palette
Architectural Stock

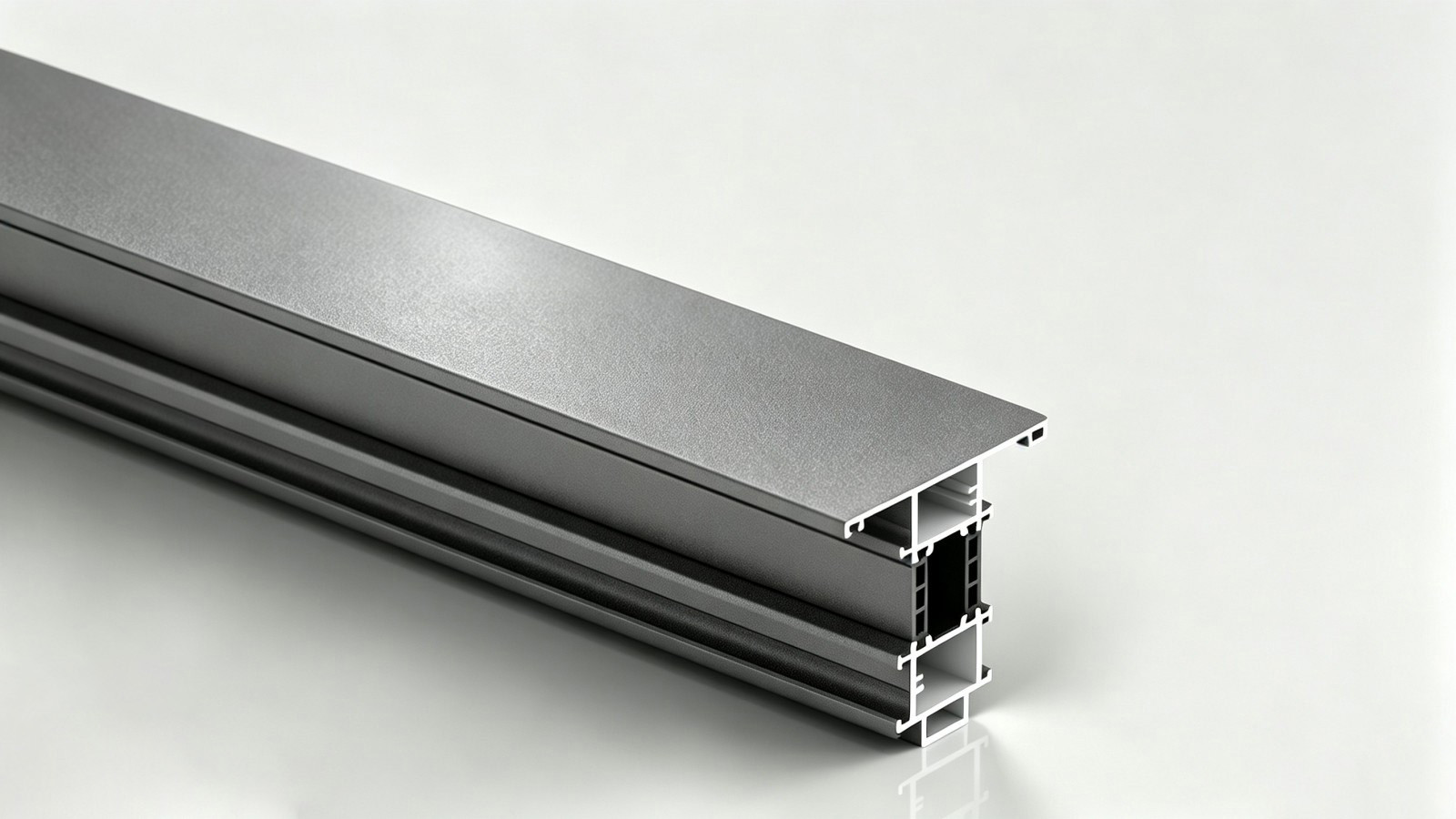

Sand Grain Grey
Architectural Stock

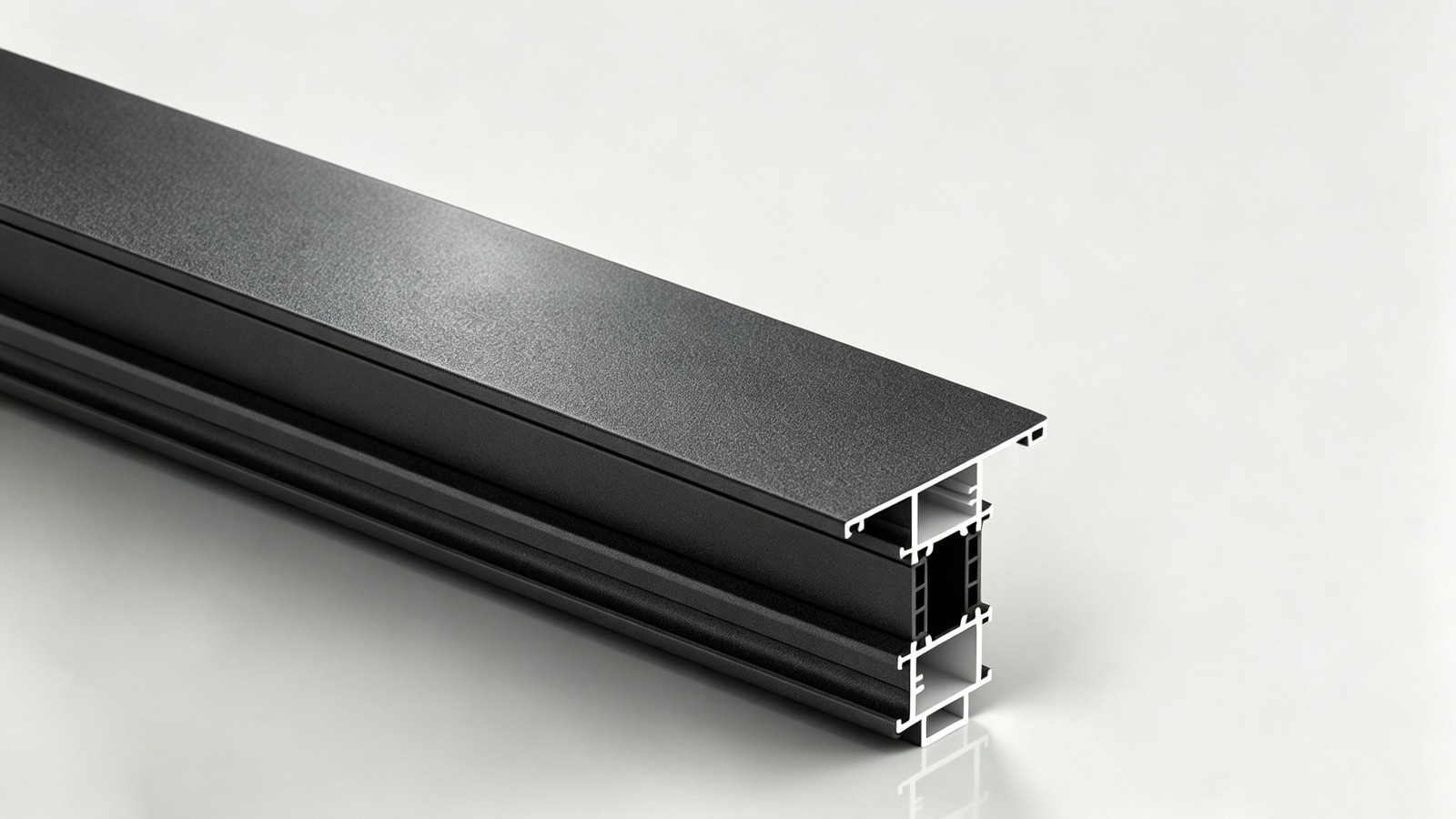

Flash Silver Black / Dark Basalt
Architectural Stock

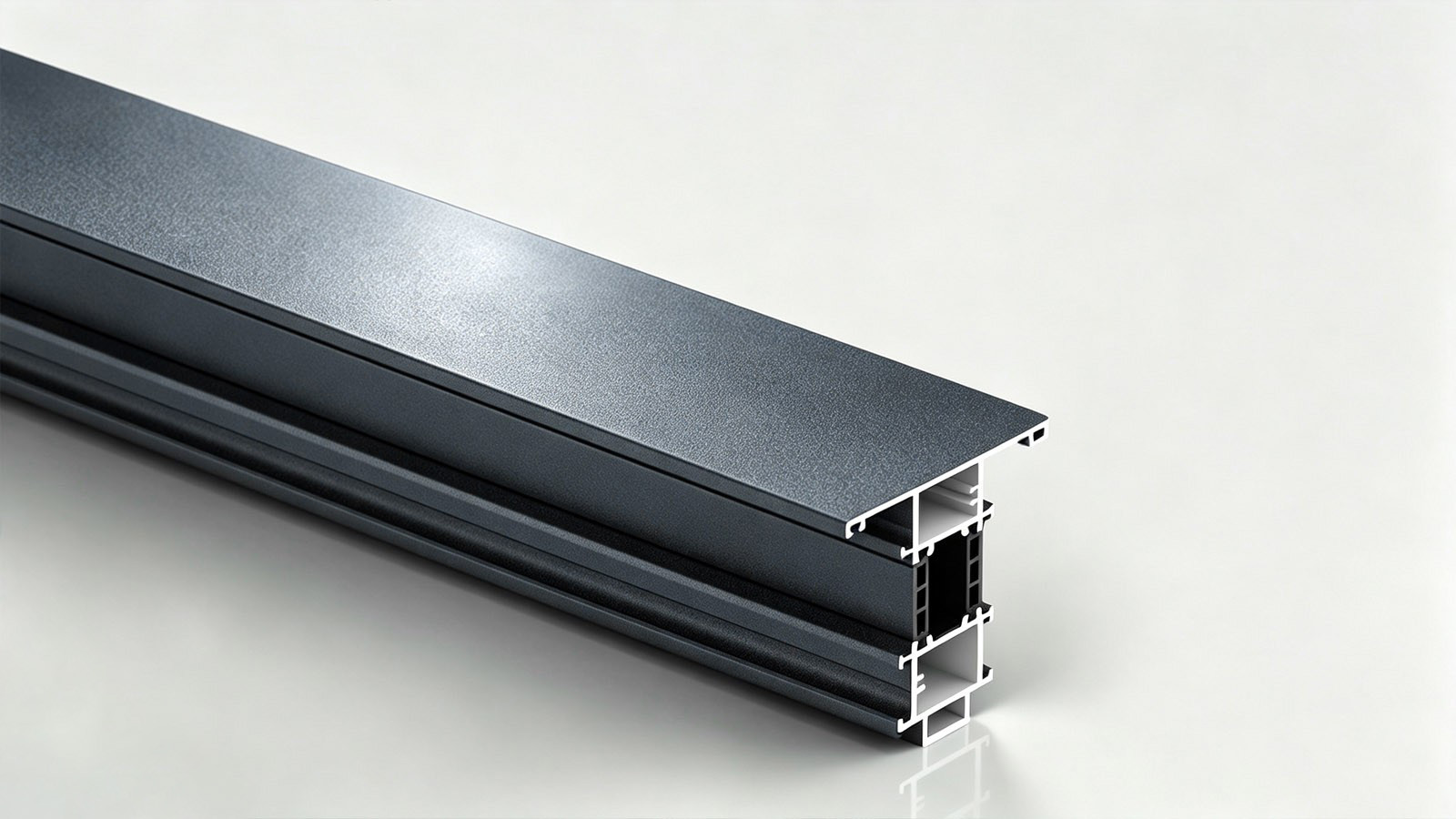

Metallic Grey
Architectural Stock

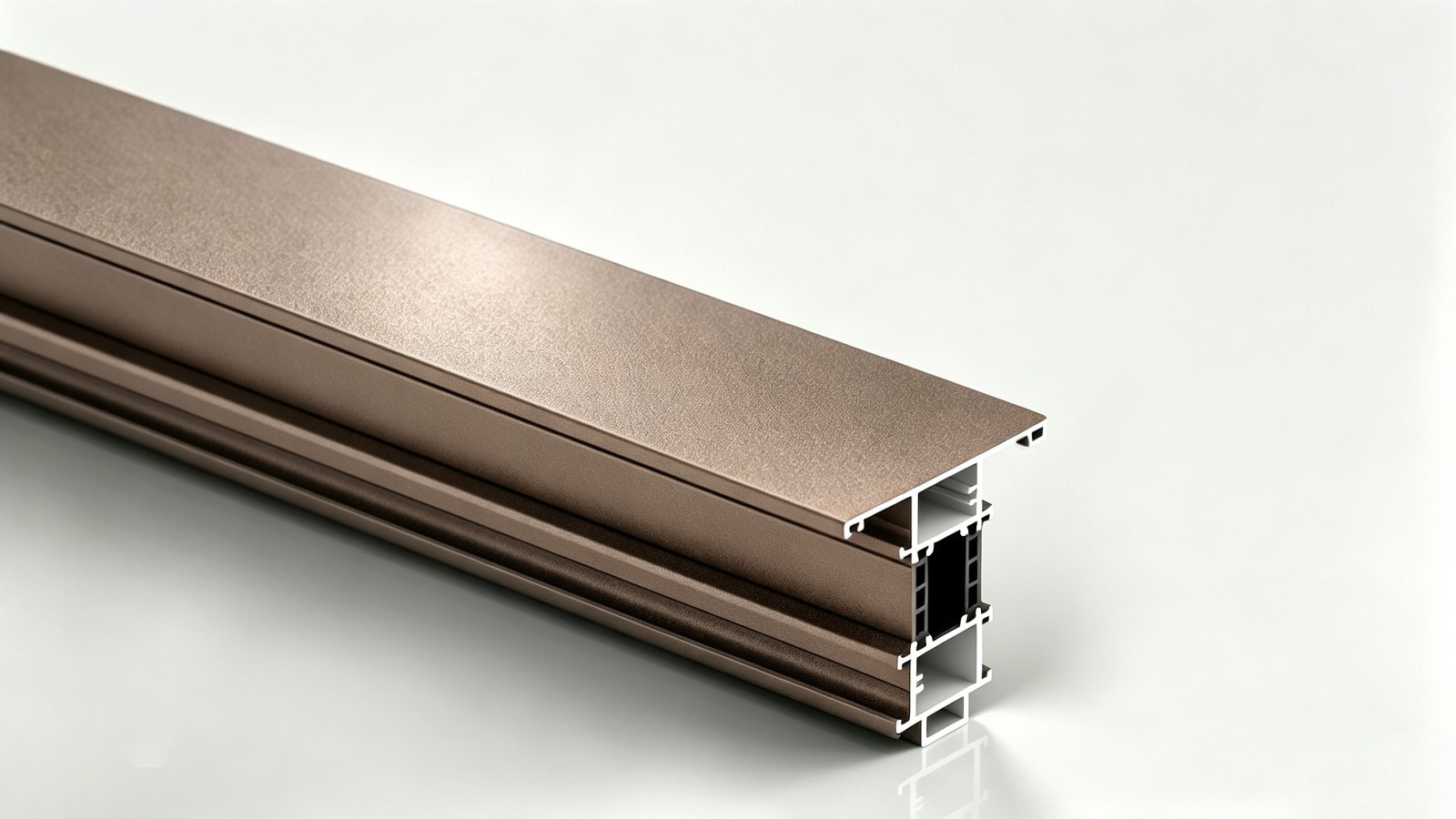

Metallic Coffee

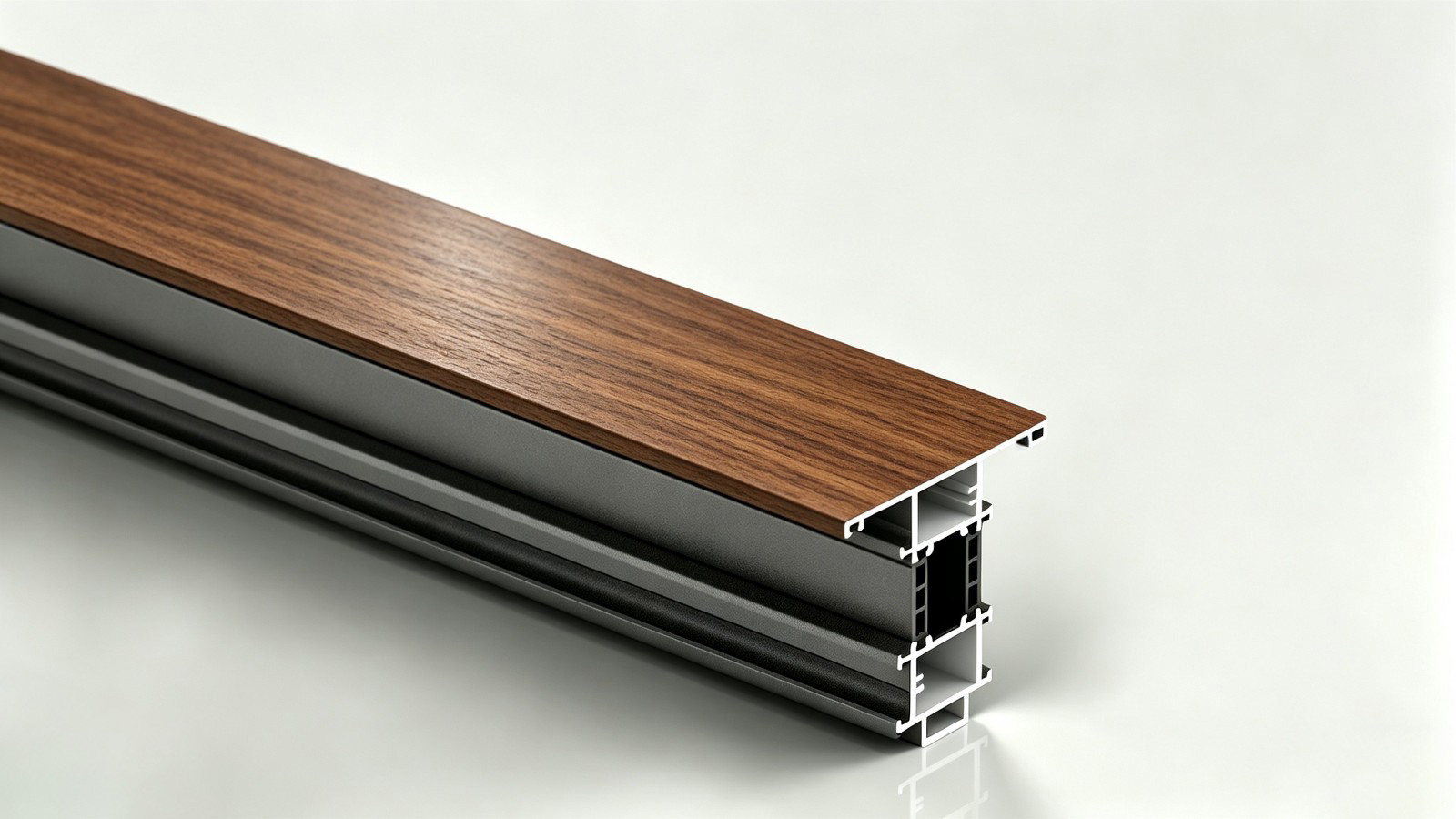

Custom Interior Dual-Color Finishes
BC-110 Architectural Integrated Screen Thermal-Break Casement Window System

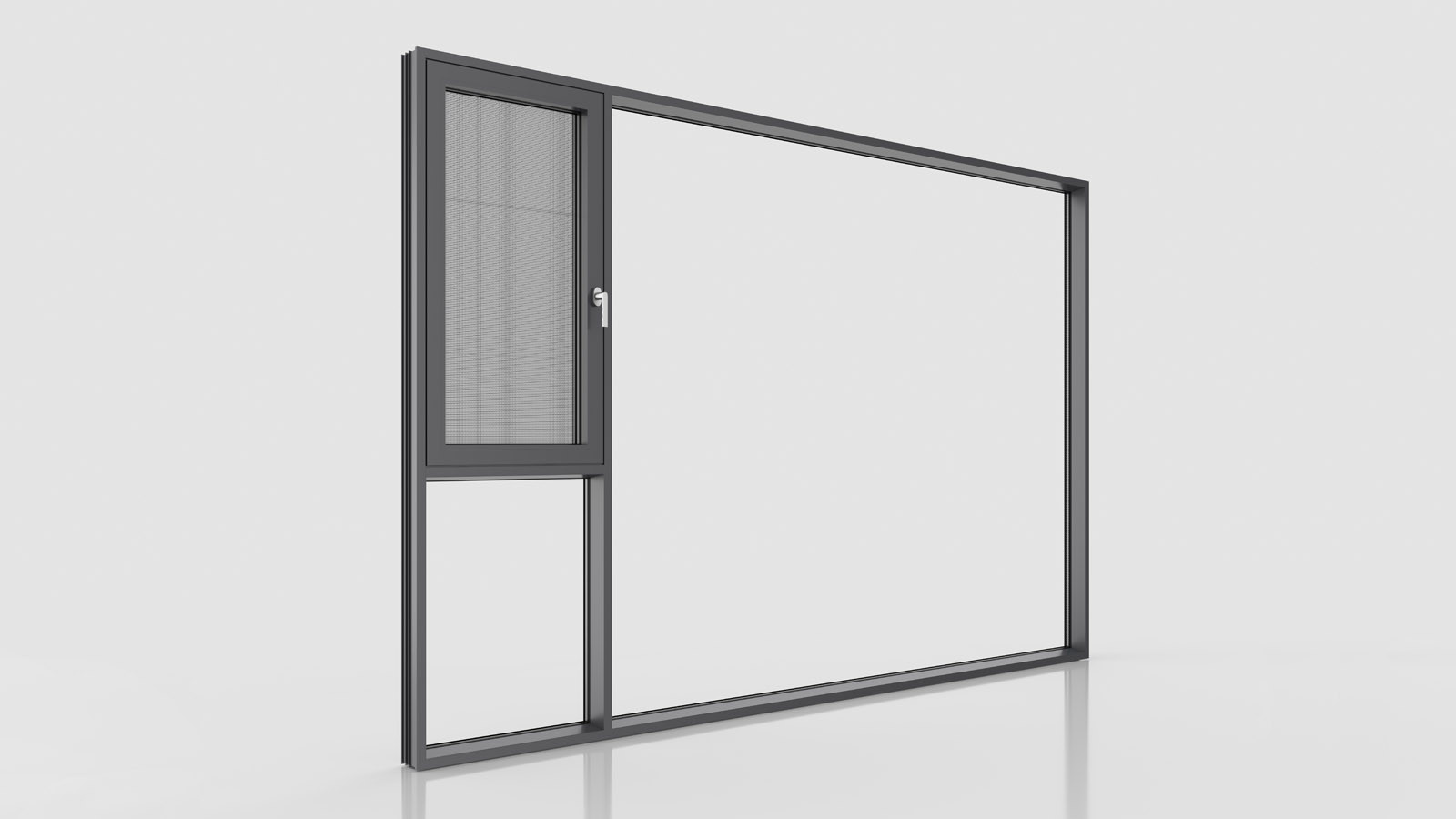

BC-110 Product Configuration
Single Vent
Double Vent
Multi-Lite Window Wall
BC-110 Architectural Integrated Screen Thermal-Break Casement Window System
Architectural Application Reference
Ghost Door Glass Color Customization
Clear Glass
In Stock
European Grey
Grey Tea Glass
Gold Tea Glass
Black Glass
B2B Engineering Submittal & Technical Specification Download Hub
