The First Line of Architectural Sovereignty: Heavy-Duty Metal Entrance Door Systems
Technical Audits & Parameters
Global Code Compliance: Thermal Barrier, RC3 Security Armor, and Marine-Grade Powder Finish
Focusing on the core physical and chemical indicators of the metal entrance door system, the technical audit of the project's detailed phase is fully met by publicly disclosing the node parameters of the thermally broken profile cavity, the armored steel core anti-pry structure, and the large-area safety glass.

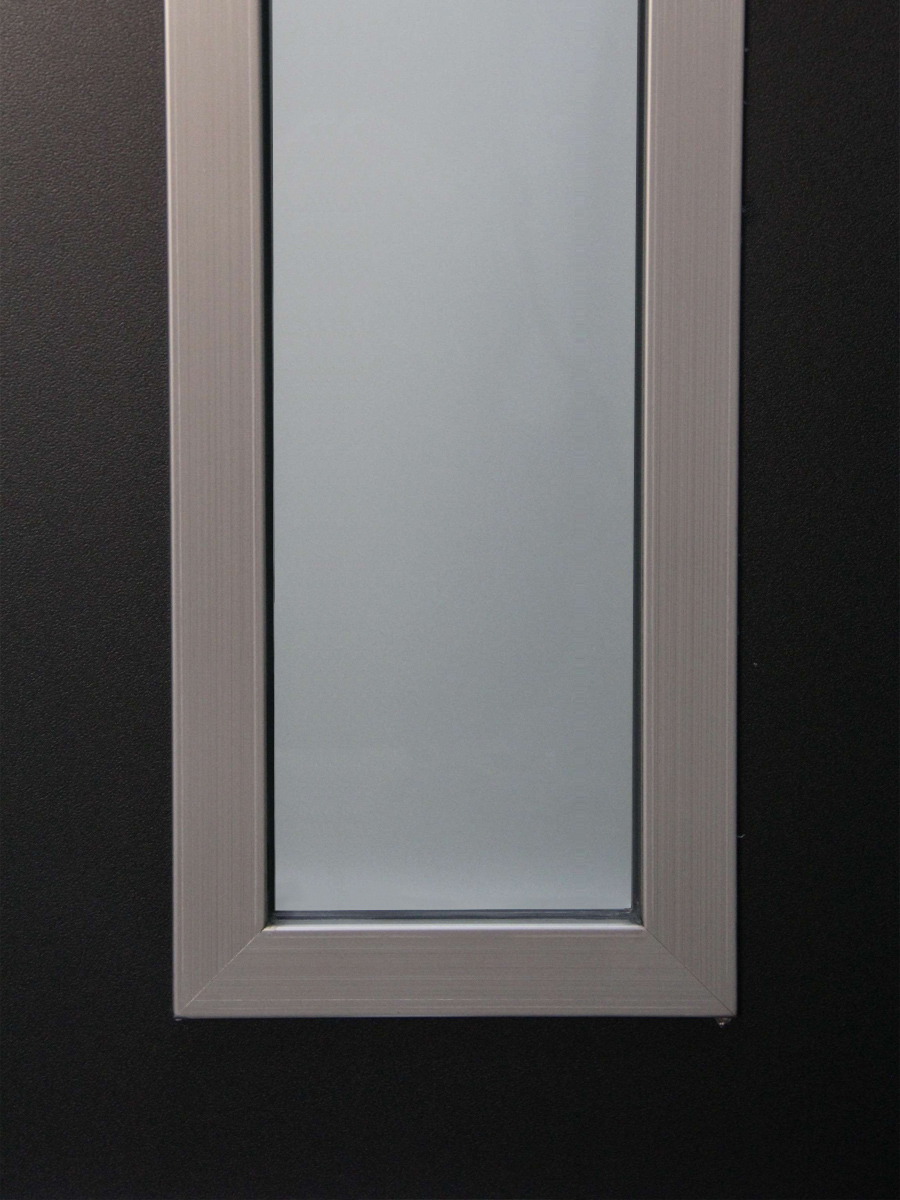

Max-Area Structural Glass Integration
Supports oversized laminated tempered safety glass insertion matched to official node drawing specs, using structural perimeter glazing to secure edge clearances against extreme localized wind loads.

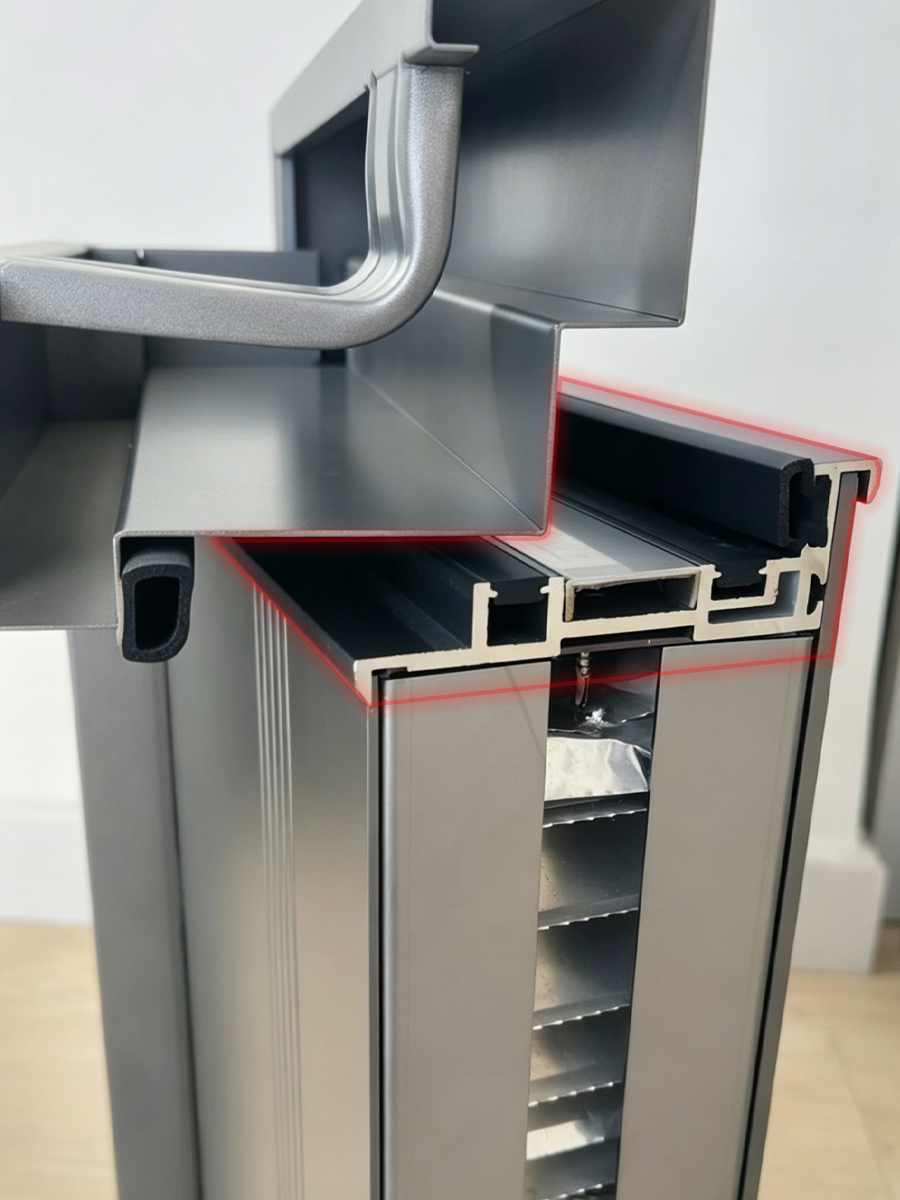

Multi-Cavity Thermal Break System
Utilizes high-performance multi-cavity thermal break profiles to eliminate metal cold bridges, controlling internal heat transfer to effectively prevent winter condensation and energy loss.

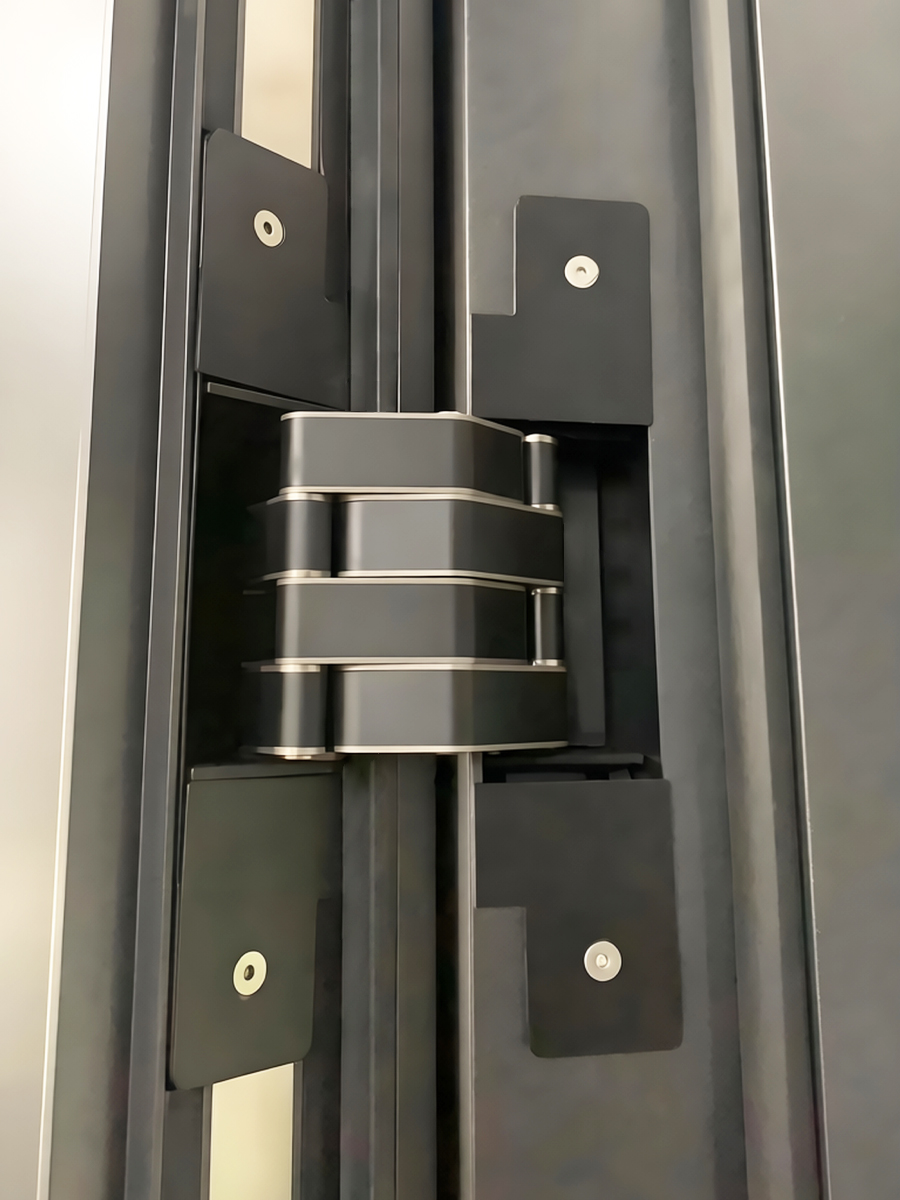

Reinforced Armored Anti-Pry Structure
Engineered with heavy-duty internal steel armored skeletons and anti-pry multi-layer reinforcing ribs, isolating the frame against mechanical shear and heavy impacts far better than non-armored profiles.

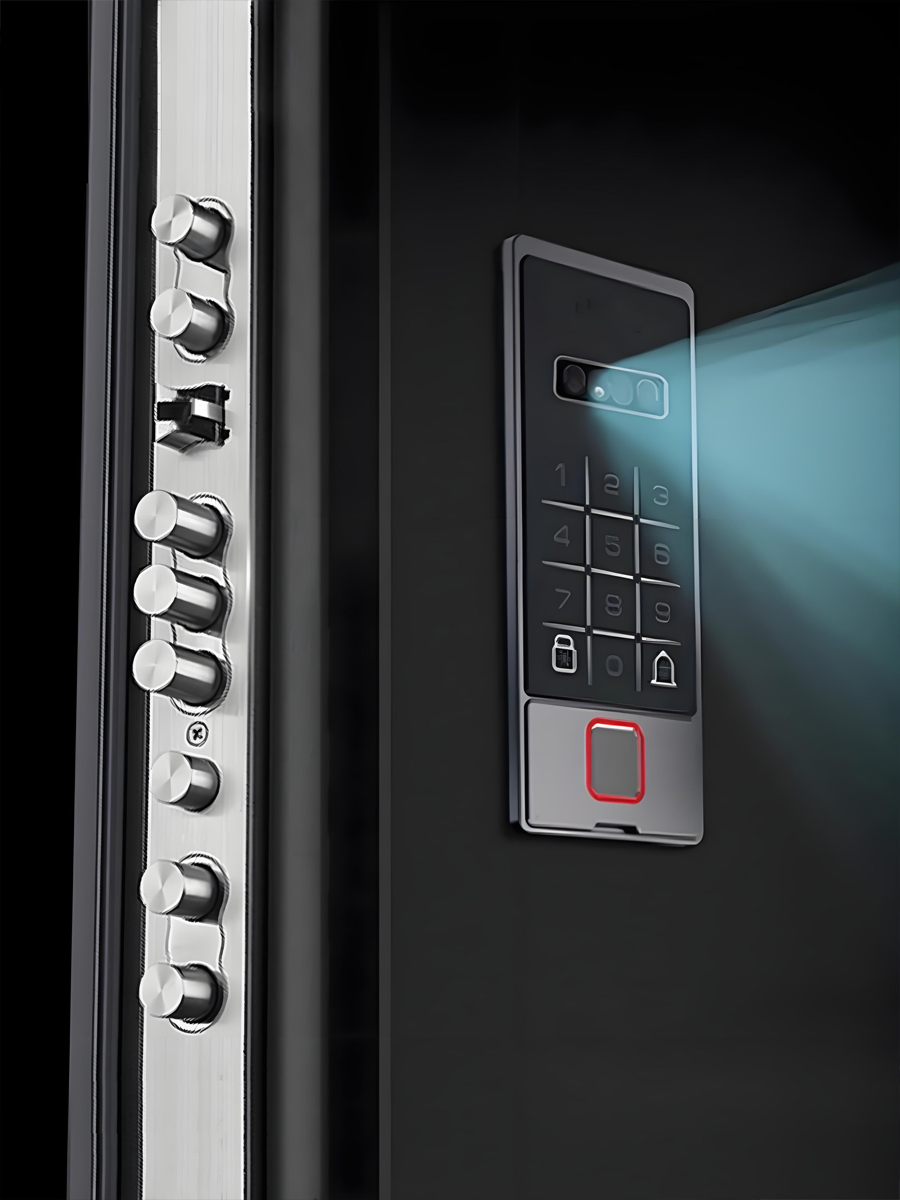

Engineered Locksets & Durable Surface Finishes
Features strictly rated high-security lockset assemblies and matched engineering hardware. Substrates undergo chemical passivation and thick-film surface curing to resist localized cross-border weather elements.
Material Metallurgy: Decoding 304 Stainless, Cast Aluminum, and Zinc-Alloy Armored Matrix

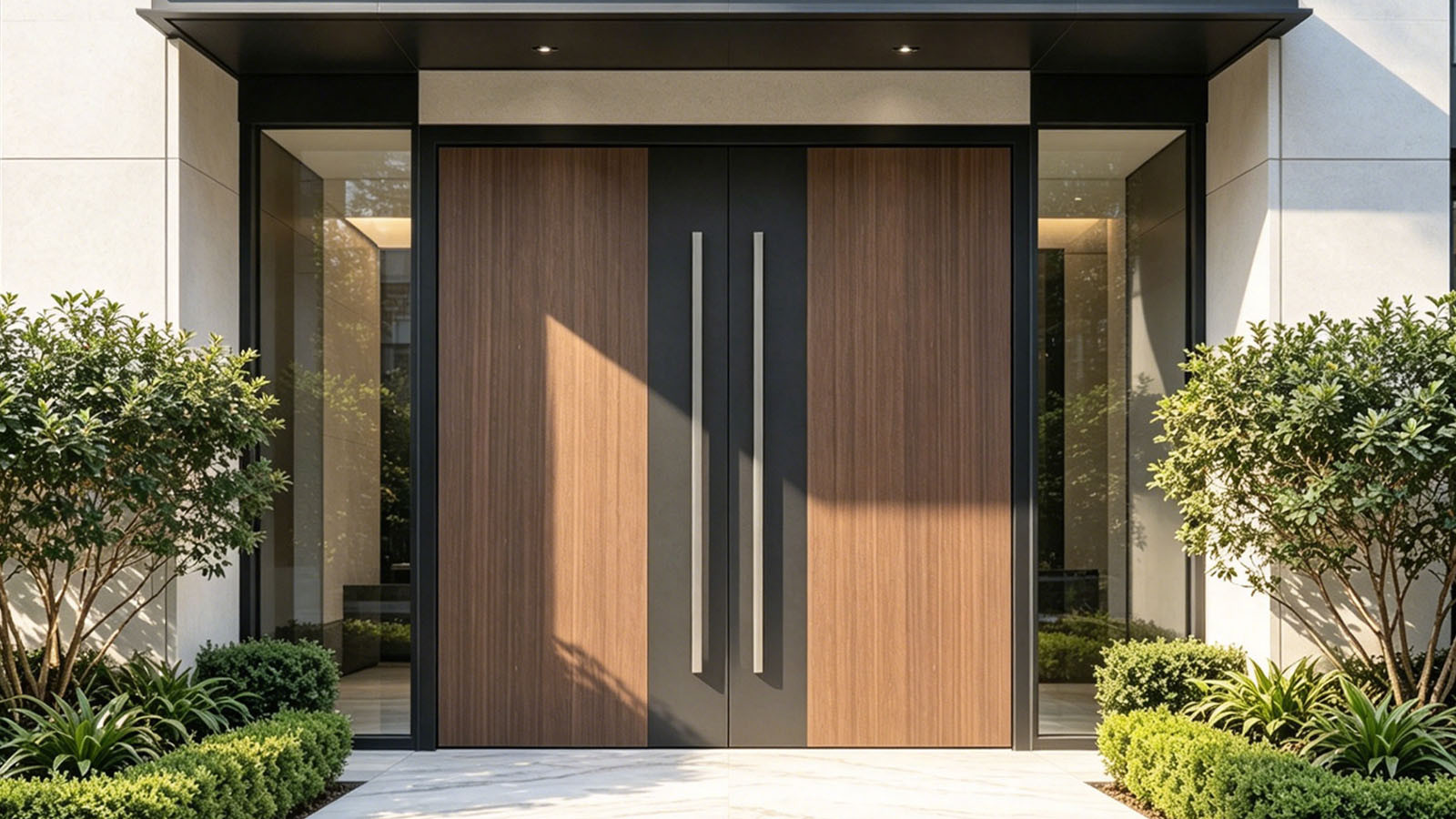

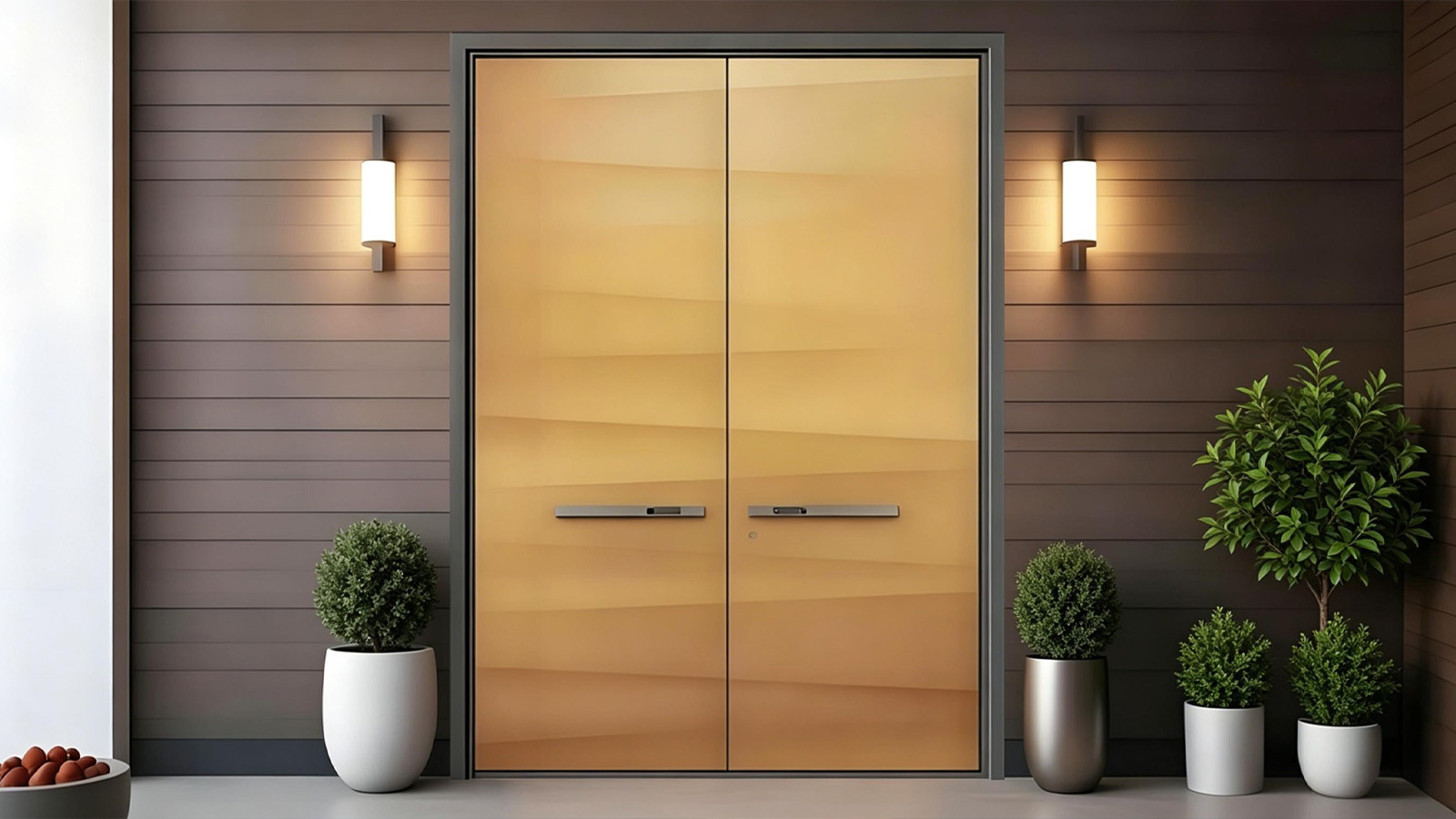

| Item | Security Armor Door | Stainless Steel Door | Galvanized Steel Door | ||
|---|---|---|---|---|---|
| Appearance Preview |  |  |  | ||
| Material Part | |||||
| Panel Material | The front panel is 3.0mm thick, and the back panel is 2.0mm aluminum plate; the frame is a 3.0mm aluminum frame, suitable for walls up to 120mm thick (the mold determines the thickness; for thicker walls, stainless steel or aluminum plates need to be spliced). | The front panel is 3.0mm thick, the back panel is 1.0mm thick stainless steel, and the default is 201 stainless steel; the frame is 1.2mm thick stainless steel. | 304 stainless steel has better toughness, better corrosion resistance, better processing performance, and stronger high-temperature resistance. | 201 stainless steel has high hardness but poor toughness. | Zinc alloy material, 1.2mm thick (for door leaf and frame). |
| Internal Filling | 1.0mm stainless steel inner liner, with internal use of all-aluminum honeycomb/insulation material/nano honeycomb, and an internal 2.0mm steel frame. | 1.0 Stainless steel inner liner with flame-retardant polyurethane/all-aluminum honeycomb/insulation material/nano honeycomb. | Optional materials: flame-retardant polyurethane, aluminum honeycomb, fireproof rock wool. | Optional materials: flame-retardant polyurethane, aluminum honeycomb, fireproof rock wool. | |
| Technology | European (Italian/German) technology, emphasizing "armor systems". | Traditional aluminum door manufacturing process, no armor concept. |
| One-piece molding process. | |
| Hardware Part | |||||
| Lock Body | 24mm wide stop plate, German-style all-steel integrated lock, safer, more beautiful, high-end, durable, and equipped with smart lock for energy saving. | 35mm wide integrated lock. | 35mm wide integrated lock. | 35mm wide integrated lock. | |
| Hinge | Optional: Exposed hinge; Heavy-duty concealed hinge. | Optional: Exposed hinge; Exposed hinge with concealed mounting. | Optional: Exposed hinges, concealed adhesive, exposed hinges with concealed mounting. | Optional: Exposed hinges, concealed adhesive, exposed hinges with concealed mounting. | |
| Adhesive Strips | EPDM rubber strips. | EPDM rubber strips. | EPDM rubber strips. | ||
| Door Leaf Thickness | 100mm (Standard). | 75mm; 90mm (Conventional). | 75mm; 90mm (Conventional). | ||
| Production Technology | |||||
| Finishing | High-temperature artistic paint (temperatures exceeding 200 degrees Celsius, no need to worry about color fading under sunlight). | Painted panels: Fluorocarbon baking paint core process. | High-temperature artistic paint (temperatures exceeding 200 degrees Celsius, no need to worry about color fading under sunlight). | ||
| Wire Cutting | Aluminum sheets thicker than 2mm can all undergo the planing process. | Stainless steel sheets thicker than 1.2mm can all undergo the planing process. | Galvanized steel sheets thicker than 1.2mm can all undergo the planing process. | ||
| Steel-plated Aluminum | / | The standard aluminum sheet thickness is 4mm (6mm is optional, but the cost is slightly higher). | / | ||
| Splicing | / (The board itself can be made in different colors and styles, so there is no need to splice it.) | Yes | / | ||
| Engraving | Aluminum plates thicker than 3mm can be engraved. | Simple lines (horizontal/vertical) can be engraved. | Simple lines (horizontal/vertical) can be engraved. | ||
| Flat Design | 2-10mm are the main types. | 1.0mm thickness. | 1.2mm thickness. | ||
| Edge Sealing | Armor technology. | Korean-style process. | Korean-style process. | ||
| Glass | The fixed parts on both sides can be fitted with glass, but the door itself should not be fitted with glass. | Yes, support. | Yes, support. | ||
| Glass Specifications | It's possible with glass, but rarely done, because aluminum sheets can be carved into many different designs, making them far more sophisticated, safe, and aesthetically pleasing than glass. |
| |||
| Size and Parameters | |||||
| Frame Thickness | 1.2mm/3mm aluminum. | 1.2mm. | 1.2mm. | ||
| Single Door Leaf Maximum Size | H4000mm*W1800mm (H157.48" * W70.86"). | H3000mm*W1080mm (H118.11" * W42.52"). | H3000mm*W1080mm (H118.11" * W42.52"). | ||
| Advantages |
|
| Price is affordable, but there are fewer styles to choose from. It offers good value for money, but its corrosion resistance is slightly inferior. | ||
| Safety Features | Anti-theft, anti-pry, explosion-proof | Anti-theft, anti-pry | Basic protection | ||
Architectural Workflow Integration: Entrance System BIM & CAD Asset Readiness
We transform the metal forming process into an open technical ledger. We dynamically track every step of the process, from flexible sheet metal slitting and multi-axis CNC bending to compliance before shipment, turning the manufacturing capabilities of major manufacturers into a clear timeline for fulfillment.
Access Entrance Asset VaultsResource Library & Warranty: Dedicated Entrance Catalogs, Maintenance Specs, and 5-Year Structural Insurance

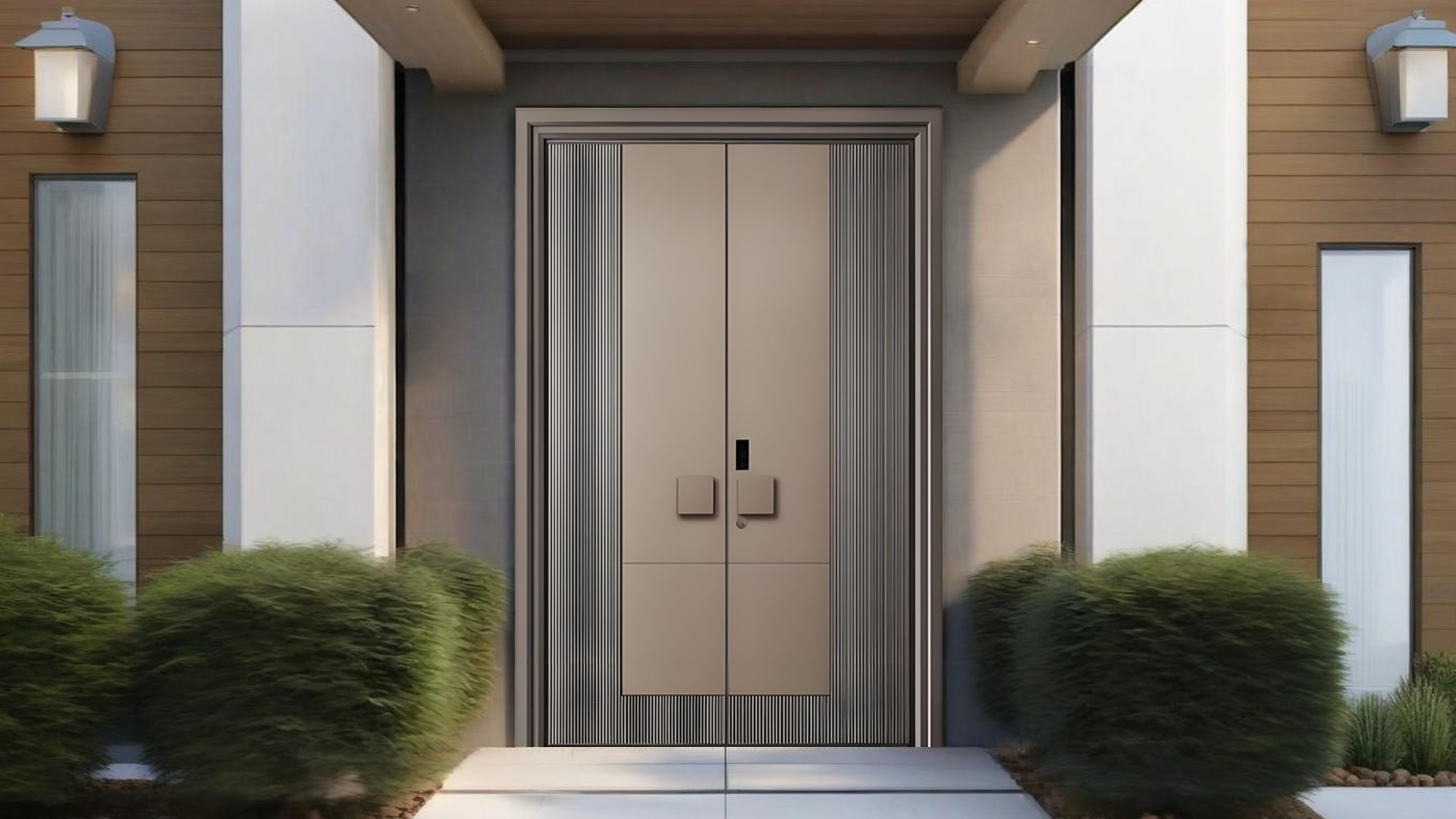

Industrial-grade Cast Aluminum Armored Door system
Crafted from select structural hardwood. High thermal-acoustic insulation, structural stability, and classic custom joinery details.

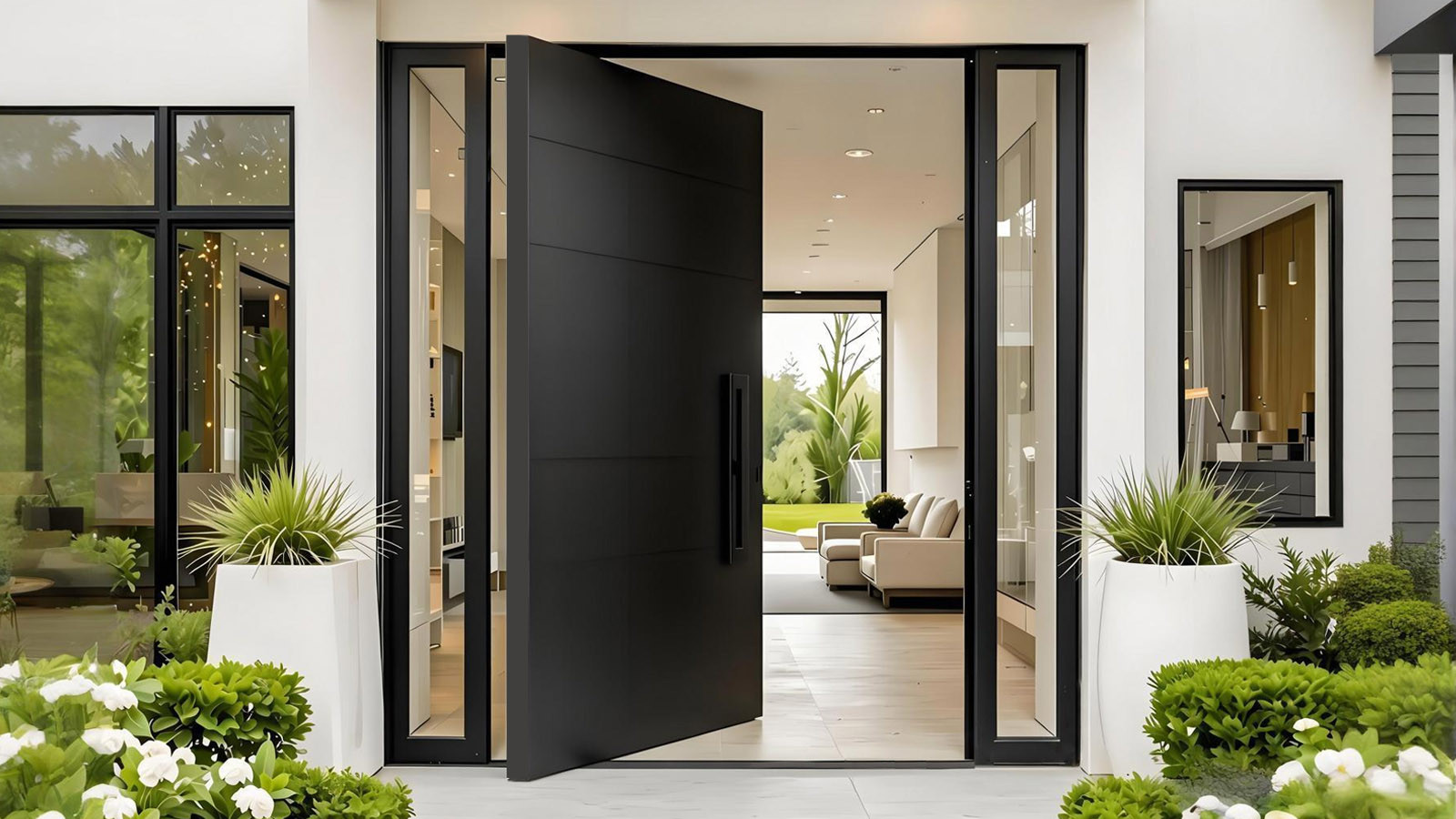

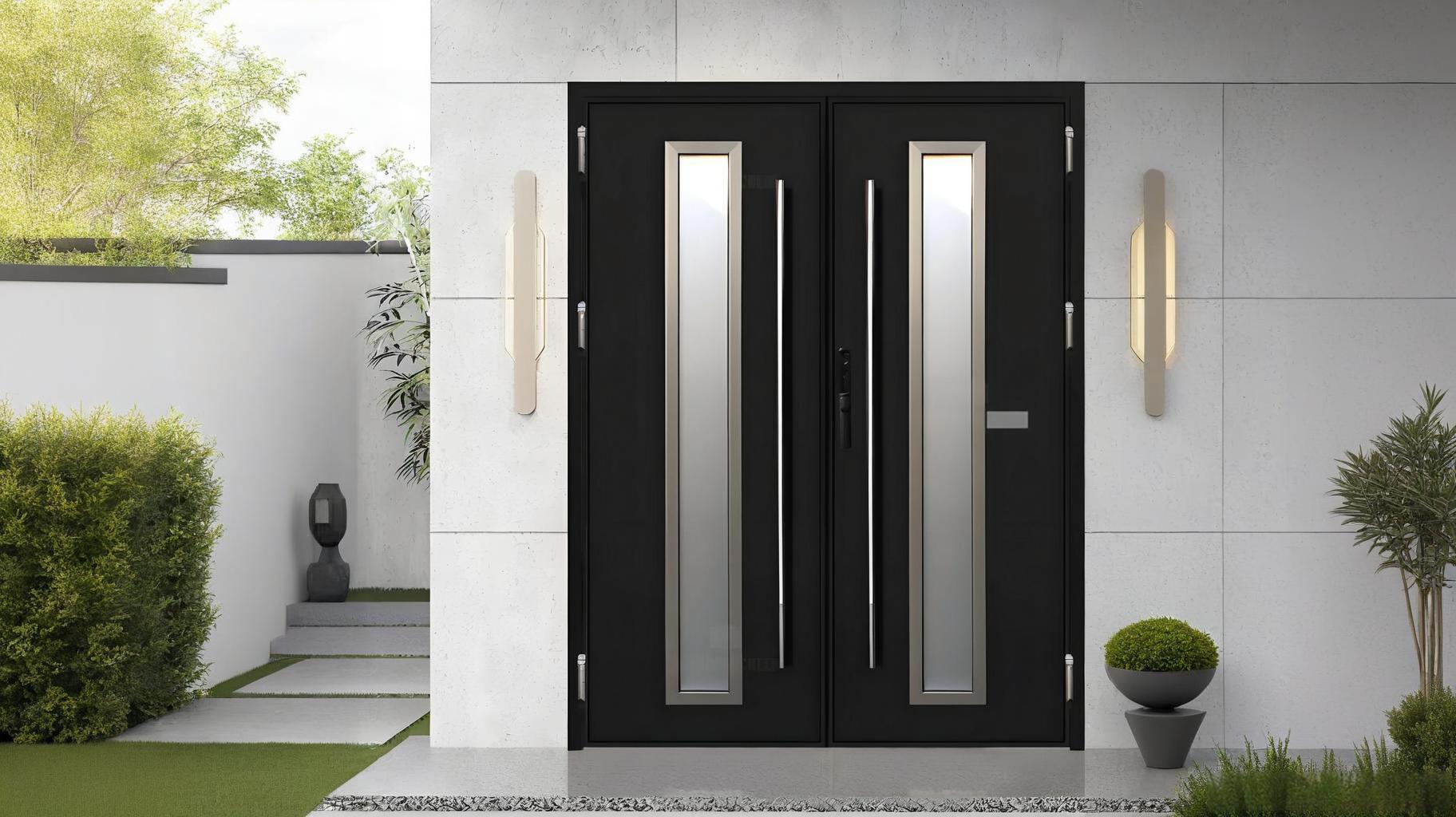

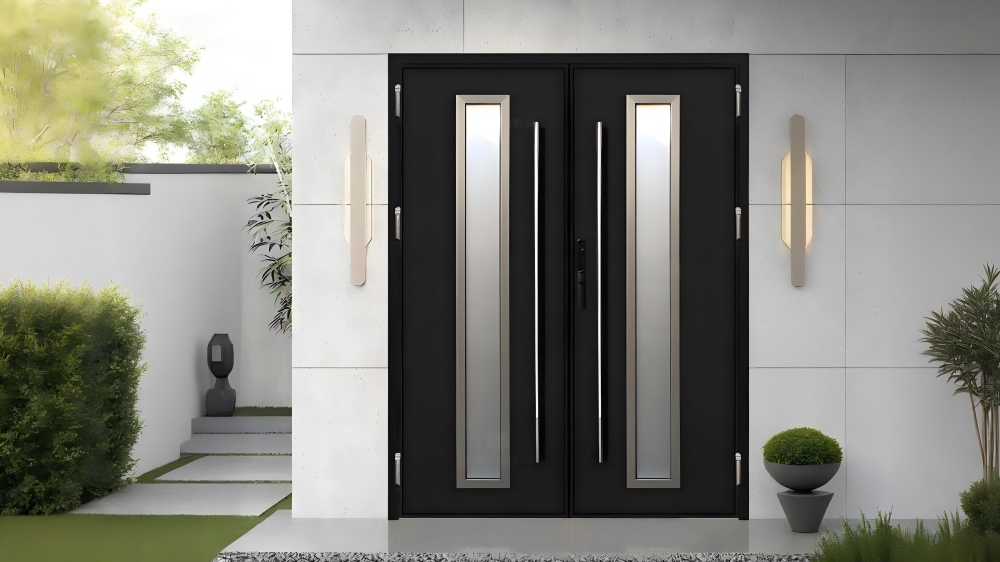

Stainless Steel Entrance Door System
Engineered multi-layer core with advanced polyurethane coatings. Ideal for modern commercial acoustic layouts and moisture-stable projects.

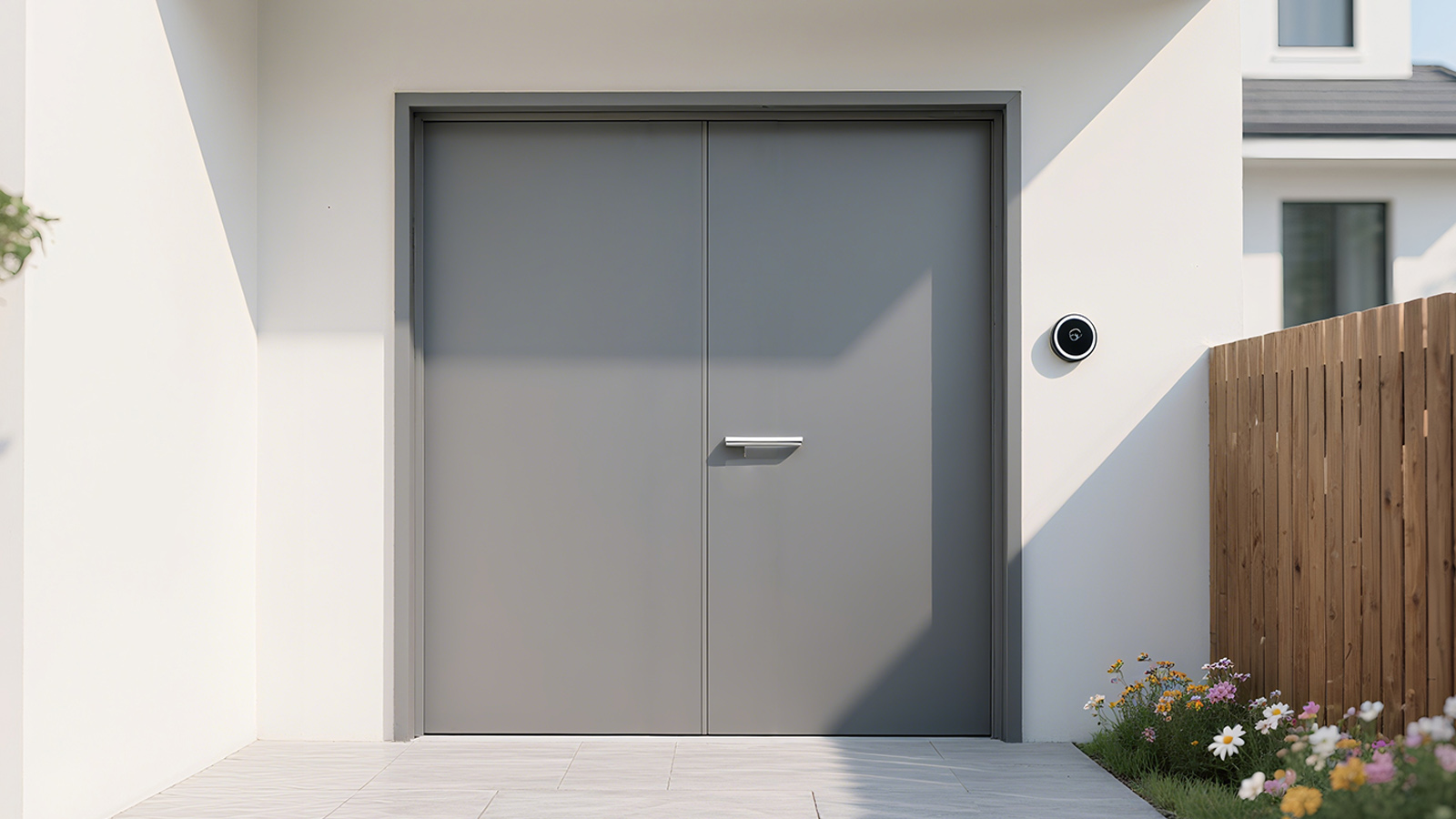

High-performance Zinc Alloy Door System
Wrapped in high-durability polymer eco-veneers. Features zero VOC emissions, outstanding scratch resistance, and structural pricing efficiency.
FAQ: Entrance Size Thresholds, Hardware Cycle Fatigue, and Compliance
- How do the oversized glass windows on your doors withstand extreme wind loads in coastal projects?Jun 15,2026Our oversized glass lites utilize multi-layer laminated insulated tempered safety glass sealed with heavy-duty energy-absorbing compounds. The steel glazing beads are multi-point mechanically fastened via CNC lock-rivets, achieving full structural wind-load compliance for typhoon-prone coastal territories.
- Can your heavy-duty multi-point security locks pass high-frequency cyclic durability audits?Jun 15,2026All multi-point steel locking components are sourced from international tier-1 hardware alliances. The mortise pockets are precision-milled via multi-axis CNC centers in a single pass, passing rigorous 100,000+ cyclic open-close durability verification passes to ensure perfect mechanical synchronization.
- What are the maximum custom sizes for your entrance portals, and how do you prevent sagging?Jun 15,2026Our steel and cast aluminum entrance doors support custom single-leaf heights up to 3000mm and widths up to 1200mm. To bear the immense load of heavy casings, we integrate inner reinforced structural steel frames coupled with 3D adjustable concealed hinges and heavy-duty anti-sagging bearing alignment pins to keep field settlement within 0.5mm.
