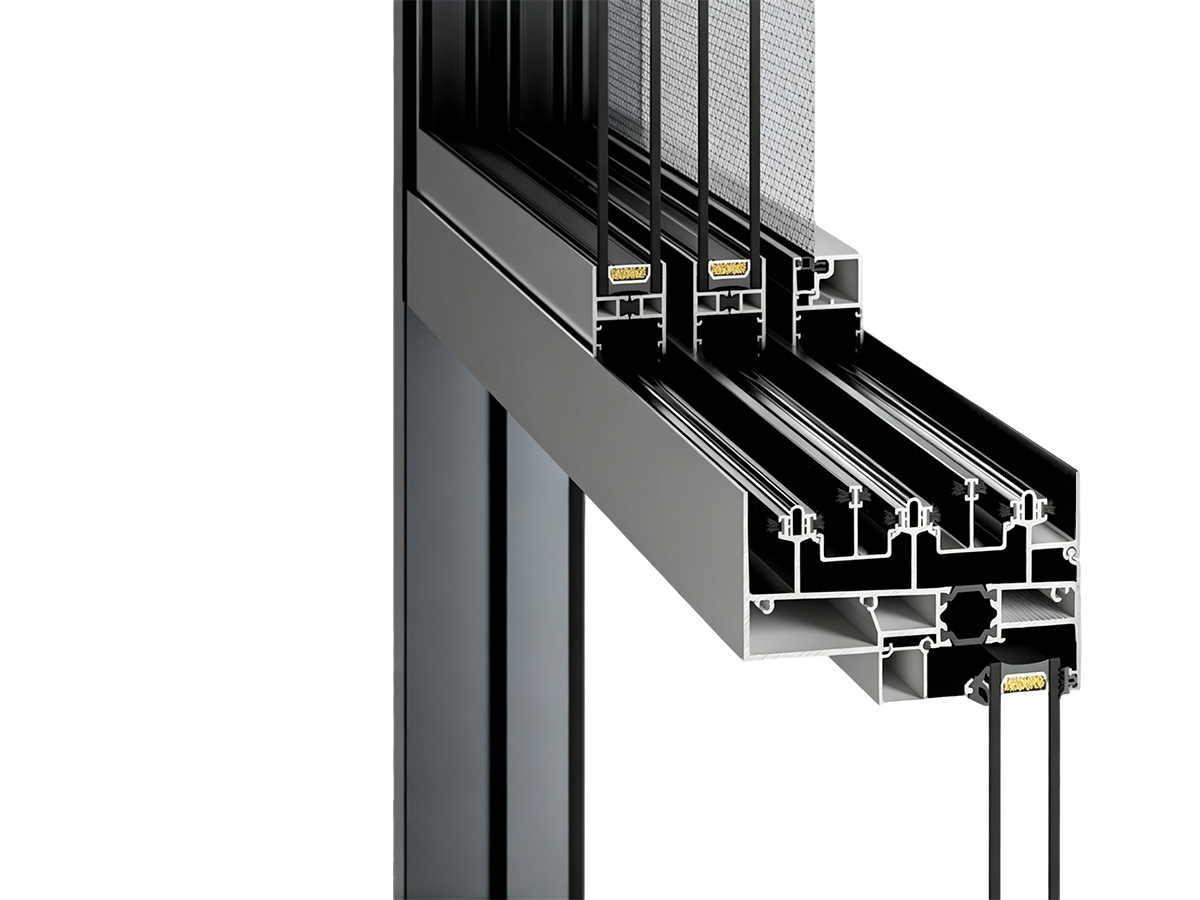

6063-T5 Alloy & 24mm Polyamide Breaks
Features 1.8mm-2.0mm profile walls and 24mm PA66GF25 strips, balancing daylighting with green energy codes for commercial developments.
Where Buildings Blossom With Confidence
High-Performance Aluminum Sliding Window Systems
Engineered for coastal high-rises and luxury resorts, our sliding systems integrate compression locking, multi-tier gaskets, and anti-derailment tracks to surpass legacy sealing limits.
Home / tilt & turn window systems
Class 8 Airtightness / 5mm Compression
Compression Locking & Airtightness Breakthrough
Employs a 5mm lateral translation locking mechanism with EPDM gaskets, achieving certified Class 8 airtightness via compression sealing.
Class 9 Wind Load / 5.0 kPa+
Anti-Derailment Engineering & Wind Load Resistance
Features 3.0mm heavy-duty sill tracks and anti-sway top guide wheels, withstanding 5.0kPa+ extreme typhoon wind pressures.
Storm Drainage / 500 Pa
Stepped Concealed Drainage & Anti-Backflow
Deploys stepped isobaric drainage channels with windproof baffles, preventing rain overflow under 500Pa storm water pressures.
Thermal Performance / K ≤ 1.6–2.0 W/m²K

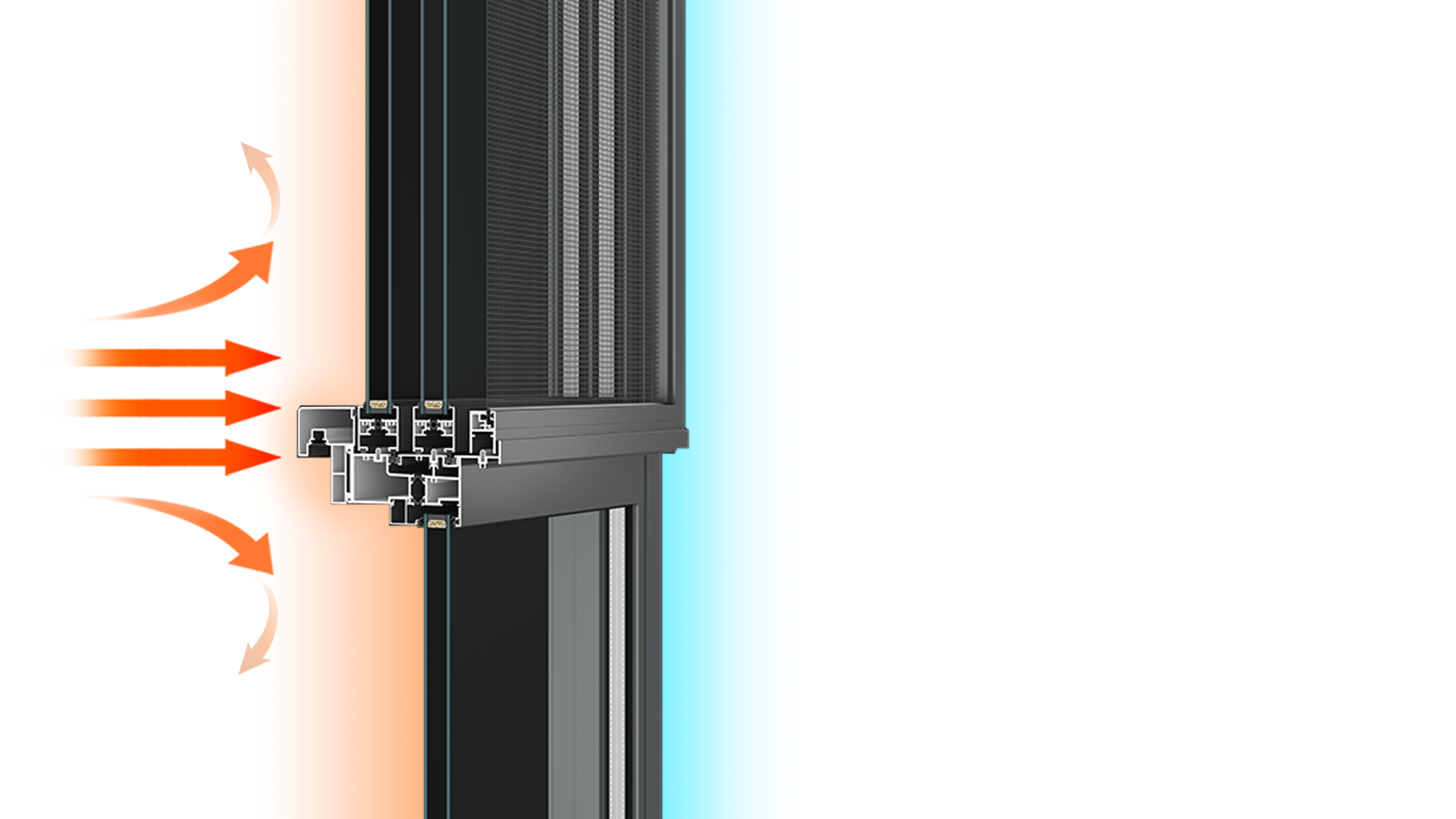

Multi-Cavity Thermal Break & Energy Efficiency
Utilizes 24mm-34mm PA66GF25 thermal strips to isolate convective heat transfer, reducing HVAC building loads with K ≤ 1.6-2.0 W/m²K.

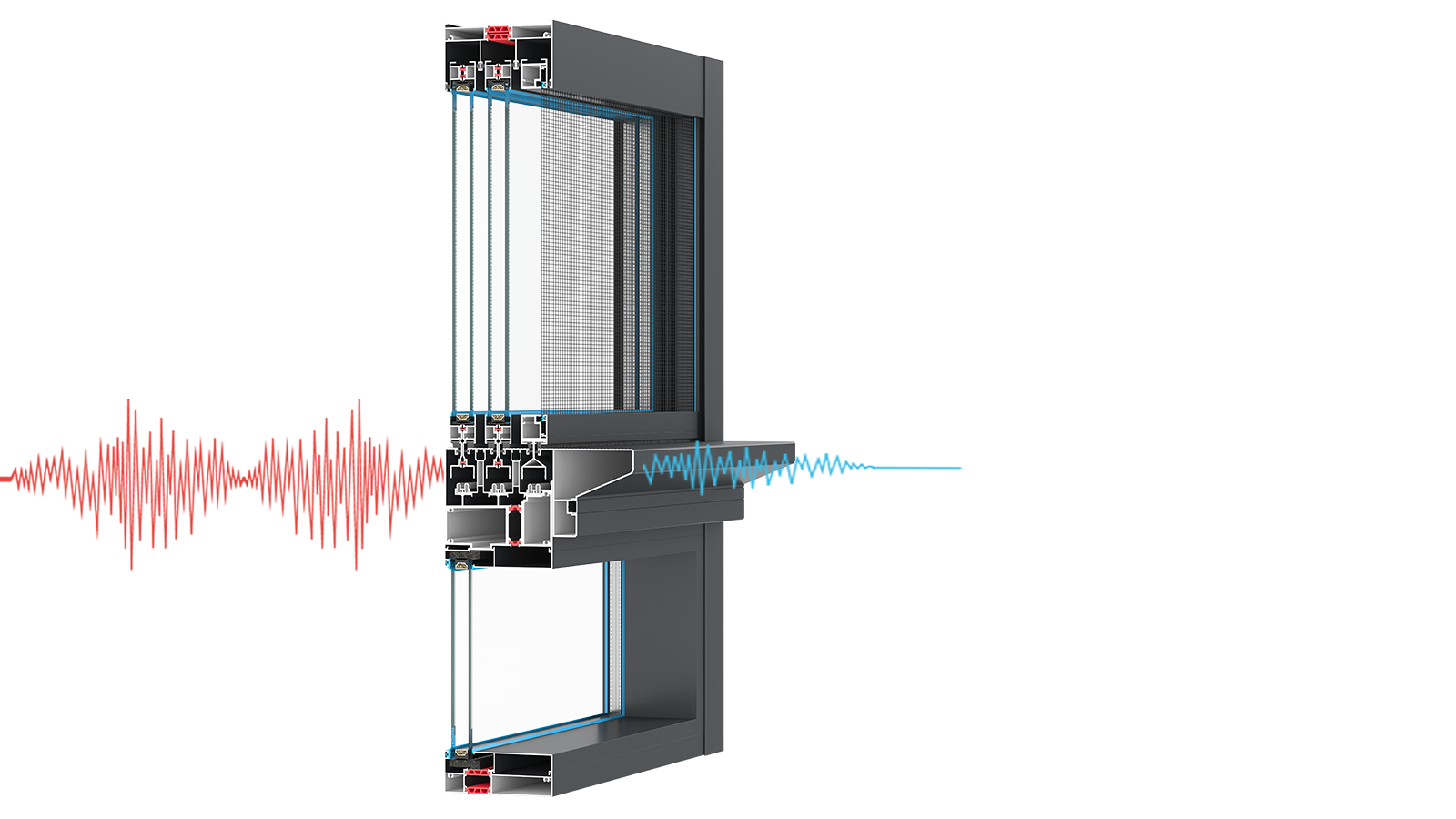

Acoustic Performance / 30–35 dB
Acoustic Damping & Noise Isolation
Couples siliconized weatherstrips and automotive EPDM seals with insulated glass to deliver 30-35dB acoustic attenuation.
High-Performance Aluminum Sliding Window Systems | BLOSSOM CHEER
Compare four commercial sliding systems engineered for compression sealing, typhoon resistance, panoramic spans, and tropical high-wind projects.

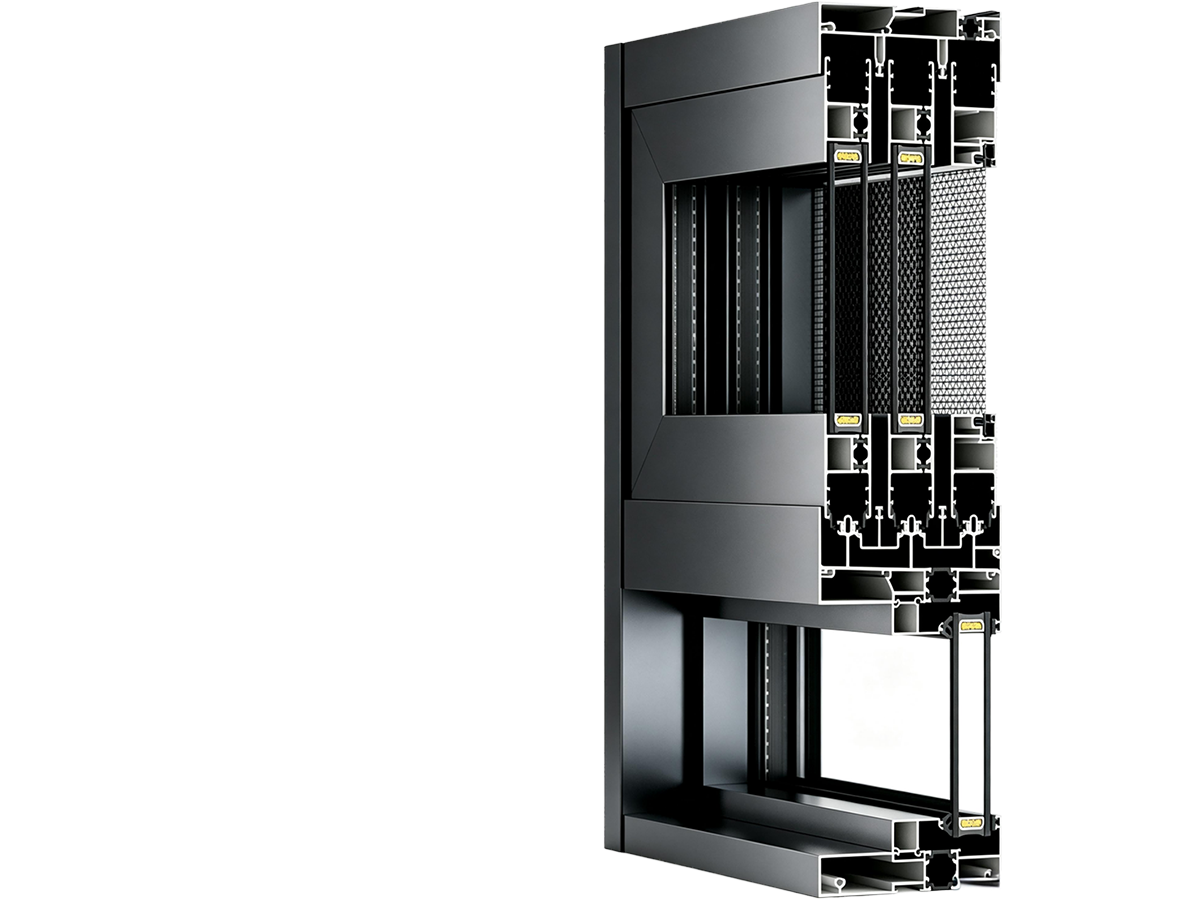

BC-S116/120 Commercial Compression Sliding System

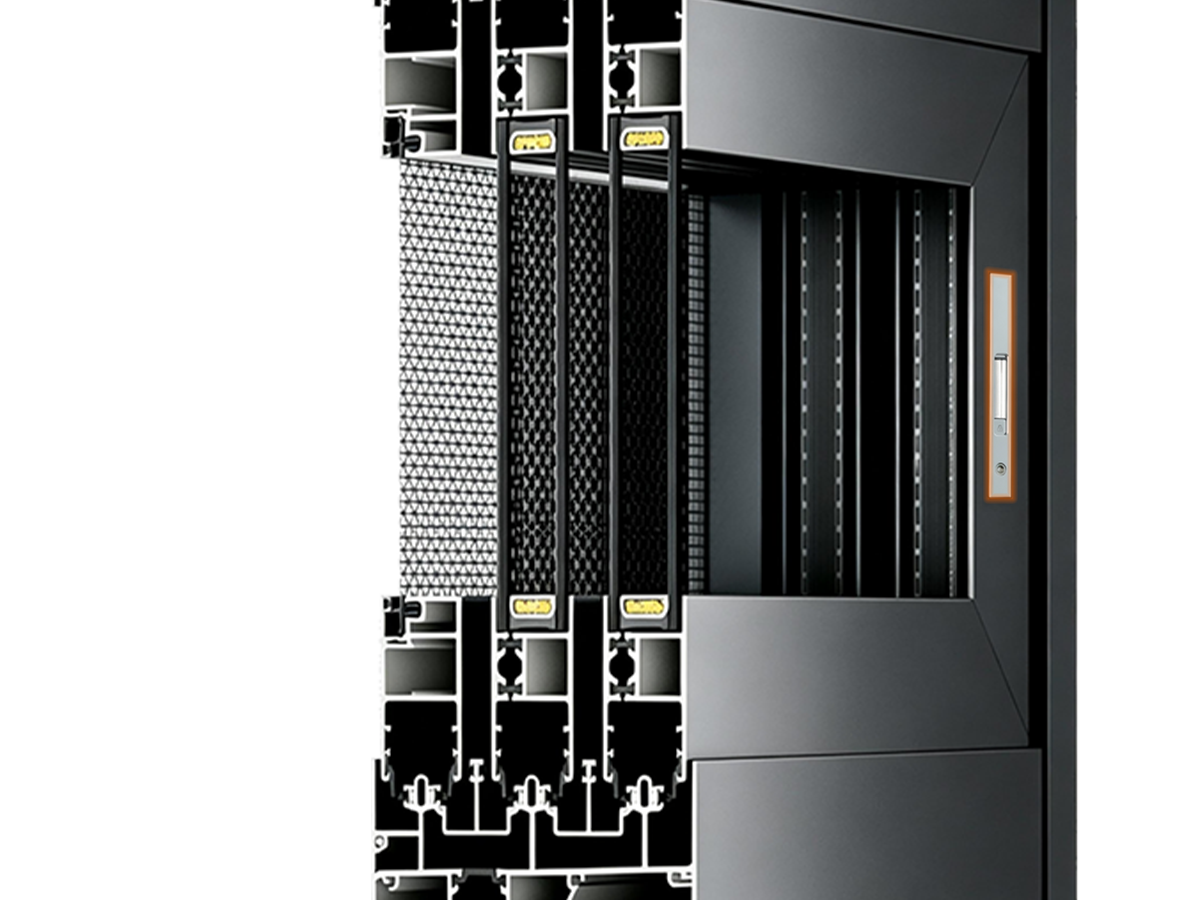

5mm Lateral Compression & Baseless Handles
Displaces sash laterally by 5mm to compress EPDM seals, paired with 30-degree mechanical damping handles for smooth locking.

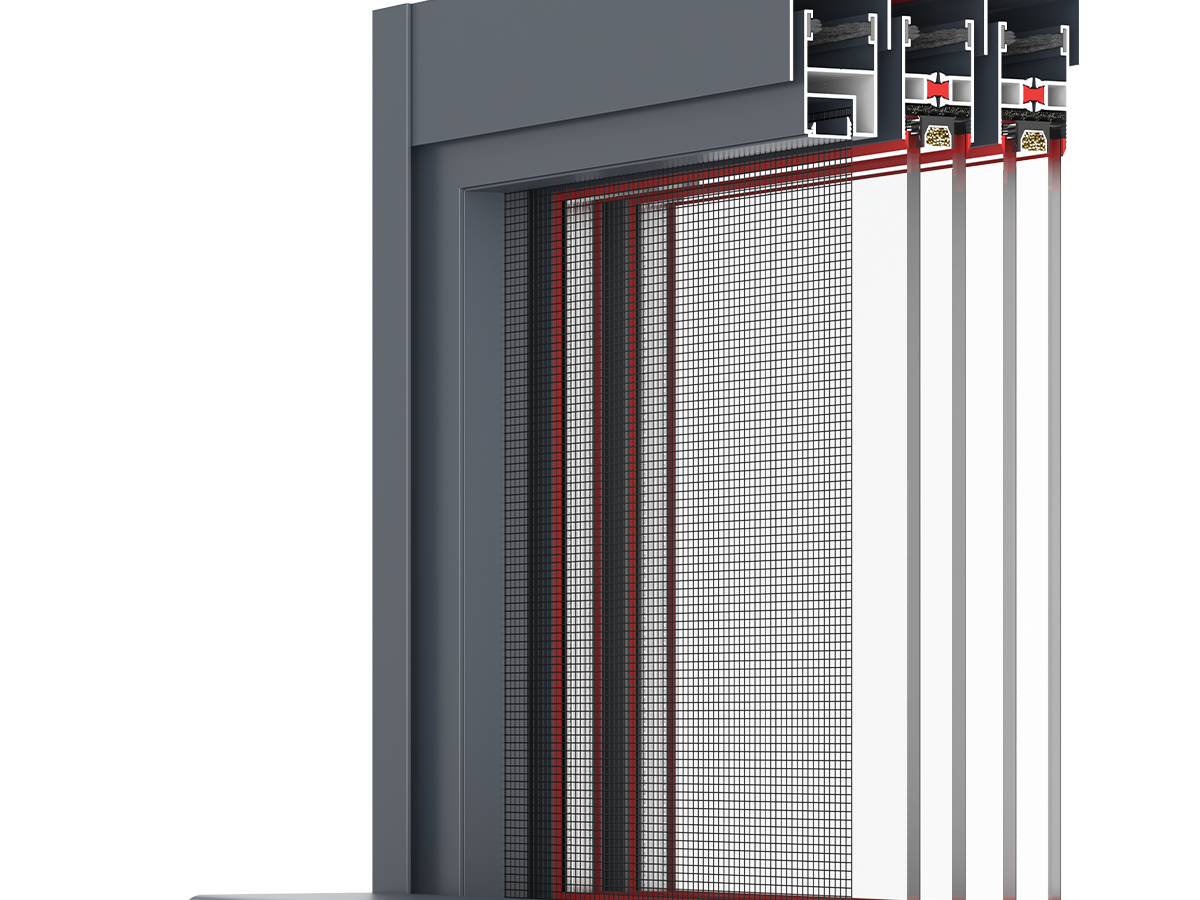

Integrated Glass Balustrades & Pleated Mesh
Combines concealed laminated glass guardrails with pleated insect screens, securing high-rise fall-prevention and clear sightlines.

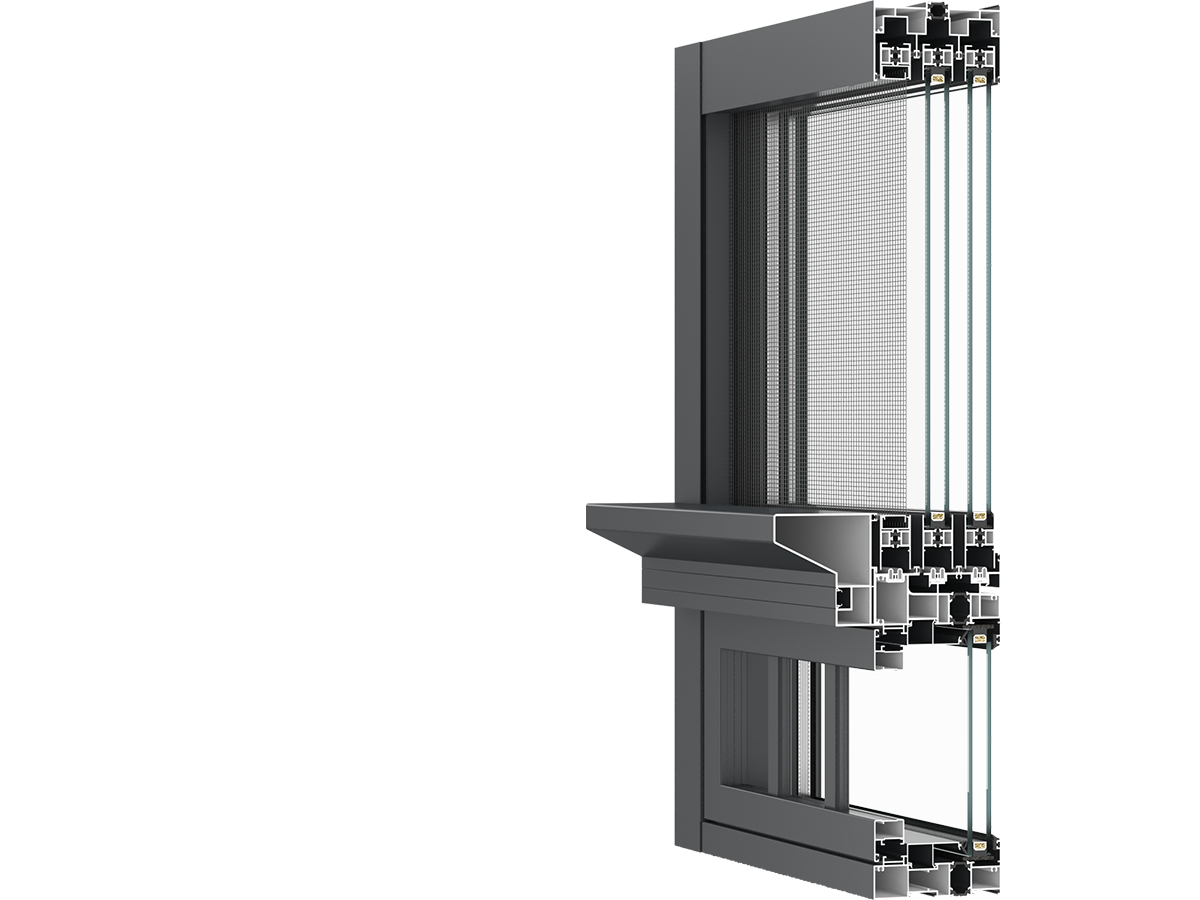

BC-S125/130 Heavy-Duty 6-Track Hurricane System

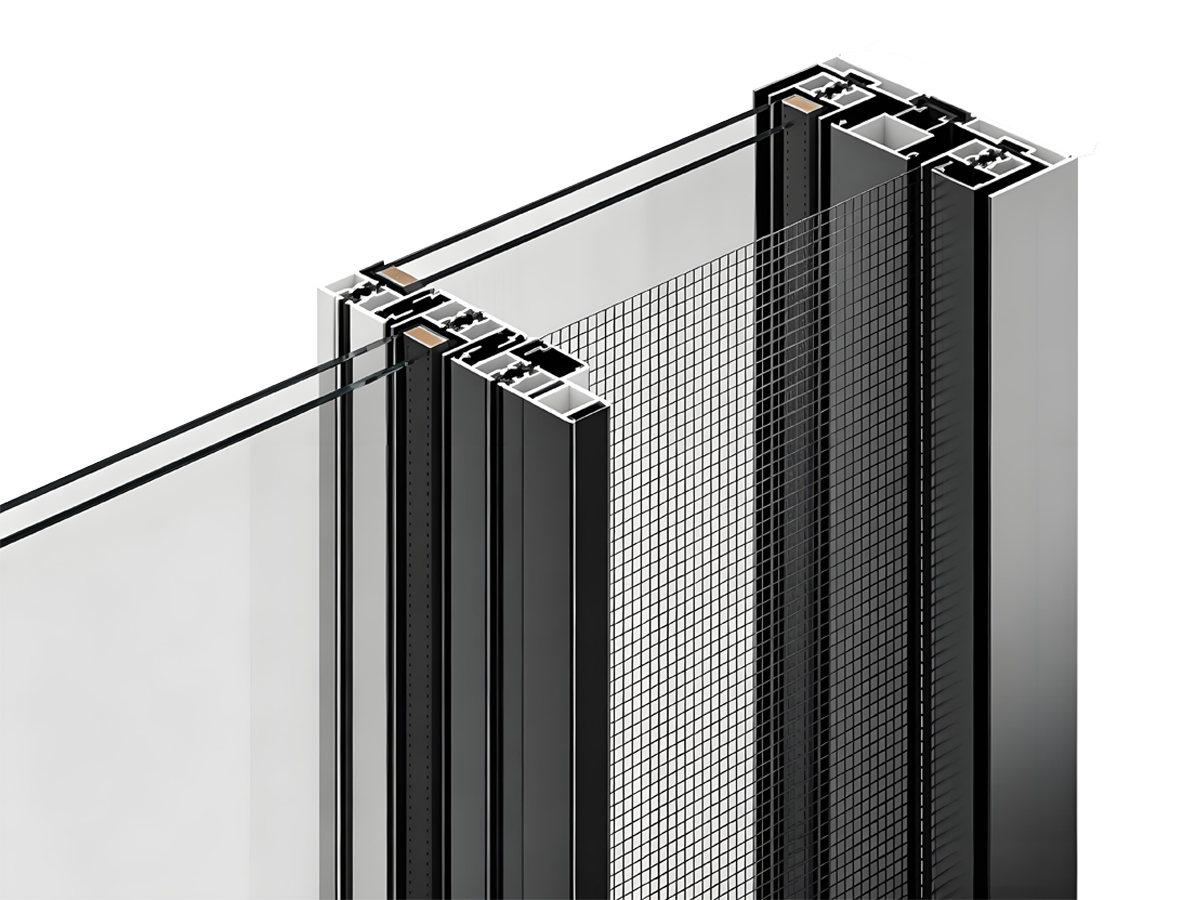

3.0mm Reinforced Sill & Embedded Frames
Features 3.0mm heavy sill walls and 130mm depths, resisting profile deflection under oversized panoramic glass deadloads.

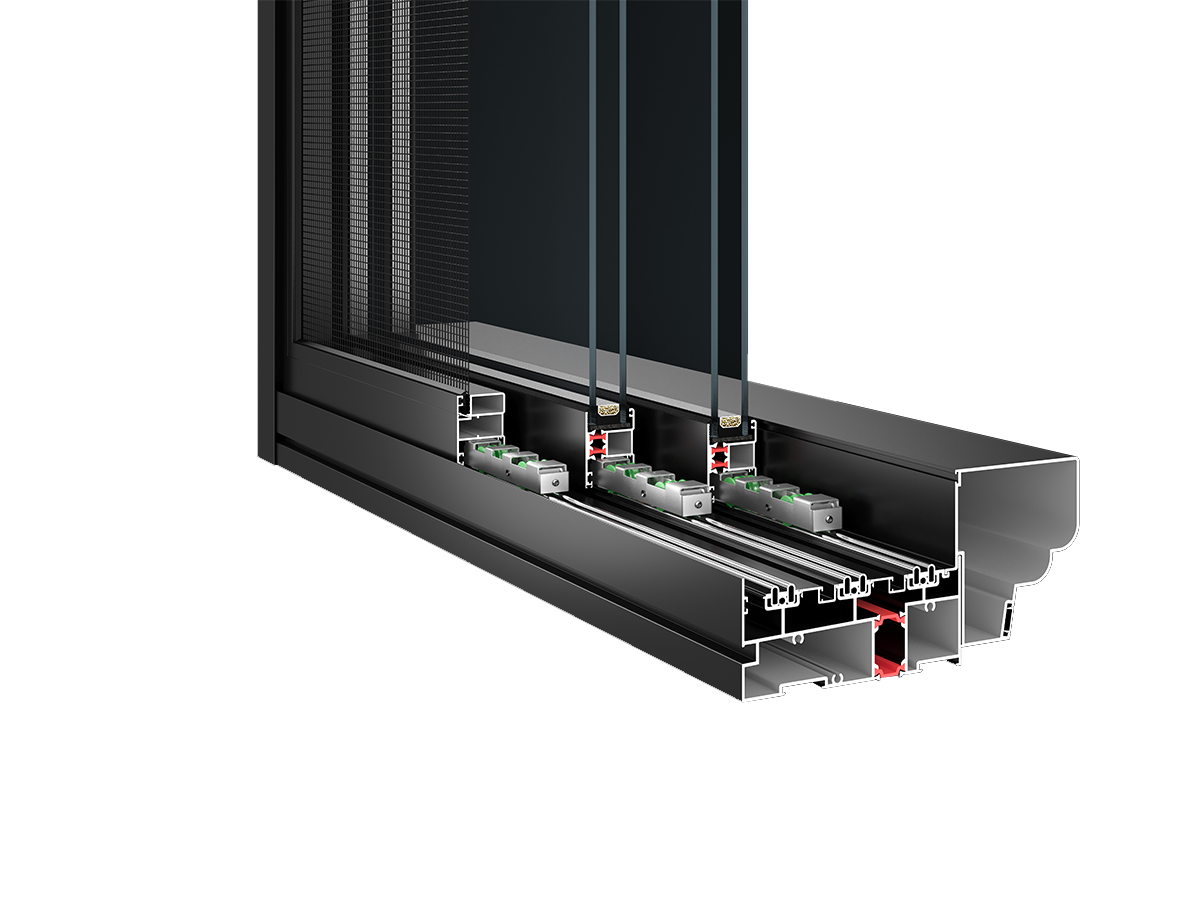

Steel Tandem Rollers & Stainless Steel Rails
Outfits tandem steel rollers rated for 160kg-300kg sash loads over stainless tracks, ensuring smooth glide and zero jump-off.

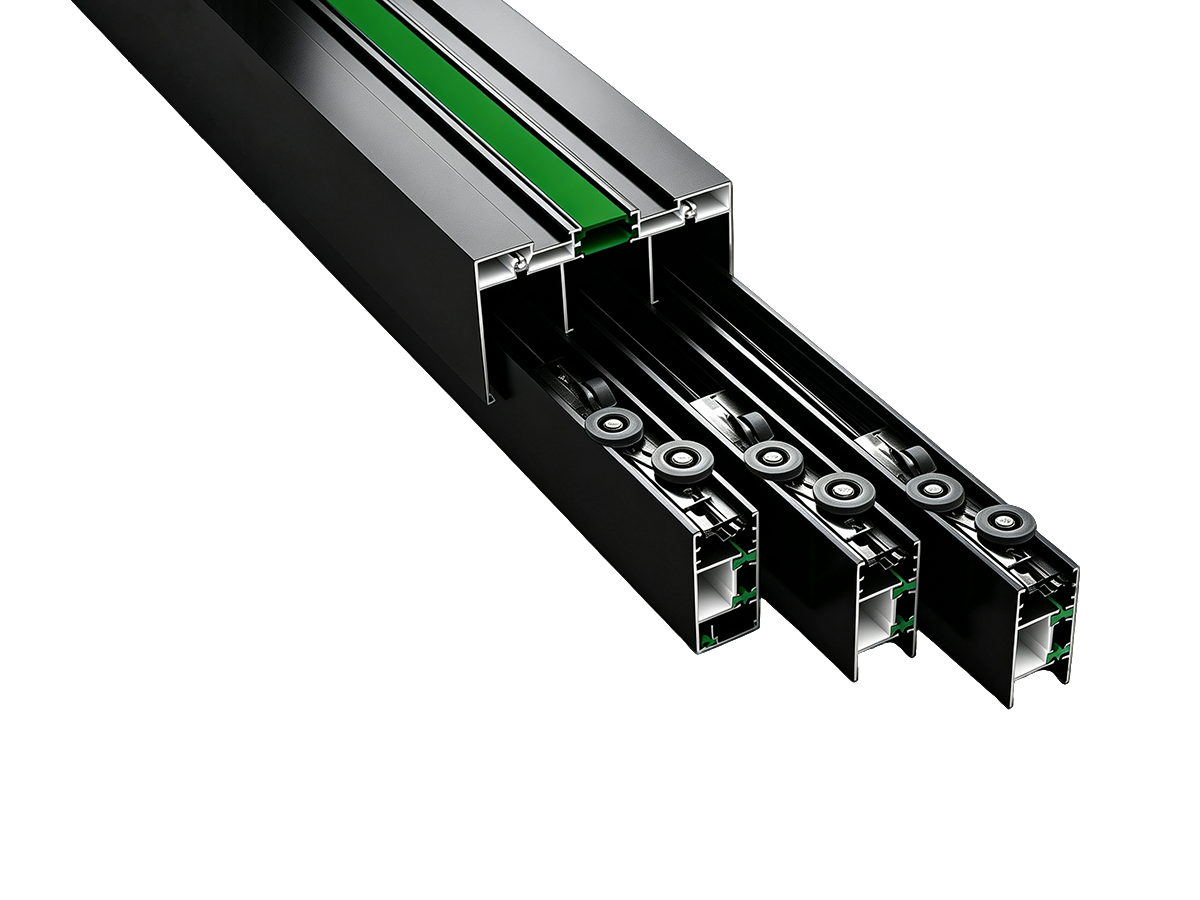

Top Anti-Sway Guide Wheels & Interlocking
Employs adjustable top anti-sway guide wheels and multi-point perimeter locks to prevent sash rattling during extreme coastal typhoons.

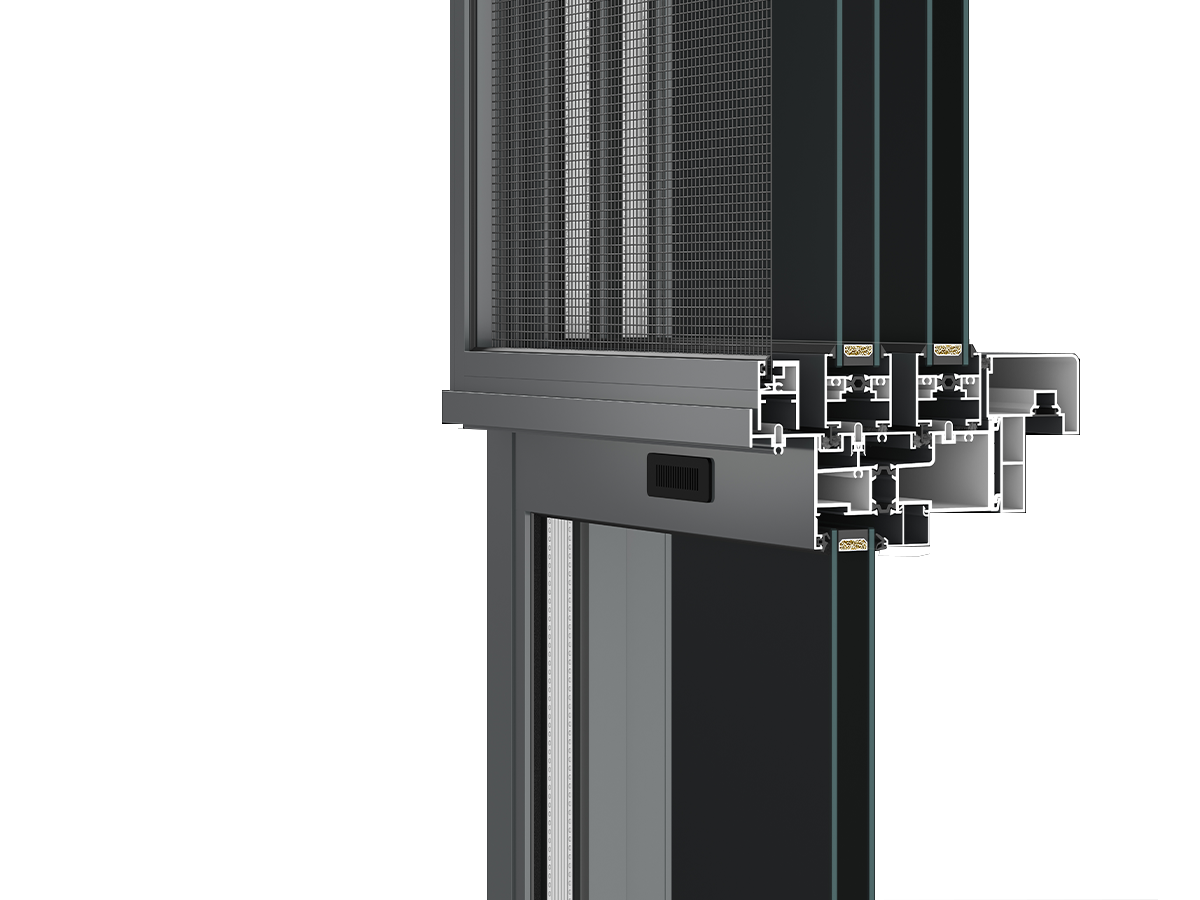

6-Tier Sealing & 5-Direction Isobaric Drains
Combines EPDM gaskets and siliconized weatherstrips (6 seal tiers) with stepped drains to evacuate stormwater under high pressures.

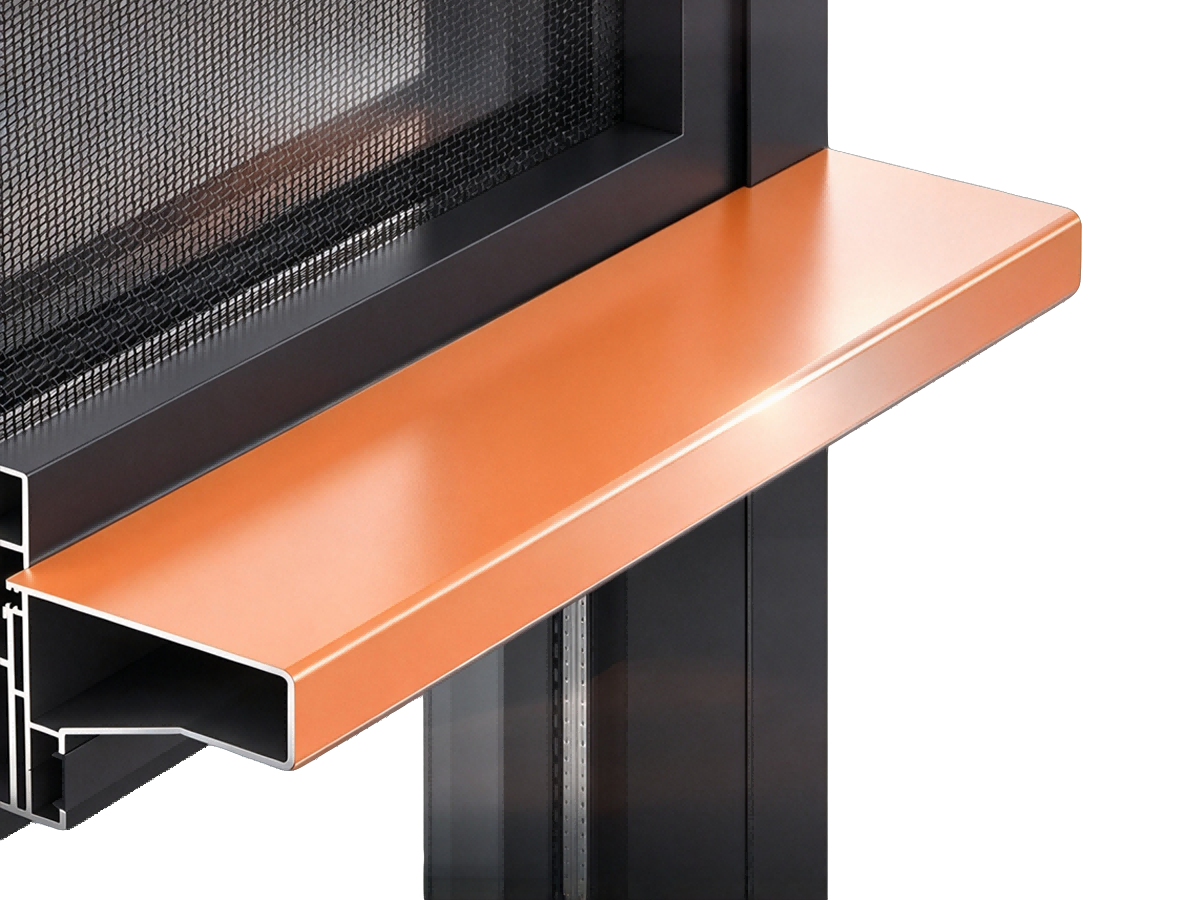

Widened Panoramic Handrail & Display Ledge
The extra-wide, high-strength handrail creates a stable grip while doubling as a convenient ledge for small objects—bringing safety and everyday utility to the panoramic view.

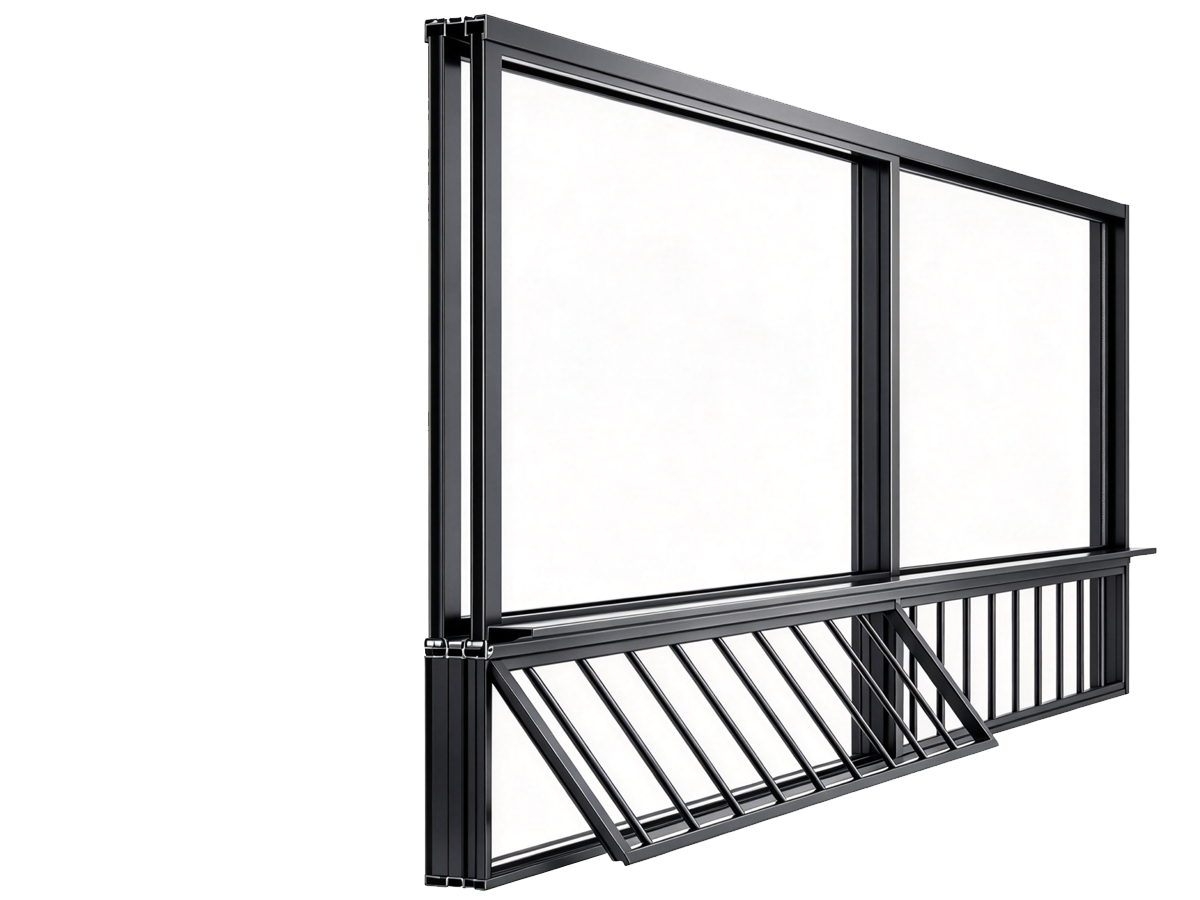

Openable Protective Guardrail & Drying Rack
The lower guardrail can be specified with an inward-opening section: keep it closed for added protection, or open it to create a practical clothes-drying rack.

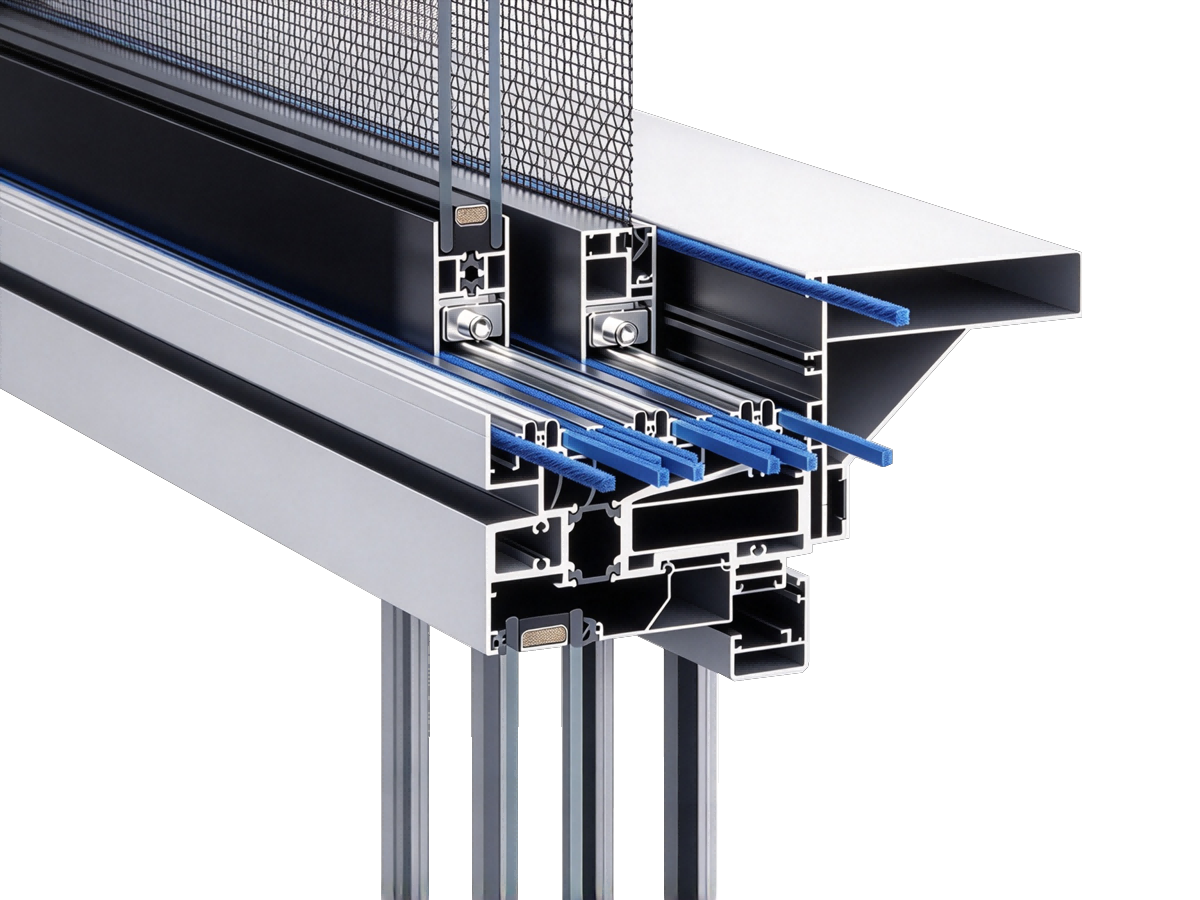

Multi-Layer High-Density Weatherstrips
Closely fitted, high-density weatherstrips guard every joint against wind, rain, and noise while improving the window's overall sealing, acoustic, and thermal performance.

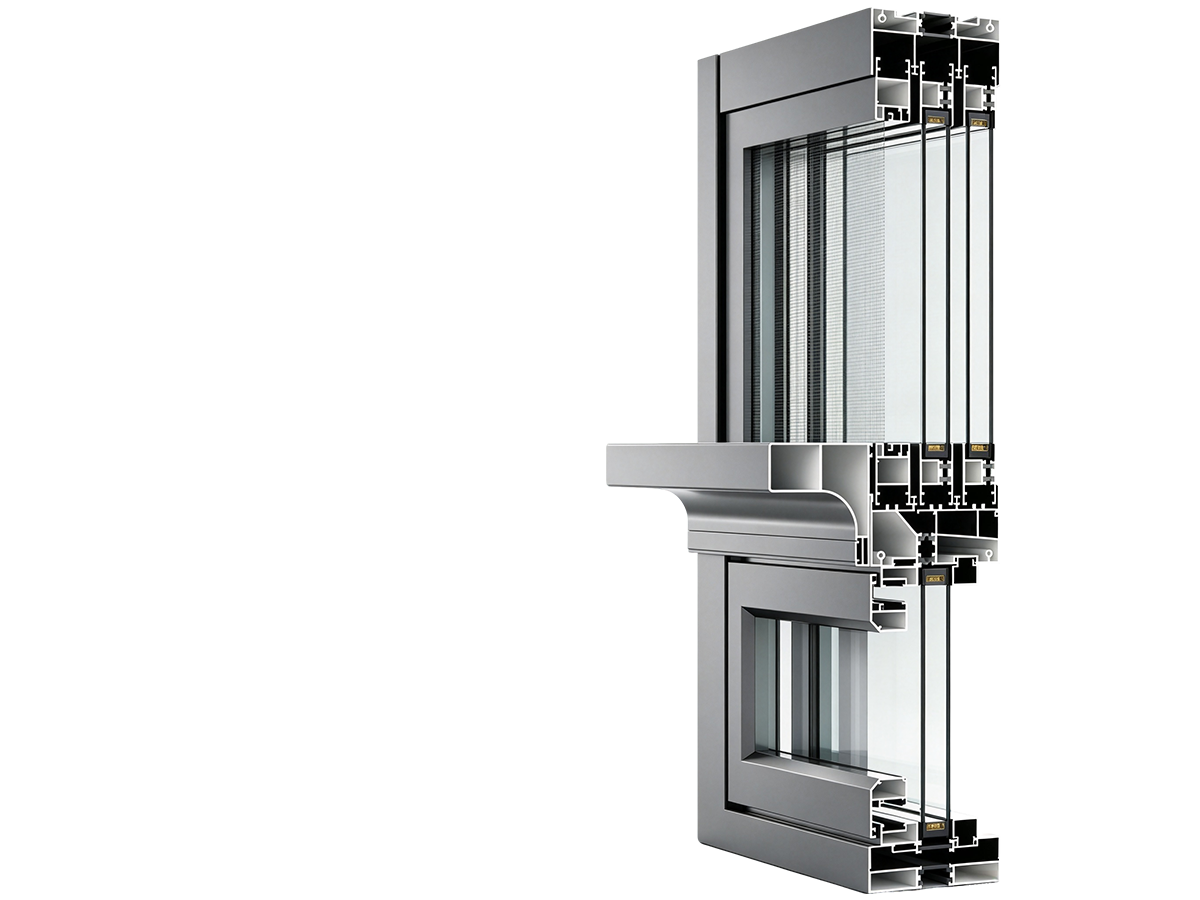

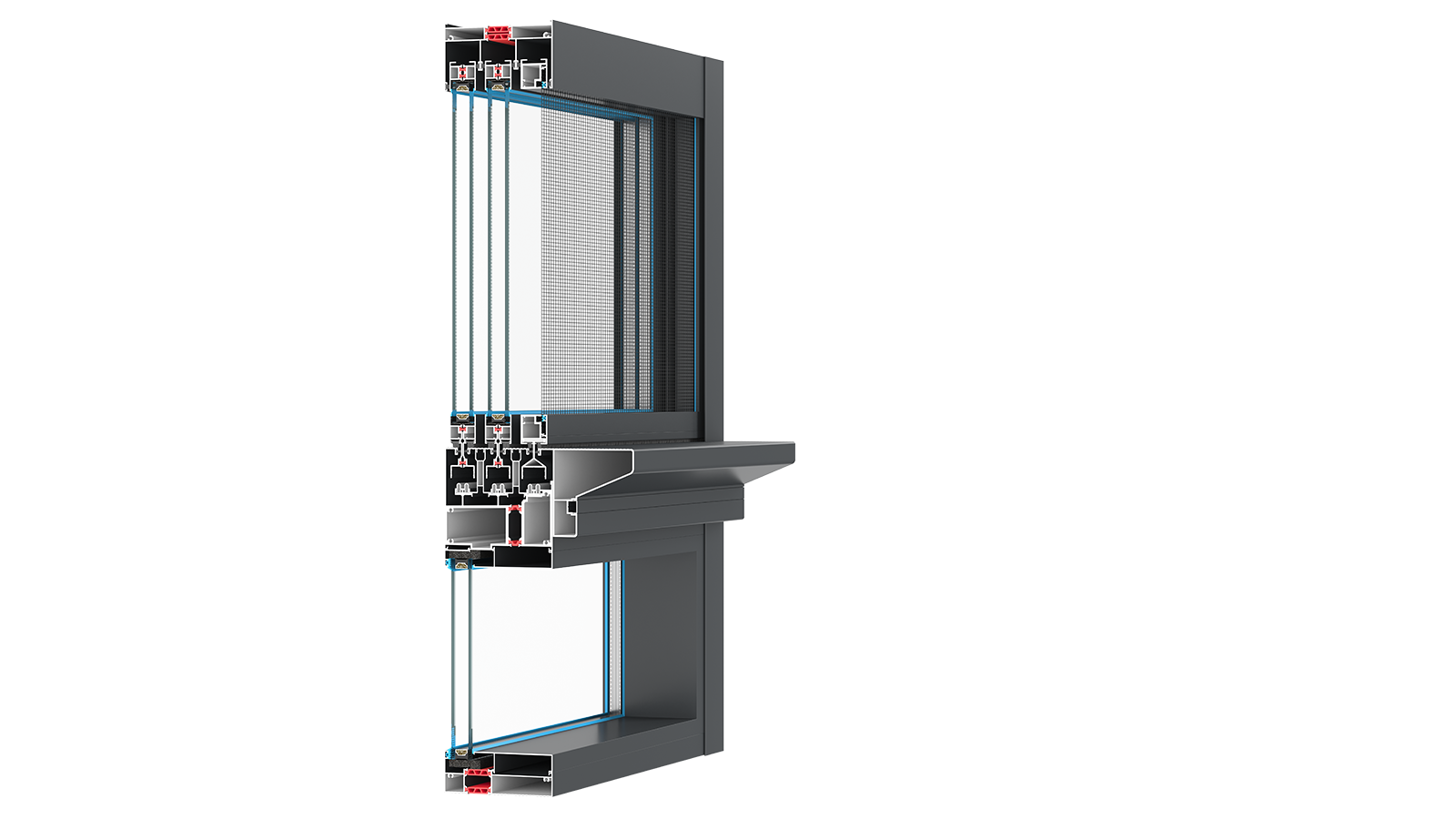

BC110 Six-Track Panoramic Thermal-Break Sliding Window

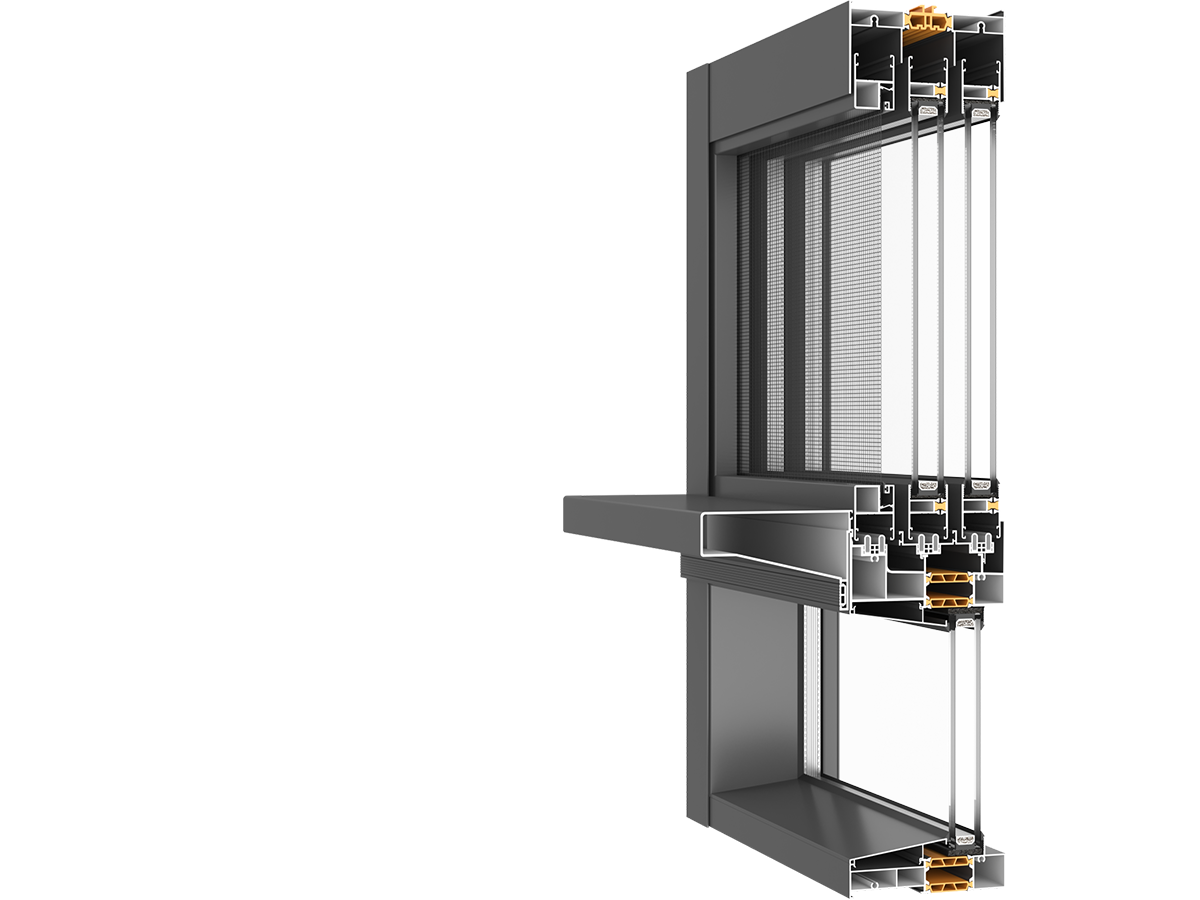

BC-MS100/120 Tropical Monobloc High-Wind System

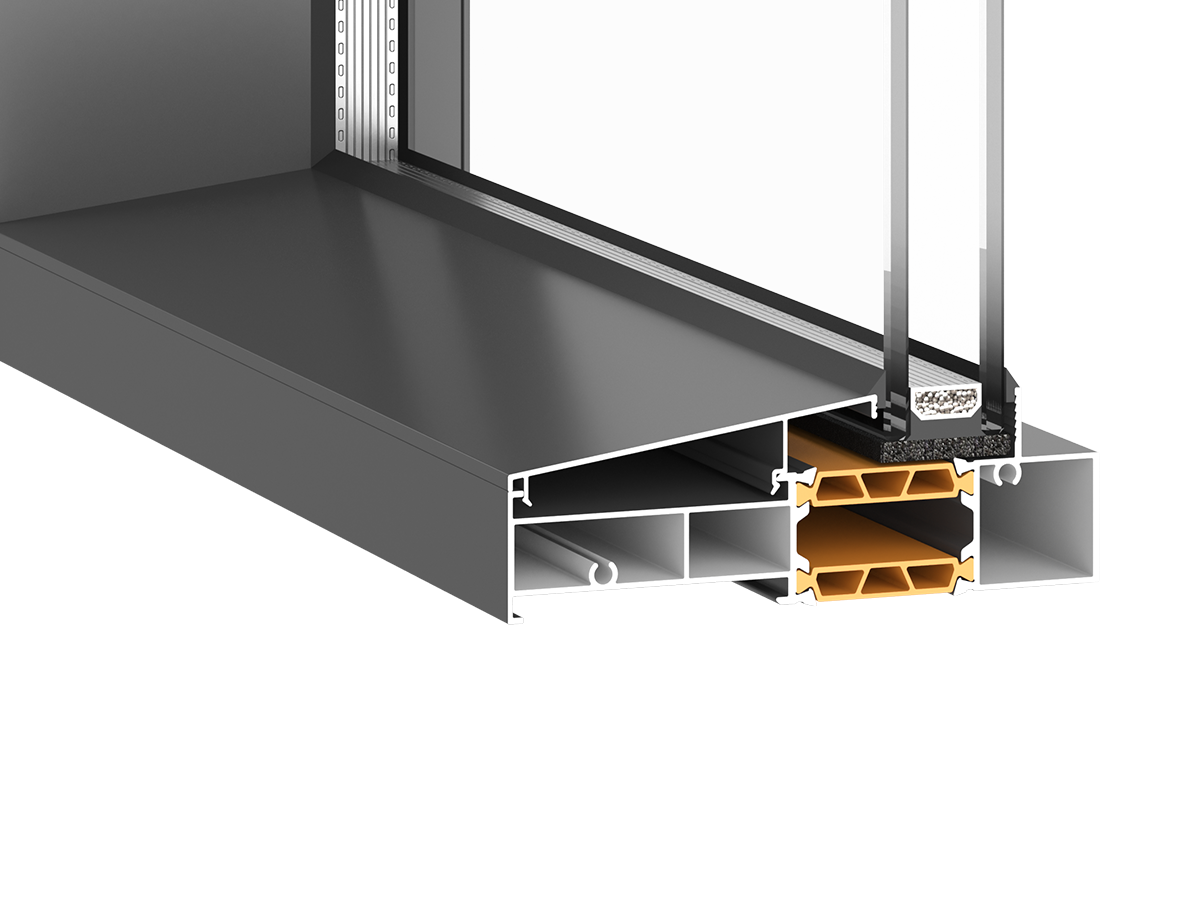

Monobloc Extruded High-Shear Integrity
Eliminates thermal strips with solid aluminum profiles, eliminating mechanical weak points to boost torsional and shear resistance by 25%.

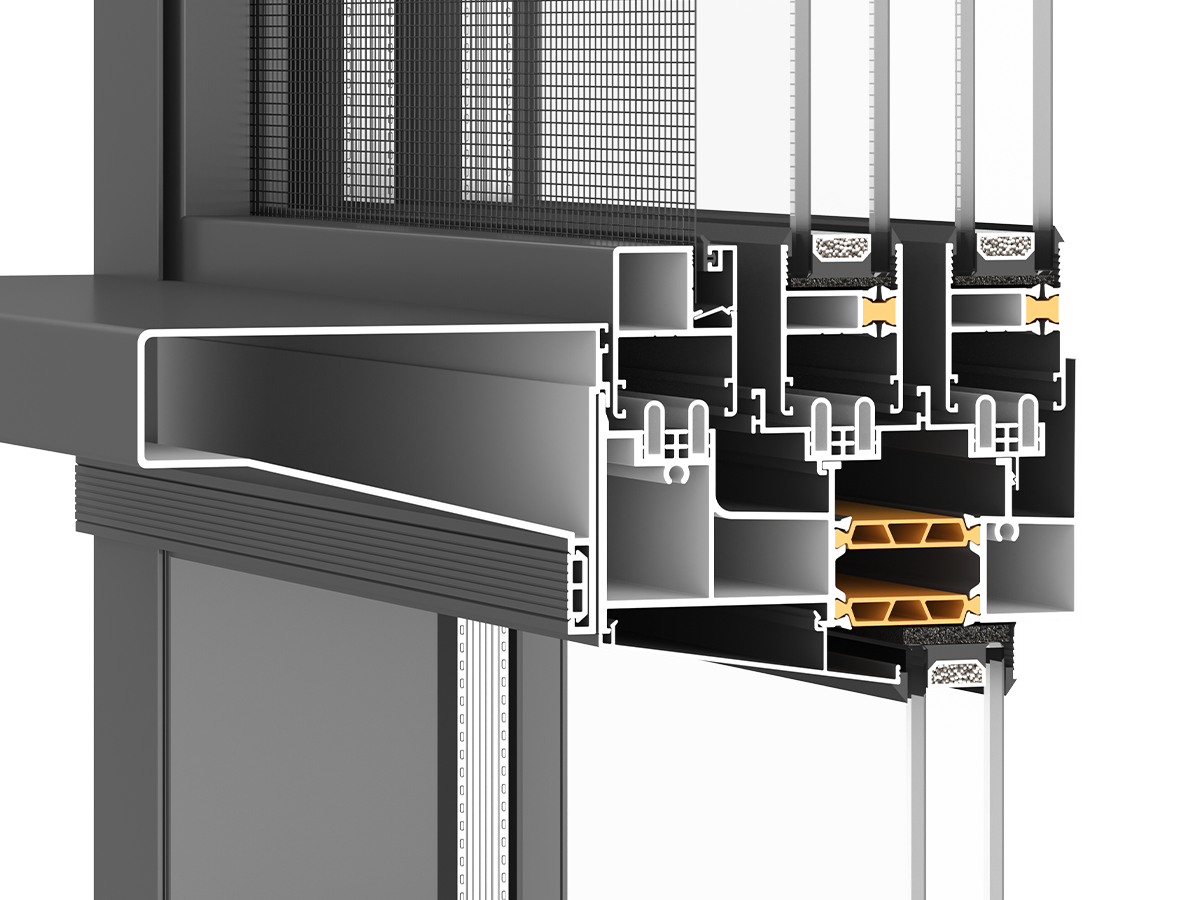

Zero-Redundancy Engineering & 35% CapEx Savings
Engineered for tropical islands and mild climate zones, cutting 35%-40% initial procurement costs while maintaining Class 9 wind loads.

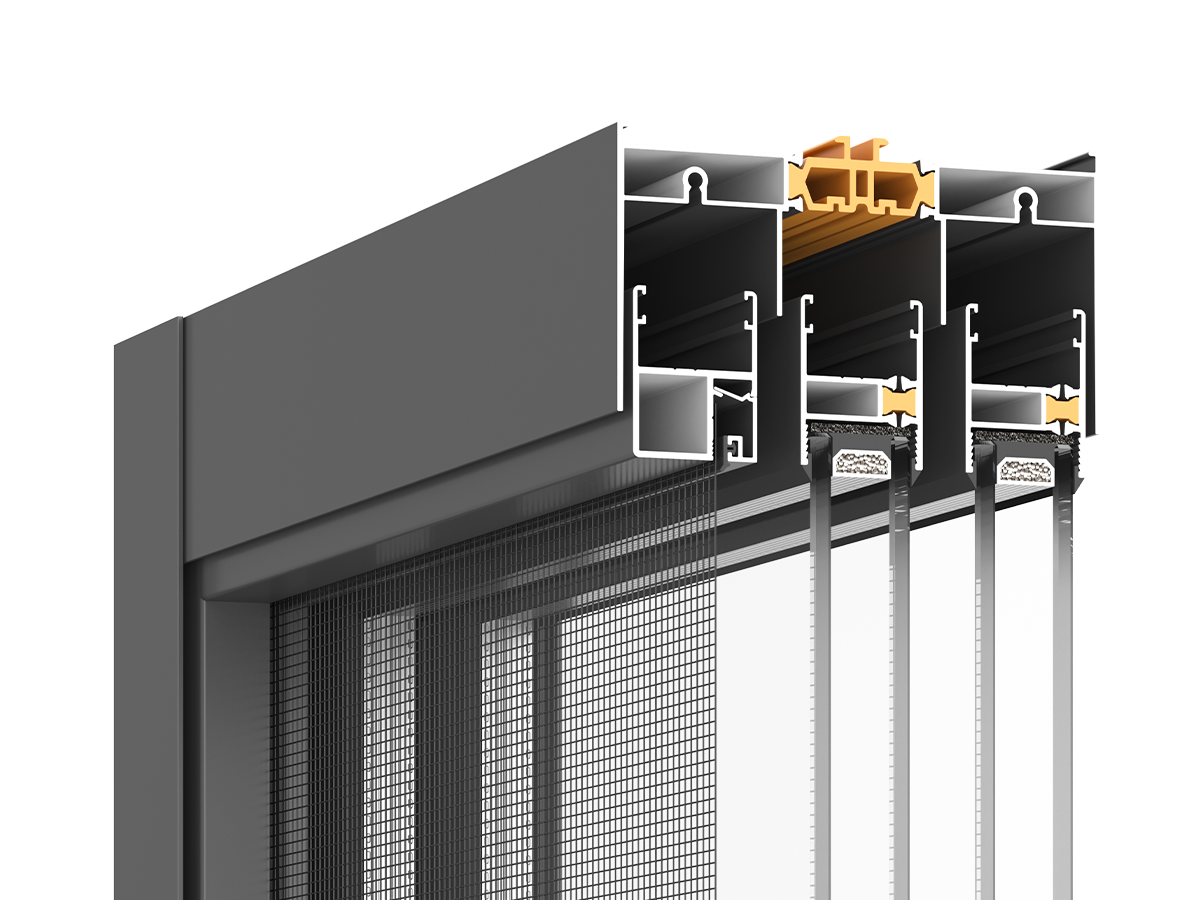

Uncompromising Specification Standards
Retains 1.8mm-2.0mm virgin alloy profiles, automotive EPDM seals, and steel rollers, ensuring 10-year reliable operational lifespans.
Sliding Systems Engineering Comparison
Compare structural depth, load capacity, sealing, drainage, wind resistance, and climate positioning across the four sliding systems.
| Core Engineering Dimension / Metric | BC-S116/120 Classic Sealed Sliding System | BC-S125/130 Six-Track Panoramic Typhoon-Resistant System | BC110 Six-Track Panoramic Thermal-Break Sliding Window | BC-MS100/120 Tropical High-Wind Monobloc System |
|---|---|---|---|---|
| Profile Structure | Dual-cavity / triple-track thermal break (PA66 24mm) | Six-track thermal break (Youtai/Rongtai PA66) | Six-track panoramic thermal-break system (Youtai PA66) | One-piece extruded high-rigidity structure (Monobloc) |
| Main Load-Bearing Wall Thickness | 1.8mm–2.0mm pure aluminum billet | 3.0mm reinforced sill/ 2.0mm frame profile | 1.8mm 6063-T5 virgin aluminum profile | 1.8mm–2.0mm primary aluminum |
| Frame Depth | 116mm–120mm | 125mm–130mm frame depth | 110-series six-track frame depth | 100mm–120mm structural depth |
| Load-Bearing Roller System | Tandem load-bearing roller set | Dual-row composite steel rollers with steel rings + anti-sway upper rollers | Dual-row lower rollers + anti-sway upper wheels | Premium dual-row stainless-steel rollers + anti-sway rollers |
| Sealing Tiers | 3–4 EPDM gasket lines + 5mm compression lock | 6 sealing tiers (EPDM gaskets + siliconized weatherstrips) | Six-layer high-density weatherstrip sealing | 4 EPDM sealing gaskets + weatherstrips |
| Drainage System Design | Concealed floor-drain pressure-equalized drainage | Stepped five-way drainage + wind baffles | Recessed lower track with enhanced sealing and water resistance | Embedded independent pressure-equalized drainage channel |
| Wind Pressure Resistance (Wind) | 3.0kPa–3.5kPa (GB Class 5) | 5.0kPa+ (GB Class 9 / withstands Force 14 typhoon winds) | Project-specific tested performance available on request | 5.0kPa+ (GB Class 9 / monobloc shear resistance) |
| Watertightness (Water) | 350Pa–500Pa (GB Class 4) | 500Pa–700Pa (GB Class 5) | Six-seal weather protection; project test data available on request | 350Pa–500Pa (GB Class 4) |
| Airtightness (Air) | Class 7–8 (q1≤ 0.5) | Class 8 (airtight compression locking) | Six-layer weatherstrip sealing; project test data available on request | Class 6–7 (q1≤ 1.5) |
| Whole-Window Thermal Insulation K-Value | 1.6–2.0 W/m2K | 1.6–2.2 W/m2K | Youtai PA66 thermal break + Xinyi insulated glass | 3.5–4.5 W/m2K (tropical climates with minimal temperature differential) |
| Maximum Single-Sash Glazing Area | Maximum single sash ≤ 4.5 m2 | Maximum single sash up to 8.0 m2 | Project-specific sash sizing available on request | Maximum single sash ≤ 6.0 m2 |
| Recommended Project Applications | Urban high-rise residences, commercial offices, kitchens, and balconies | Coastal super-typhoon zones and large-balcony panoramic enclosures | Panoramic balconies needing integrated safety, storage, and drying functions | Tropical island villas, mild-climate apartments, and bulk procurement |
Multi-Dimensional Track Configurations & Kinematic Opening Matrix
Supporting modular 2-track to 6-track layouts, our sliding systems adapt to expansive balconies, pillar-less corner views, and safe ventilation envelopes.
01
2-Track & 3-Track Symmetrical Sliders
Delivers 2-sash, 3-sash, and 4-sash French center-opening layouts, achieving 50%-67% net opening areas for natural cross-ventilation.
2-Track · 2-Sash
3-Track · 3-Sash
4-Sash · Center Opening
02
6-Track Telescopic Stacking Layouts
Outfits 6-track sliding configurations where multiple sashes stack neatly to one side, creating an uninterrupted panoramic indoor-outdoor opening.
6-Track · 3 + 3 Sashes
One-Side Telescopic Stack
Concealed-Pocket Stack
03
Fixed Transom with Integrated Drying Rails
Couples fixed bottom lites with operable interior safety guardrails/drying racks, combining fall prevention with lifestyle utility.
Fixed Bottom Lite
Operable Safety Guardrail
Integrated Drying Rack
04
90-Degree Post-Free Panoramic Corners
Features dual sliding vents converging at a 90-degree corner without a fixed vertical post, delivering 270-degree ocean views.
Closed Corner Junction
Dual-Direction Sliding
Fully Open 270° View
05
Suspended Sliders with Reinforced Mullions
Integrates structural stiffener mullions with suspended track profiles, maximizing wind resistance across oversized openings.
Suspended Recessed Track
Reinforced Stiffener Mullion
Oversized Opening Assembly
High-Performance Glass Optics, Sizing Matrix & Thermal Compliance
Utilizing CSG and XINYI low-iron float glass with silicone structural seals, supporting 27mm-39mm glass pockets engineered for oversized sashes up to 8m².
01

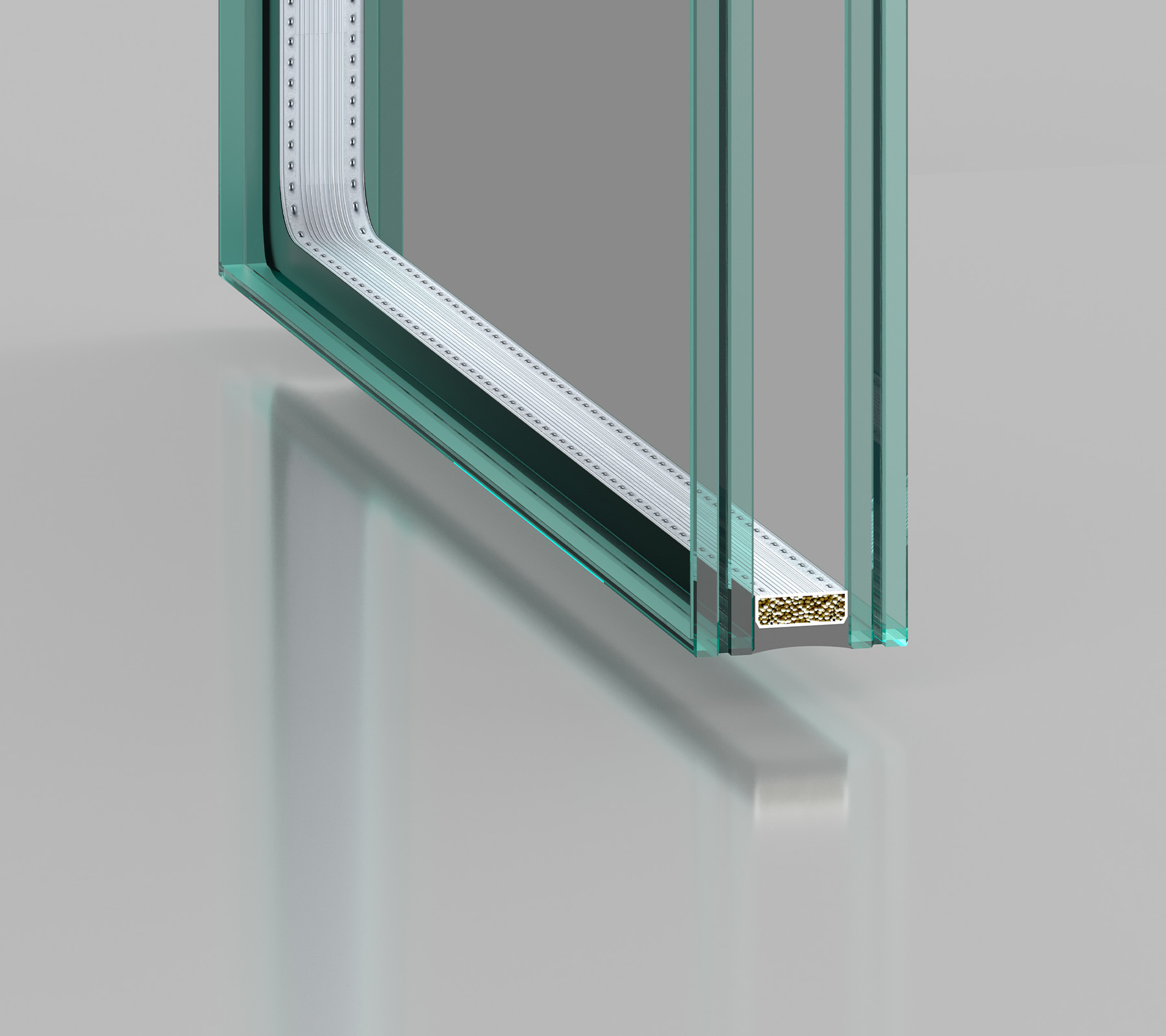

XINYI Mirror-Grade Glass & Anti-Spontaneous Breakage
Deploys automotive mirror-grade low-iron glass treated with Heat Soak Testing (HST), reducing spontaneous breakage below 0.05%.
02

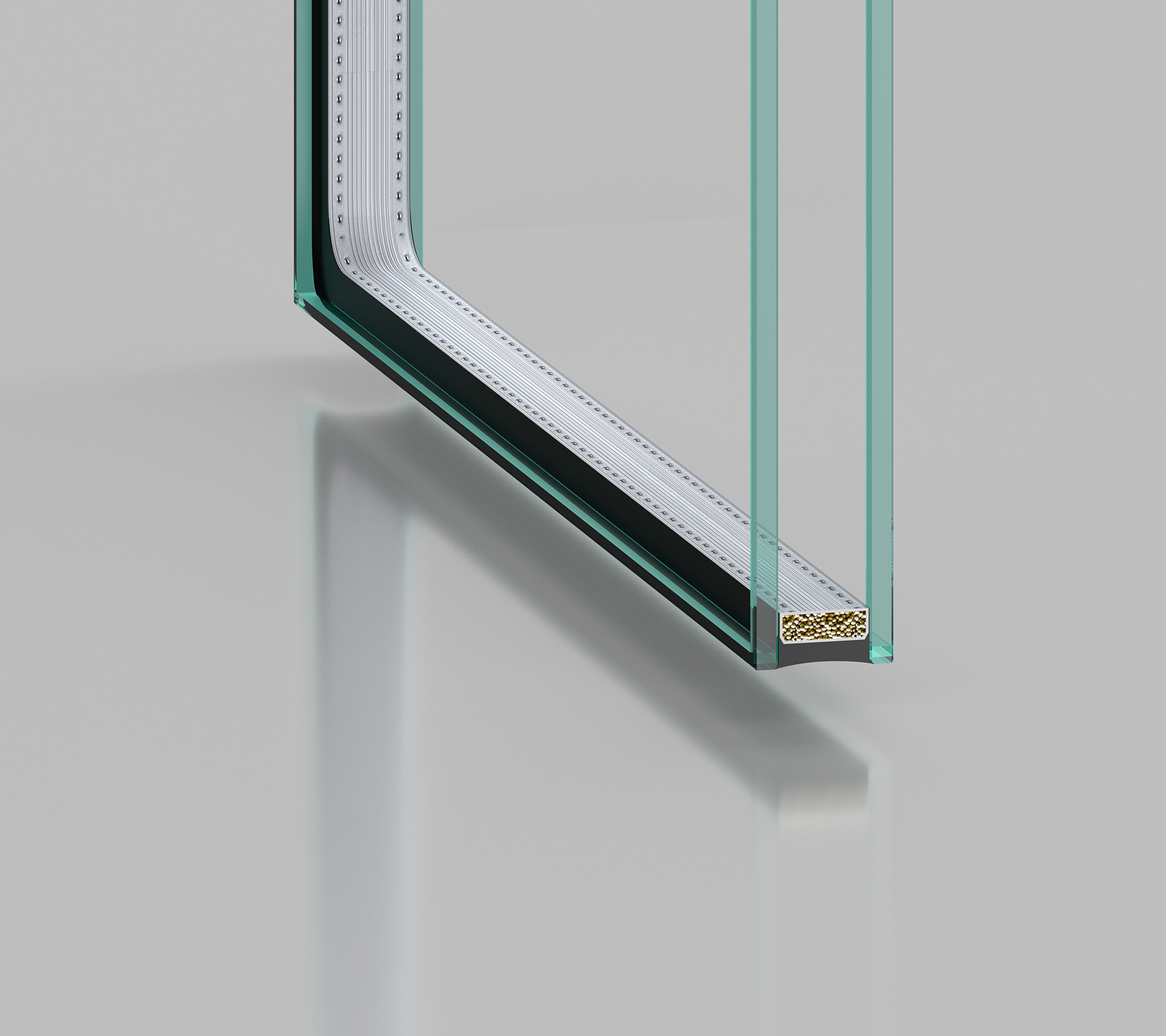

Double-Silver Low-E Argon-Filled IGU
Employs 6mm Double Low-E + 18Ar + 6mm configurations to reflect 80% infrared heat (K ≤ 1.51 W/m²K), optimizing cooling performance.
03

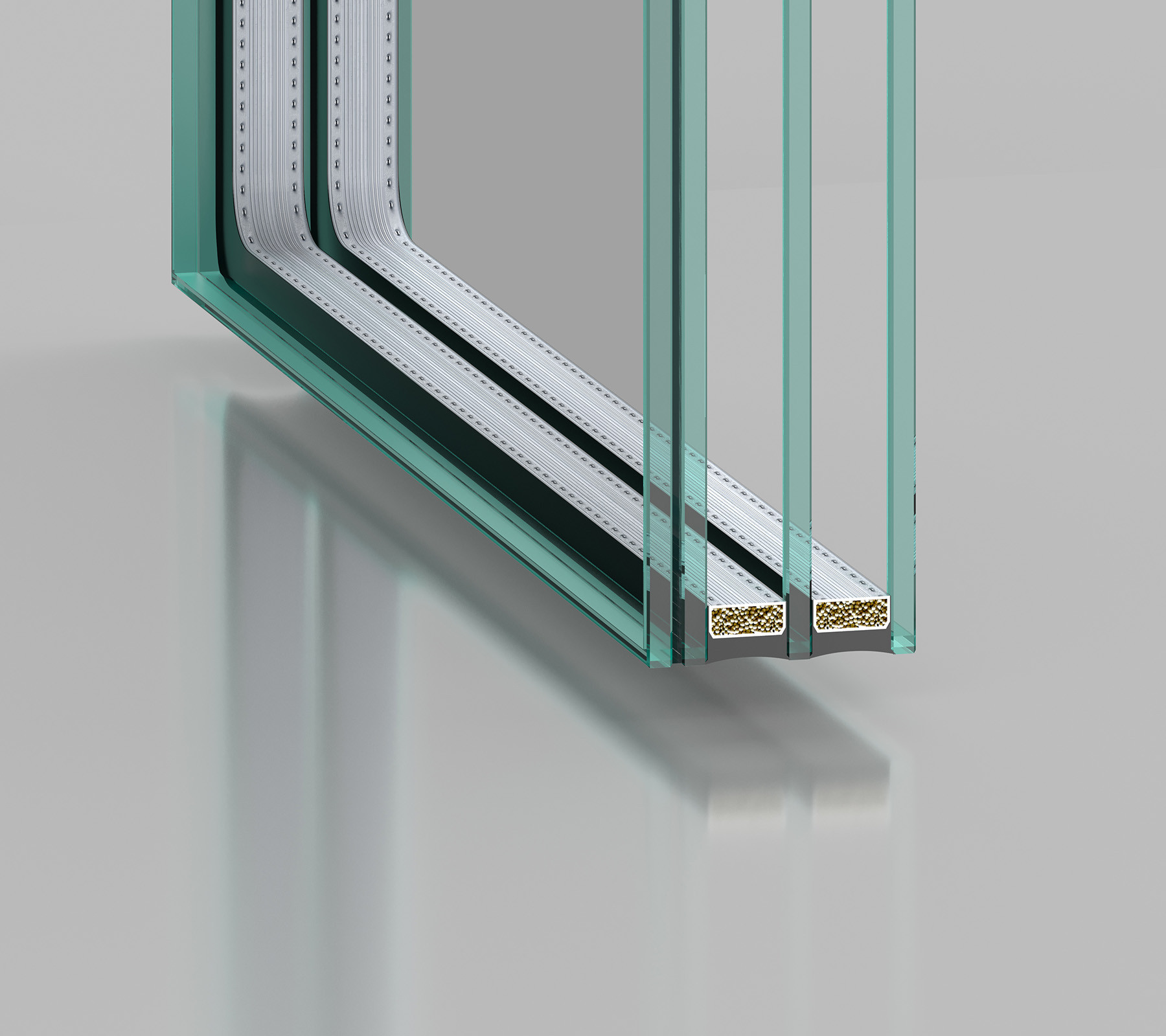

Guibao Structural Sealants & 20-Year Anti-Fogging
Outfits Guibao 882 butyl sealants with desiccant molecular sieves, preventing internal condensation and gas loss for 20 years.
04

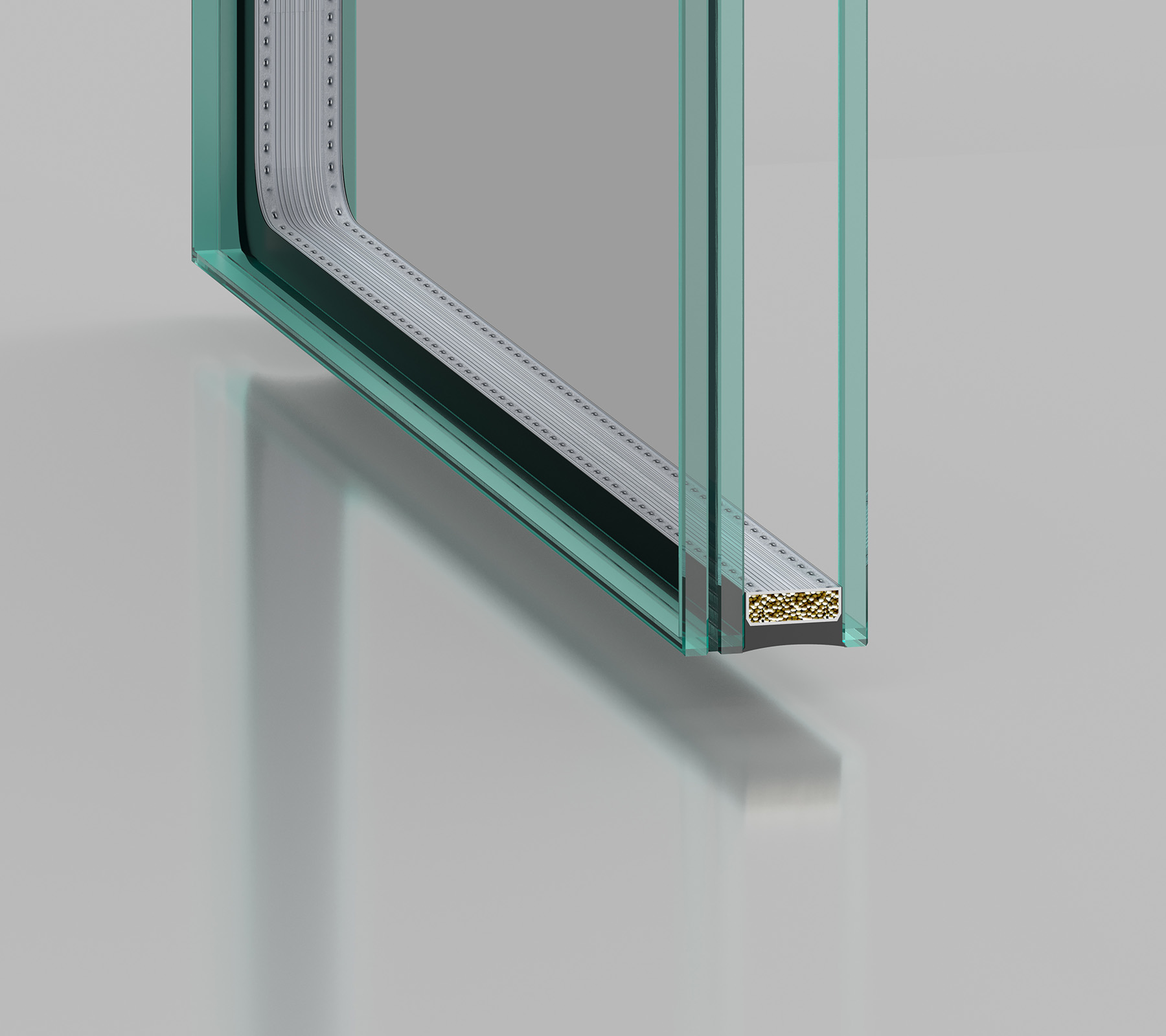

Heavy-Duty Laminated Impact Insulated Units
Configures 6mm + 1.52PVB/SGP + 6mm + 16Ar + 6mm laminated glass, withstanding hurricane suction and windborne debris impacts.
Insulating Glass Optical & Thermal Performance Matrix (Theoretical)
| Glazing Specification | Visible Light Transmittance (Tv) | U-Value K (Argon) | U-Value K (Air) | Infrared Total Energy Transmittance (g) |
|---|---|---|---|---|
| Standard Double-Glazed IGU6mm + 18A + 6mm | 71% | 2.80 W/m²K | 2.80 W/m²K | 67% |
| Ultra-Clear Single-Silver Low-E IGUHigh-Transmittance · 6Low-E + 18Ar + 6mm | 76% | 1.72 W/m²K | 1.87 W/m²K | 49% |
| Ultra-Clear Double-Silver Low-E IGUHigh-Efficiency Standard · 6Low-E + 18Ar + 6mm | 62% | 1.51 W/m²K | 1.68 W/m²K | 20% |
| Ultra-Clear Triple-Silver Low-E IGUUltra-Low IR · 6Low-E + 18Ar + 6mm | 63% | 1.49 W/m²K | 1.66 W/m²K | 4% |
| Ultra-Clear Double-Silver Triple-Glazed IGU6mm + 12Ar + 6Low-E + 12Ar + 6mm | 58% | 1.04 W/m²K | 1.26 W/m²K | 20% |
| Ultra-Clear Triple-Silver Triple-Glazed IGUPassive-House Grade · 6mm + 12Ar + 6Low-E + 12Ar + 6mm | 58% | 1.03 W/m²K | 1.25 W/m²K | 4% |
Sliding-Window Sash Area & Recommended Glass Thickness (Engineering Sizing Guide)
| Sash Glass Area | Recommended Glass Specification | Wind Load Class | Recommended Application |
|---|---|---|---|
| Standard Area (≤ 2.0 m²) | 5mm + 16A/Ar + 5mm Double-Tempered IGU | GB Class 5 (P3≥ 3.0 kPa) | Interior kitchen sliding doors and guest bedrooms in mild-climate urban apartments |
| Medium-Large Area (2.0-4.0 m²) | 6mm Low-E + 18Ar + 6mm Double-Tempered IGU | GB Class 7 (P3≥ 4.0 kPa) | High-rise residential viewing balconies and commercial office façades |
| Oversized Sash (4.0-6.0 m²) | 8mm Low-E + 16Ar + 8mm Double-Tempered IGU | GB Class 8 (P3≥ 4.5 kPa) | Large-span living rooms in coastal luxury hotels and detached-villa balconies |
| Extreme Panoramic Sash (6.0-8.0 m²+) | 8mm + 1.52PVB + 8mm + 16Ar + 8mm Laminated IGU | GB Class 9 (P3≥ 5.0 kPa, typhoon resistance) | Coastal supertall ocean-view penthouses and landmark curtain-wall façades |
Turnkey Sliding Solutions
Sliding Window Engineering Selection Matrix Turnkey Project SKUs
Curated for hurricane zones, high-efficiency towers, and tropical estates, our four turnkey sliding SKUs streamline CAD detailing and technical procurement.

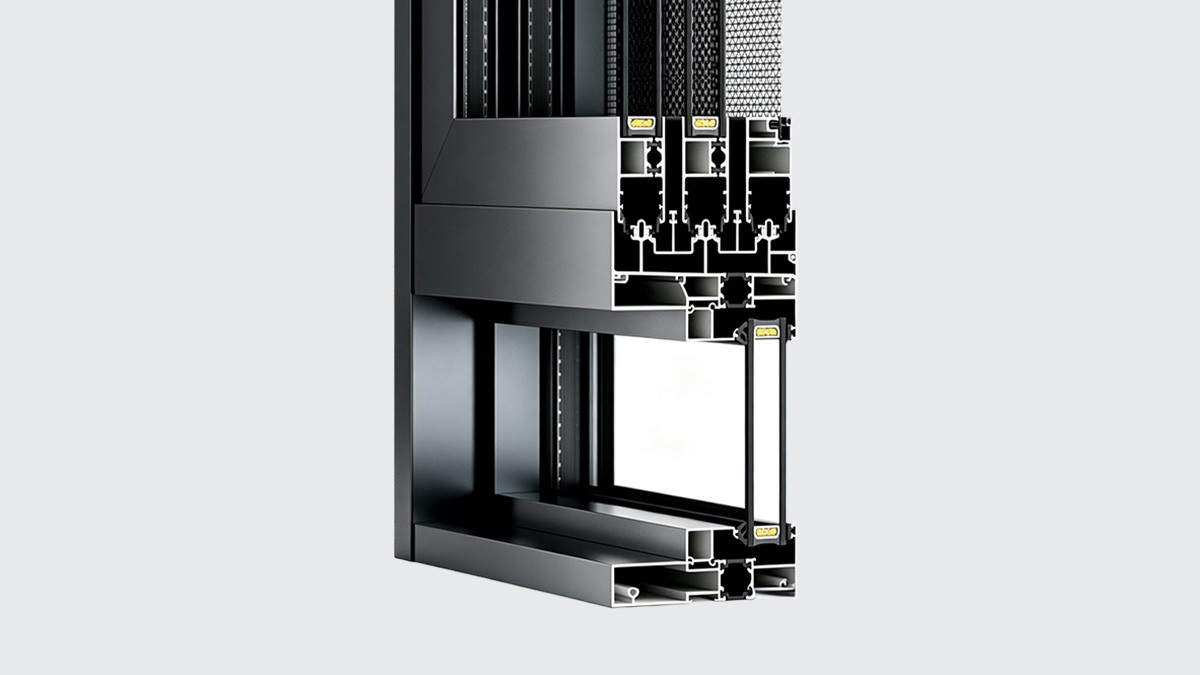

BC-S116 Slim Compression Sliding Window
Engineered for urban apartments and office towers, combining 116mm frames and 5mm compression seals for high airtightness.

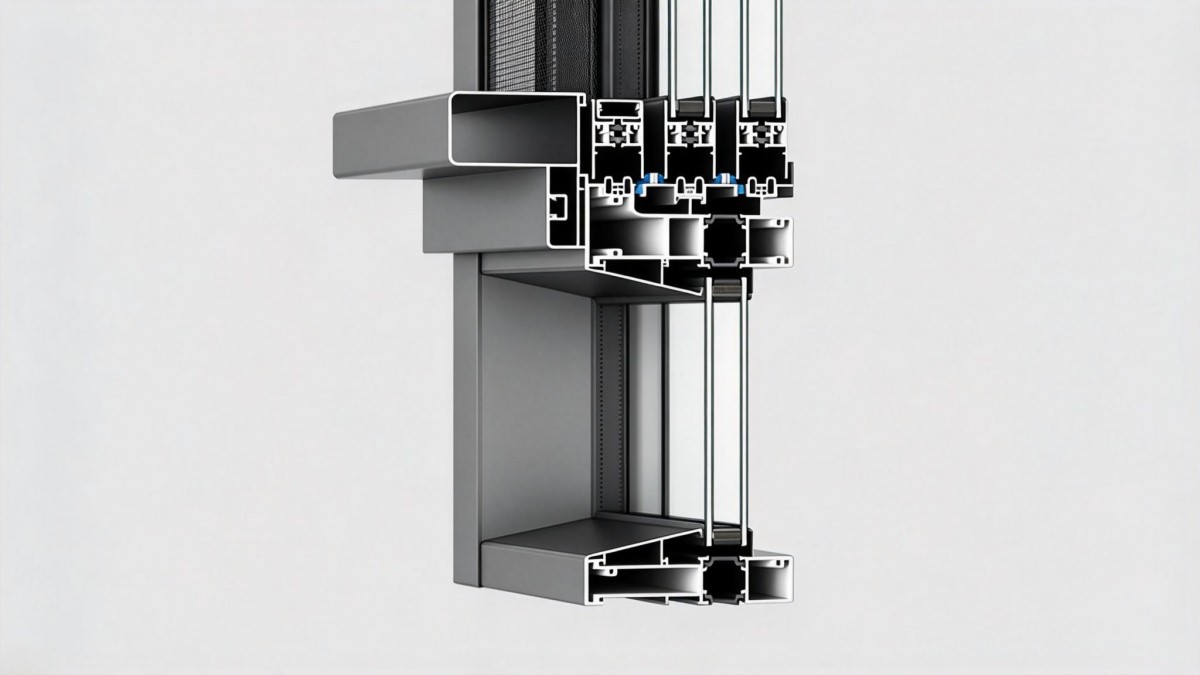

BC-S125 6-Track Panoramic Anti-Sway Slider
Built for coastal balconies, featuring 6-track stacking sashes, 3.0mm heavy sills, 5-direction drains, and anti-sway guide wheels.

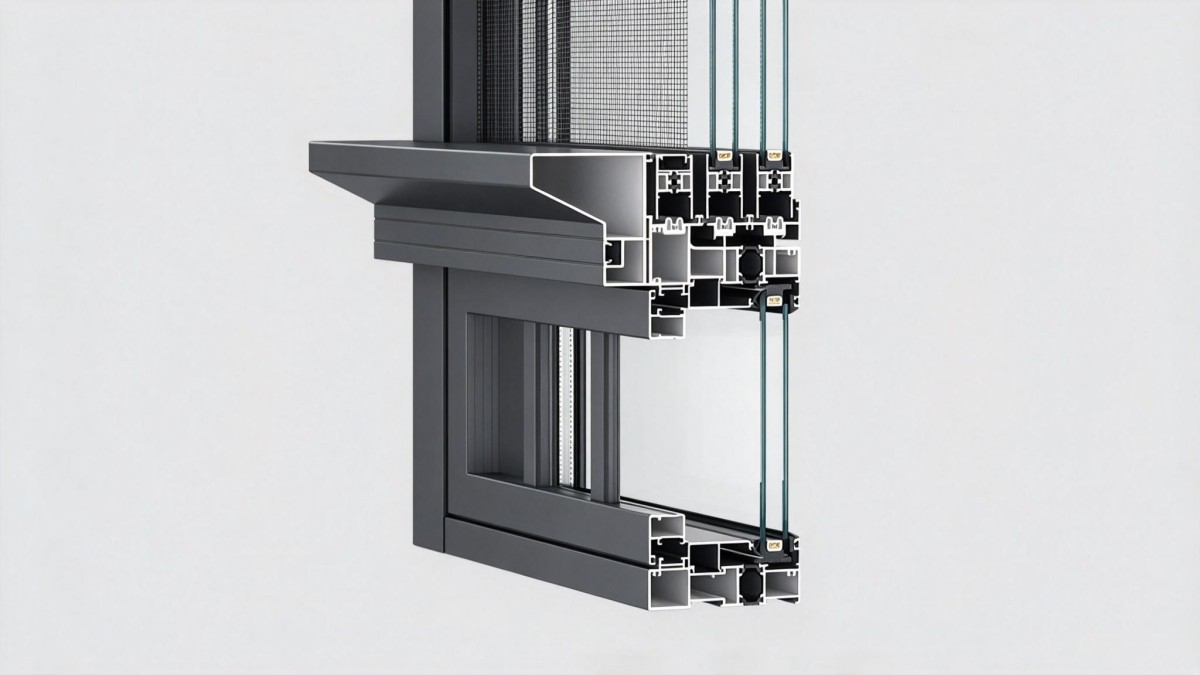

BC-S130 Heavy-Duty Hurricane Panoramic System
Designed for hurricane zones, featuring 3.0mm profiles and steel tandem rollers supporting 8m² glass panels (Class 9 wind load).

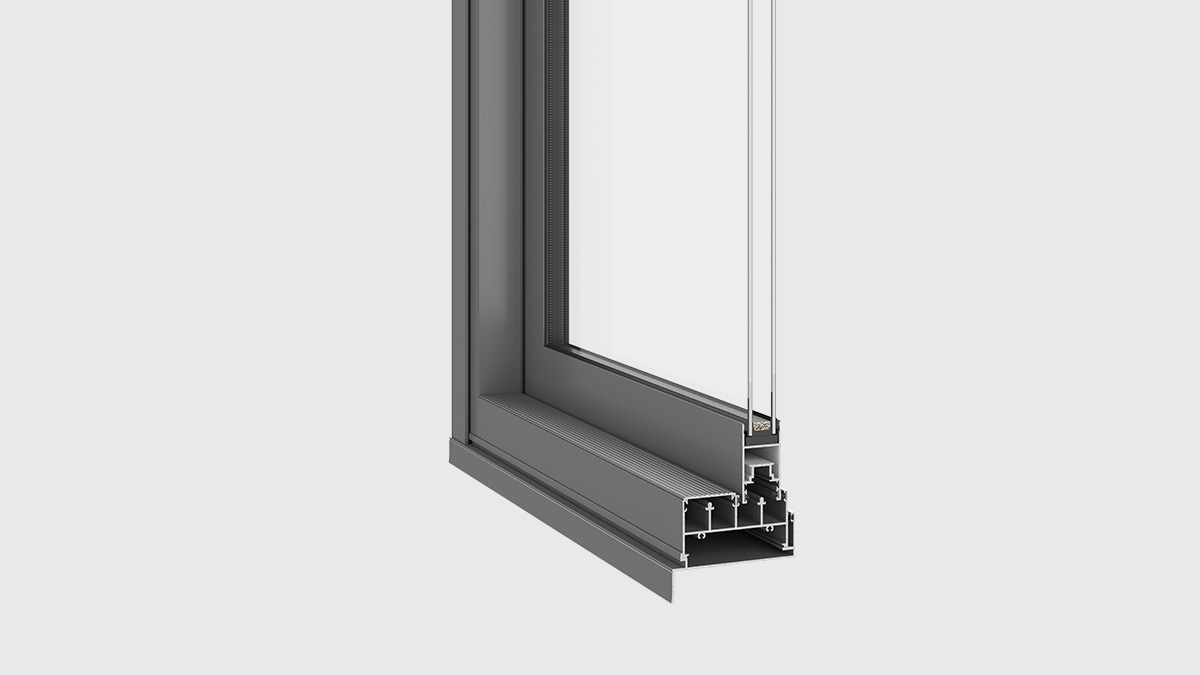

BC-MS100 Tropical Monobloc High-Wind Slider
Tailored for tropical resorts and large-scale EPC tenders, cutting 35%-40% CapEx via solid extrusions while delivering Class 9 wind resistance.
