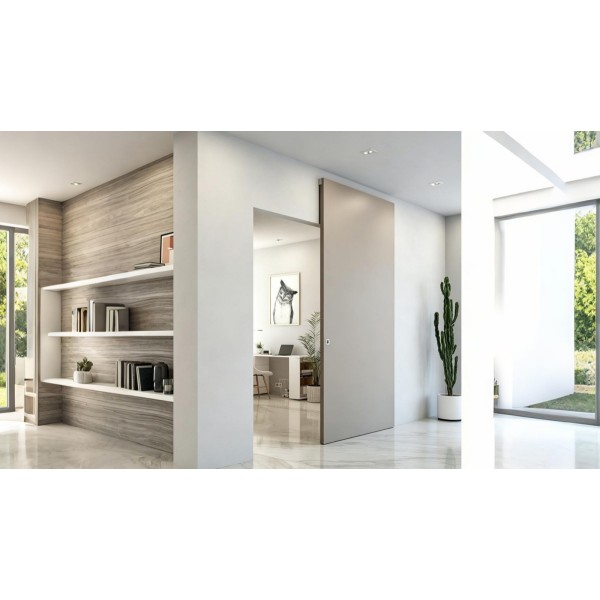

Custom Interior Ghost Door With Concealed Sliding Hardware

Custom Interior Ghost Door With Concealed Sliding Hardware
Share
CategoriesProject Prefinished Wood Doors
BrandBLOSSOM CHEER Door And Window Project Manufacturer
Product SeriesCustom Ghost Door Series
Door TypeInterior Concealed Sliding Door
Operation TypeSpace-Saving Sliding Operation
CustomizationDoor Size / Panel Finish / Hardware Series
Production Time15-25 Days
SampleAvailable
Project ServiceOEM / ODM / Custom Project Support
FOB portGuangzhou
Terms of PaymentL/C, D/A, D/P, Western Union
Contact Now
Add to Wishlist
Detail Information

Ghost Door Hardware Specifications

Specification
Description
YB01 1st Generation
YB05 3rd Generation
YB09 4th Generation
Product Specifications
Door Weight ≤ 80 kg per leaf
Door Width 800–1500 mm
Door Width Formula Opening width + 267 mm Opening width + 160 mm
Door Height Formula Opening height + 70 mm
Required Headroom 120 mm
Door-to-Wall Gap 10 mm
Door Thickness 35–50 mm
Floor Guide Center to Wall 10 mm + door thickness ÷ 2
Product Features
Patent & Design Patented and exclusively designed as China's first ghost door hardware system
Concealed Track Fully concealed track design keeps the track and fittings out of sight
Overlap & Damper — Minimal overlap with a quick-release damper for easier maintenance
Anti-Derailment Anti-derailment system helps prevent the sliding door from disengaging
Safety Latch Safety latch Dual-safety latch
Wall Compensation Three-dimensional height adjustment compensates for uneven walls and helps prevent rubbing Height-adjustable; does not compensate for rubbing caused by uneven walls
Floor Roller Finish Transparent floor roller leaves no visible marks
Floor Adaptation Elastic floor roller adapts to uneven floors and reduces sliding noise Enlarged floor roller improves clearance —
Spring Bracket — Two spring sets provide improved adaptation to uneven floors
Compatible Doors Single wood, aluminium-framed glass, stainless-steel, and aluminium-wood doors; double-opening configurations are also available
Installation Site Requirements
Bracket Fixing Surface The bracket fixing position must be on a solid structural wall
Timber Wall Reinforcement For timber-framed or wood-finished walls, reinforce the bracket fixing area with a thickened structural board
Wall Flatness The wall must be flat; otherwise, the door leaf may rub against it during opening or closing
Floor Condition The floor must be level; installation over wood flooring or carpet is not supported
Door Grooving Grooves in the door leaf must be machined accurately
Door Parking Space At least one side of the opening must provide sufficient width and clearance to park the complete door leaf
Nearby Obstructions Door casing, trim, or electrical switches beside the opening may restrict the door's opening travel
Main Component Materials
Main Bracket Zinc Alloy Precision-Cast 304 Stainless Steel Powder-Coated Cold-Rolled Steel
Damper Heavy-Duty Hydraulic Damper With Aluminium Profile Sleeve Heavy-Duty Hydraulic Damper With 304 Stainless-Steel Base
Upper & Lower Tracks Aluminium Alloy
Floor Guide Roller Transparent Wear-Resistant Plastic Roller With Stainless-Steel Holder Transparent Wear-Resistant Plastic Roller With Powder-Coated Cold-Rolled Steel Holder
Bearing Bearing Steel
Accessory Packaging
Packing Quantity 5 Sets / Carton
Single-Set Package Size 128 × 18.2 × 5.5 cm
Carton Dimensions 128.5 × 32 × 20 cm
Weight Per Set 2.37 kg 2.33 kg 2.03 kg
Weight Per Carton 12.8 kg 12.6 kg 11.1 kg

Click any product image to enlarge it. Shared information is merged across all models. Model-specific differences are highlighted in orange. Swipe horizontally on mobile to compare the products.

Ghost Door Hardware Components

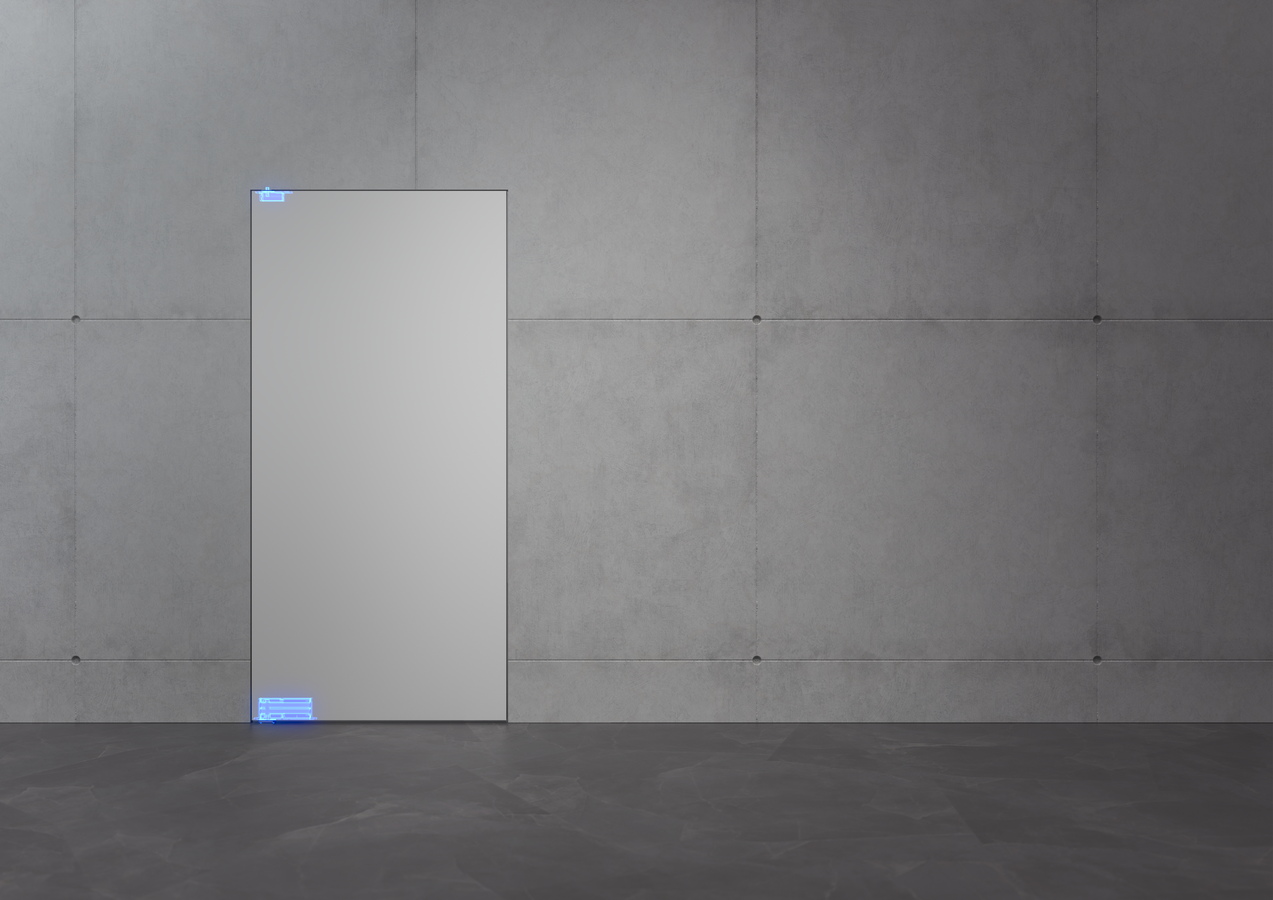

Ghost door hardware installation scene map

Components

The YB01 ghost door hardware set includes a main bracket, lower guide wheel, damper, floor wheel, and side wheel.

Select a YB01 component

Components

The YB05 ghost door hardware set includes side covers, a main bracket, stop block, lower guide wheel, left and right dampers, track, floor track, and floor wheels.

Select a YB05 component

Components

The YB09 ghost door hardware set includes side covers, a main bracket, damper, track, lower guide wheel, floor track, and floor wheels.

Select a YB09 component

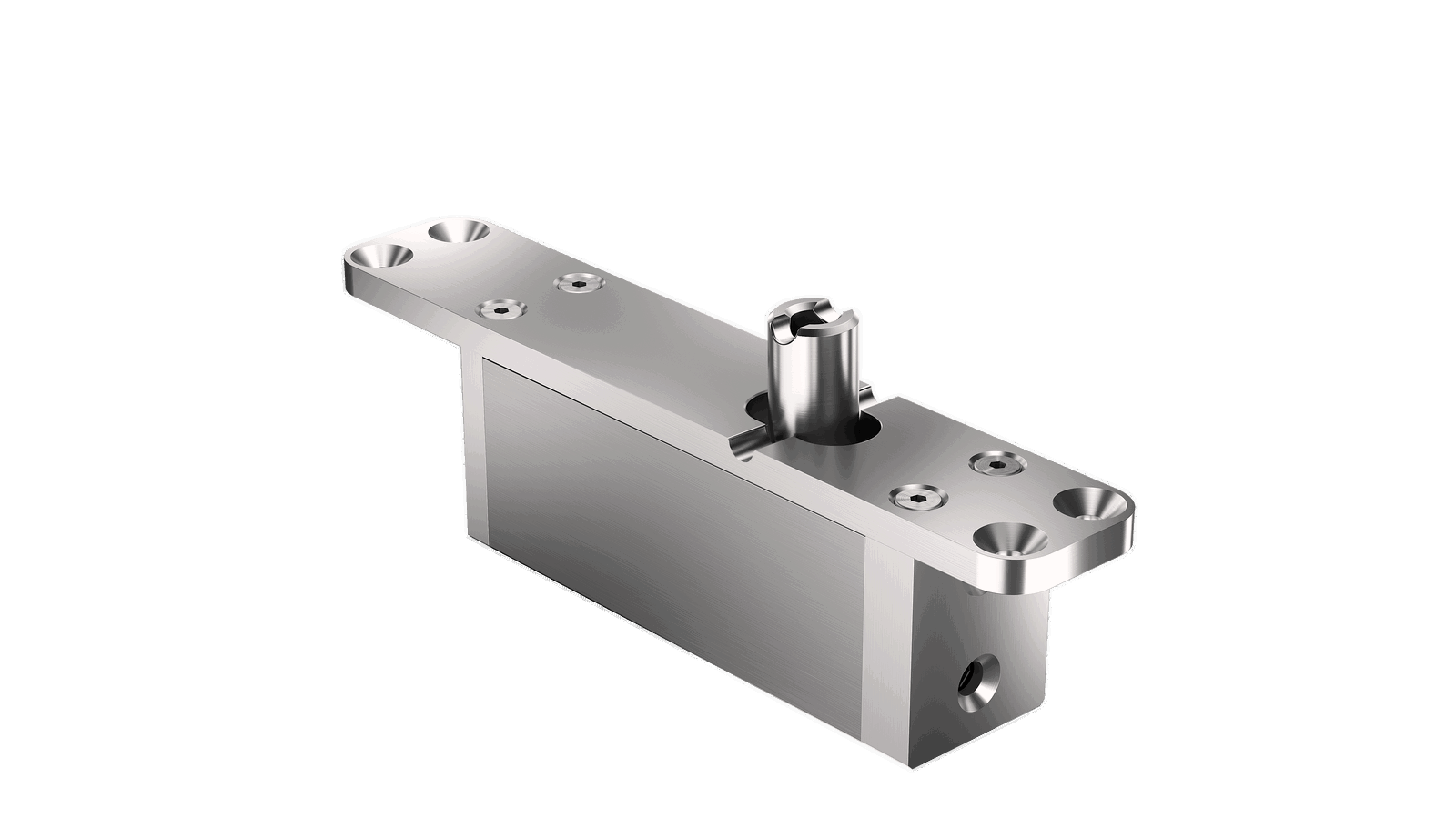

Main Bracket

Connects the door panel to the concealed sliding assembly, giving the carrier a fixed mounting point so the panel stays aligned as it moves.

Lower Guide Wheel

Guides the lower edge of the door and helps reduce side-to-side swing during daily sliding operation.

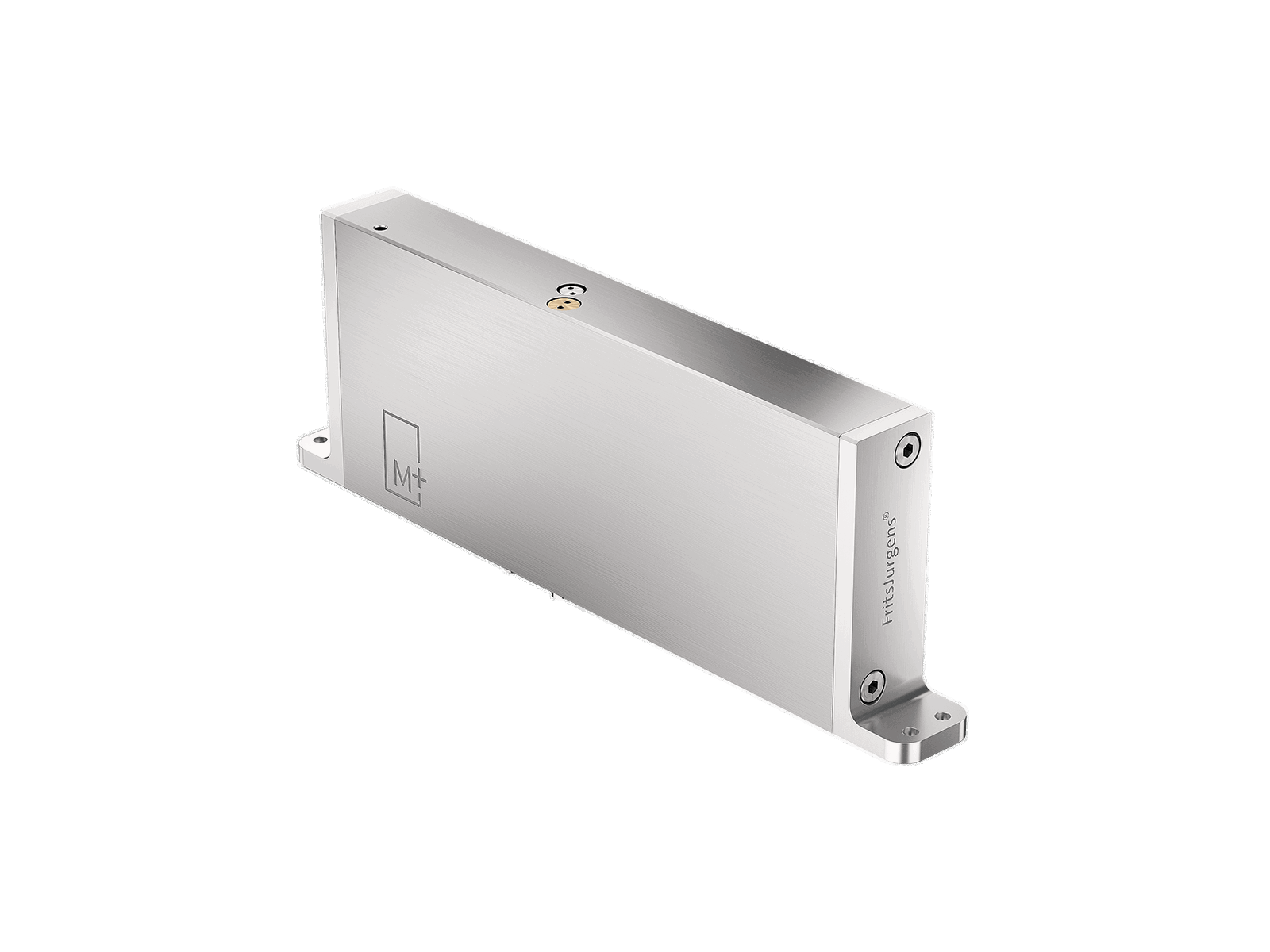

Damper

Slows the door near the end of travel, making opening or closing feel more controlled and quieter.

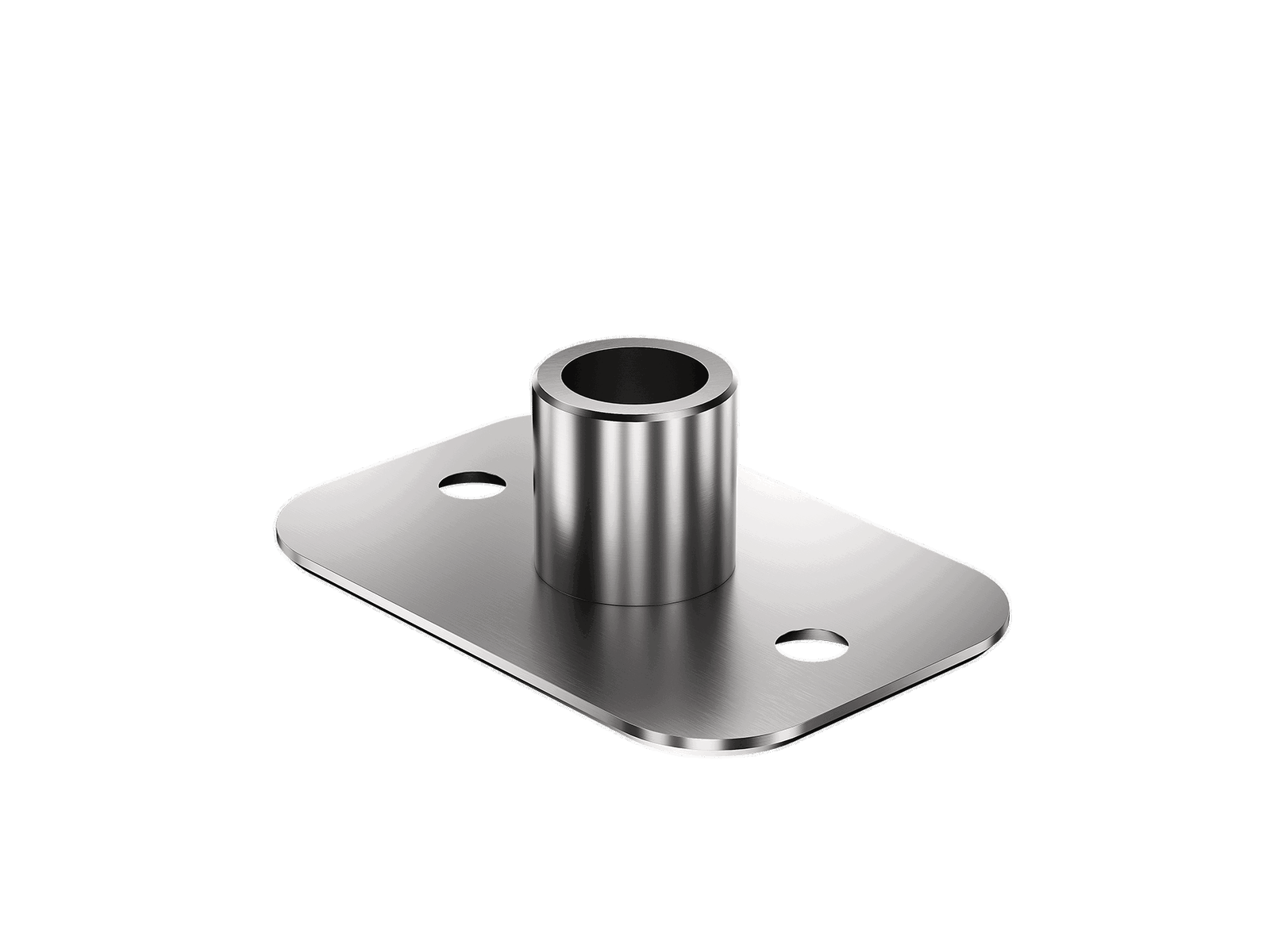

Floor Wheel

Provides lower rolling support so the panel can move smoothly while keeping the concealed system stable.

Side Wheel

Controls lateral contact near the side of the opening, helping the door stay steady without exposed guide hardware.

Left & Right Side Covers

Finish the exposed ends of the mechanism for a cleaner concealed installation and help shield the fittings from everyday contact.

Main Bracket

Secures the door panel to the YB05 sliding assembly, keeping the concealed carrier connection firm and aligned.

Stop Block

Defines the travel end position so the panel stops at the planned point before the hardware reaches its limit.

Lower Guide Wheel

Works with the lower guide path to keep the bottom of the door tracking straight and reduce twisting.

Left & Right Dampers

Provide soft control in both travel directions, slowing the panel as it reaches the open or closed end position.

Track

Forms the upper running path for the concealed sliding hardware, helping the moving parts stay straight and coordinated.

Floor Track

Creates a fixed lower guide path for the floor wheels, reducing sway and keeping the panel moving in line.

Floor Wheels

Run along the lower track to support smooth movement and help the door maintain a stable sliding path.

Left & Right Side Covers

Conceal the side ends of the YB09 hardware set, giving the installation a cleaner finished edge.

Main Bracket

Fastens the door panel to the YB09 carrier assembly, supporting stable movement within the hidden hardware layout.

Damper

Absorbs the final motion of the sliding panel, helping the door close or open with less impact and noise.

Track

Provides the straight upper guide path for the YB09 sliding mechanism while remaining hidden in the finished installation.

Lower Guide Wheel

Controls the lower guide point so the door panel stays aligned and resists lateral movement while sliding.

Floor Track

Keeps the bottom guide route fixed, helping the floor wheels run consistently without drifting from the sliding path.

Floor Wheels

Support smooth lower movement along the floor track and help stabilize the door through repeated daily use.

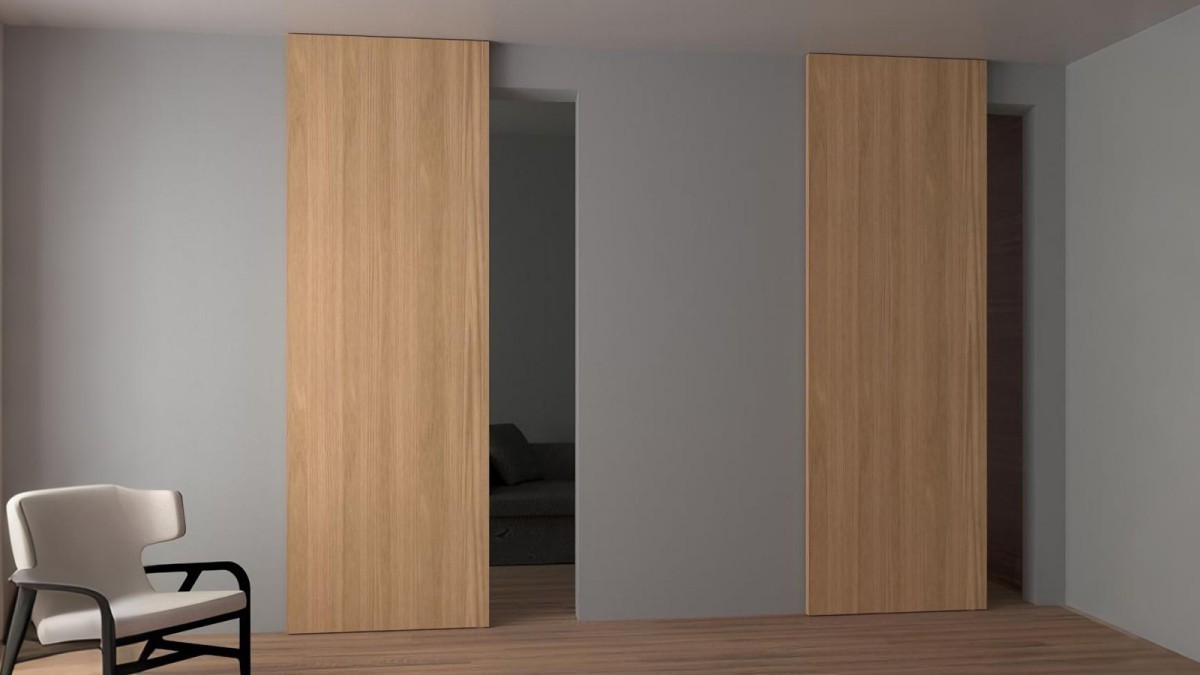

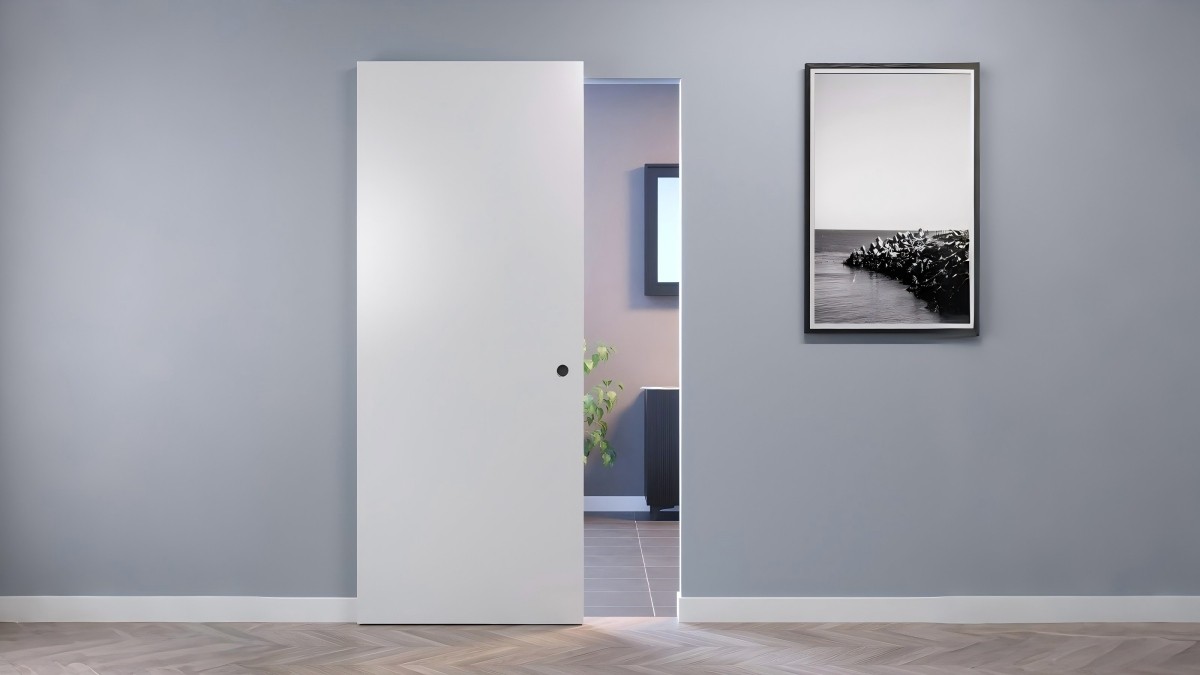

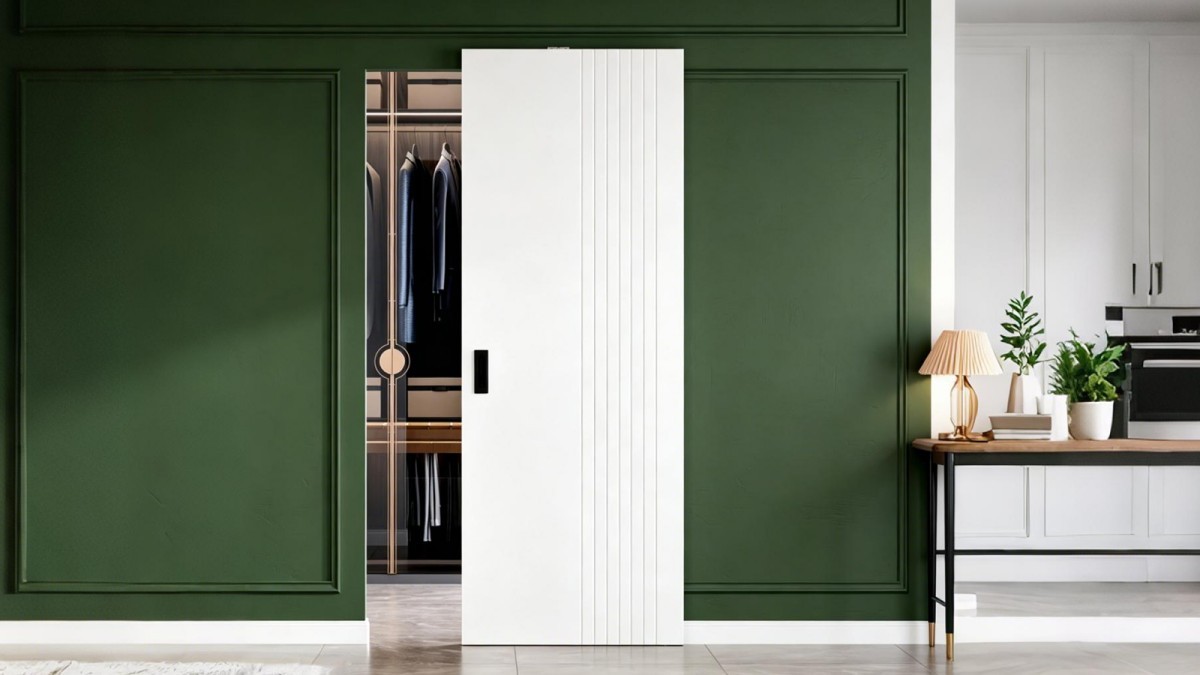

Paint-Free Ghost Door | Micro Inlay Wood Door Series

What is a paint-free ghost door? It is a concealed sliding interior wood door that hides its track, rollers, and guides to create a clean floating appearance. This micro inlay series combines paint-free wood door panels with CNC-milled decorative strips for apartments, hotels, villas, and custom residential or commercial projects.

Product Series

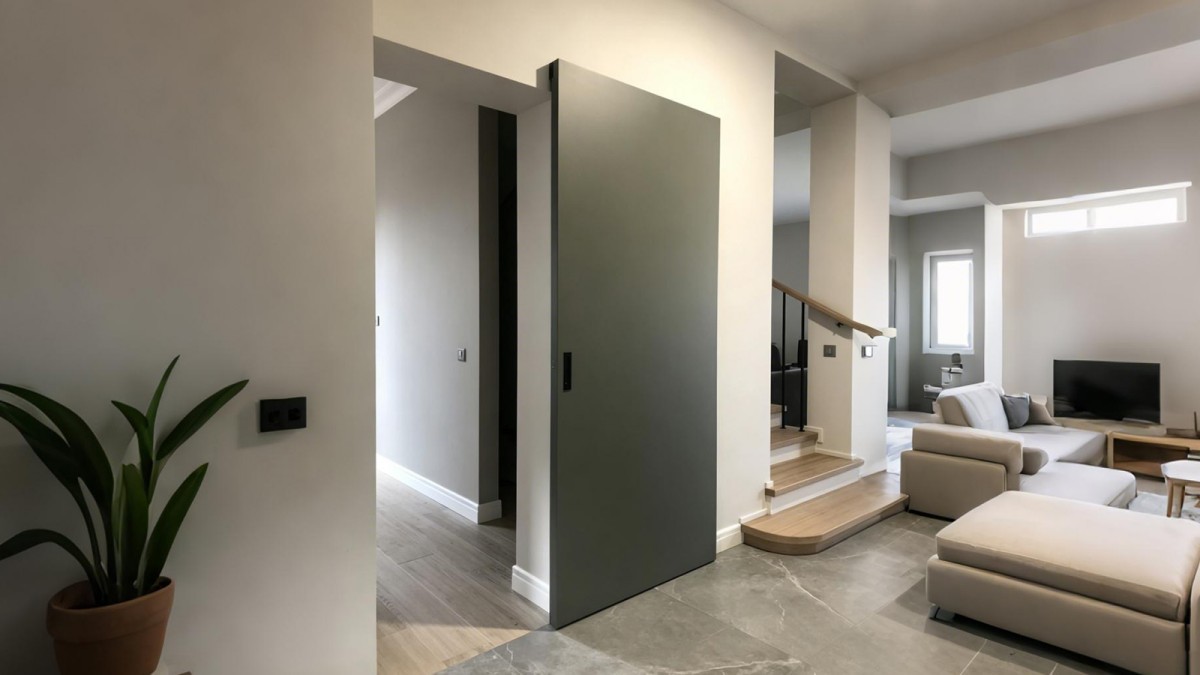

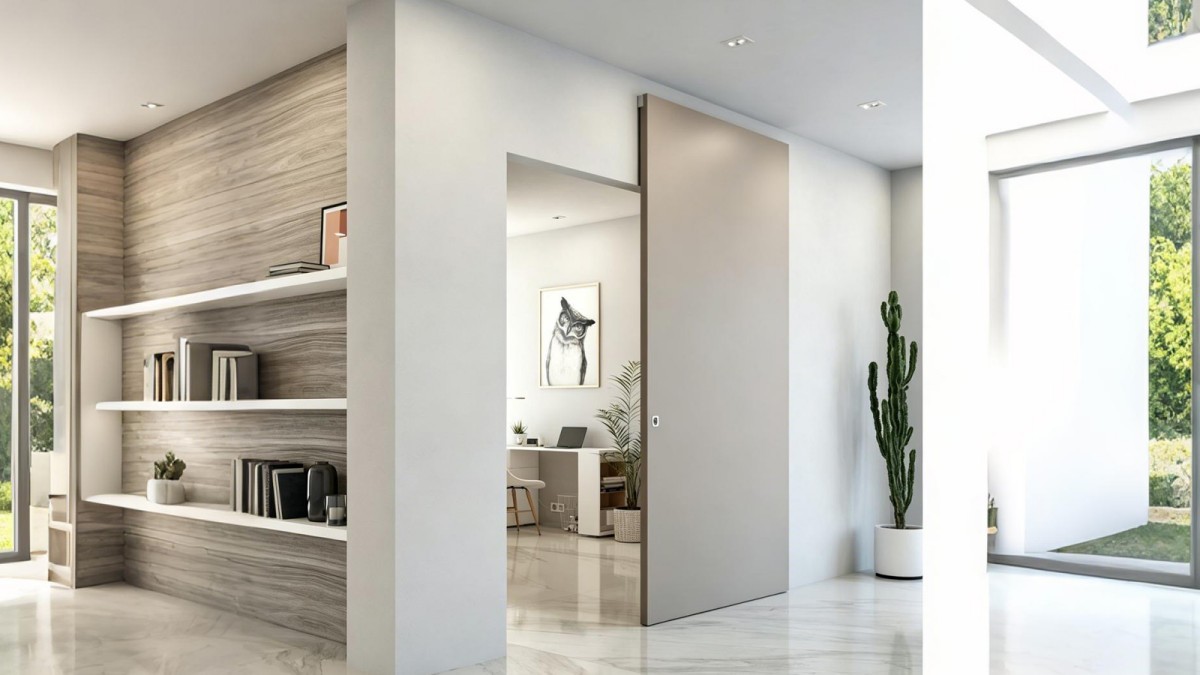

Modern grey ghost door with concealed sliding hardware

Paint-Free Ghost Door with Micro Inlay Wood Panel

A paint-free ghost door conceals the sliding track, rollers, and guide while its micro inlay wood panel delivers refined line detail, a flush appearance, and a clean modern finish for custom interior projects.

Ghost Door Glass Color Customization

Choose the glass color, transparency, privacy level, surface effect, and coordination with concealed sliding hardware for custom ghost door projects.

Glass color affects daylight, privacy, reflection, and the visual depth of a ghost door. Review the selected glass together with the frame finish, panel size, door-leaf weight, and YB01, YB05, or YB09 concealed hardware set before production.

Clear glass color option for a custom ghost door Clear Glass
European grey glass color option for a ghost door In Stock European Grey
Grey tea tinted glass option for a ghost door Grey Tea Glass
Gold tea tinted glass option for a ghost door Gold Tea Glass
Black glass color option for a concealed sliding ghost door Black Glass
