Left: 45° cutaway highlighting 150mm frames, corner cleats, track seal components, and baffled drains; Right: 3.5m x 3.2m elevation drawing.
Where Buildings Blossom With Confidence
BC-S128 (PS128) Modular Lift-Slide Door System
| Share | |
|---|---|
| Categories | Aluminum Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Frame Depth | 150mm |
| Maximum Panel Weight | 500kg |
| Maximum Panel Size | 3.5m wide × 3.2m high |
| Interlock Sightline | 28mm with a flush surface |
| Interlock Seals | Four central seals |
| Sealing System | Six sealing tiers |
| Drainage | Full-length drainage slots with dual-layer filter covers |
| Production Time | 15-25 Days |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
BC-S150 (MT150) Heavy Lift-Slide Door: 500kg Capacity & 3.5m×3.2m Sash Envelope
Built to GB/T 8478-2020 standards, the BC-S150 features 150mm frames, 500kg carriage modules, and 28mm slim interlocks to secure expansive architectural openings.

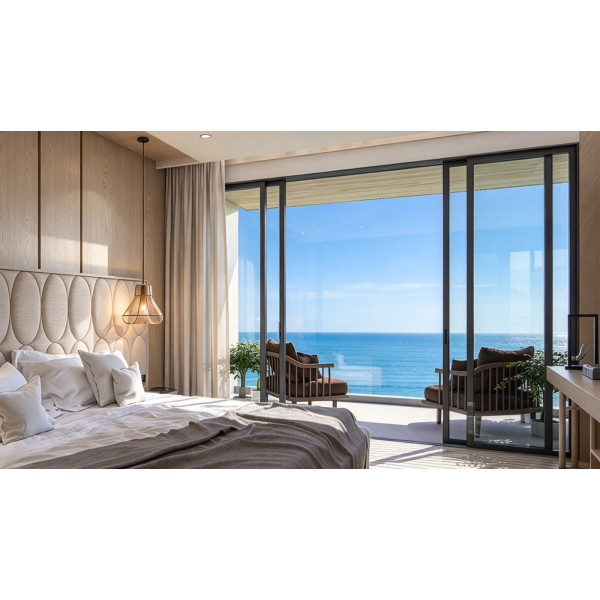

Rendered into luxury oceanfront villas and resort pavilions, emphasizing unobstructed vistas via 28mm flush interlocks.
Luxury Envelopes
Captures Tiger Drylac coatings, CIMU 223009 corner cleats, dual-layer drain filters, and flush anti-slip sill covers.
Jointing & Gasket Detail
BC-S150 (MT150) Core Physical & Structural Specification Matrix
Engineering values directly sourced from factory drawings and GB/T 8478-2020 codes
| Metric | Specification Value |
|---|---|
| Frame Depth | 150mm depth (two-track and three-track configurations with insect screen modules) |
| Max Panel Weight | Up to 500kg per panel (heavy-duty carriage modules) |
| Max Panel Size | Up to 3.5m wide × 3.2m high per panel |
| Interlock Sightline | 28mm reinforced ultra-slim interlock (flush surface with no raised or recessed areas) |
| Interlock Seals | Four central seals (nylon interlock profiles + dual-layer composite gaskets) |
| Sealing Tiers | Six interlocking sealing tiers (frame-surrounding-sash construction) |
| Drainage Design | Integrated drainage track (continuous dual-layer filter covers + full-length drainage slots) |
| Jointing Process | CIMU integrated adhesive-injection corner cleats + pressure-injected leveling plates |
| Threshold System | Low-track thermal-break module + anti-slip threshold cover |
| Surface Coating | Advanced Austrian Tiger Drylac coating technology |
| Wall Thickness | Estimated load-bearing wall thickness: 2.0mm–2.5mm |
| Glass Rebate | Rebate width and compatible glass thickness |
| Wind Resistance | Expected to reach GB Class 9 (P3≥5.0kPa) |
| Water Tightness | Expected to reach GB Classes 4–5 (350Pa≤ΔP < 700Pa) |
| Air Permeability | Expected to reach GB Classes 7–8 (q1≤1.0m³/(m·h)) |
Hardware & Mechanics - 500kg Heavy Carriages, Injected Cleats & Kinetic Track Seals
Integrating 500kg heavy carriage modules, track seal blocks, and CIMU injected cleats to secure smooth kinetic longevity for oversized door sashes.
500kg Heavy Carriage Modules — Oversized Panel Kinematics
Engineered to carry single panels up to 500kg across 3.5m x 3.2m spans, ensuring smooth glide and structural durability.
Track Seal Blocks — Kinetic Corner Ingress Prevention
Outfits dedicated sealing blocks at upper and lower track intersections, sealing corner gaps during sash elevation and locking.
Dual-Layer Filtered Drainage — Anti-Backflow Engineering
Combines continuous drain slots with dual-layer filter covers, ensuring smooth outflow and blocking storm water backflow.
CIMU Injected Cleats & Leveling Plates — Joint Rigidity
Anchors frame corners and T-mullions via CIMU 223009 pin-injected cleats with leveling plates, guaranteeing seamless frame alignment.
28mm Slim Interlock with 4-Tier Seals — Flush Aesthetic
Integrates four central seals and polyamide hooks into 28mm slim profiles, delivering flush surfaces and reliable weather tightness.
Micro-Structure Driven Scenario Configuration & Engineering Matrix
Providing modular configurations tailored to oceanfront villas, barrier-free corridors, and hurricane zones to streamline architectural specification.
Hotel Bathrooms, Kitchen-Dining Spaces & Office Partition Configurations
Coordinate swing, pivot and linked sliding doors with matching finishes, selected glazing and ceiling-recessed track arrangements.
Submit project drawings to coordinate swing or pivot opening, double or triple top tracks, linked panel layouts, glazing, ceiling fixing and matching door finishes.
