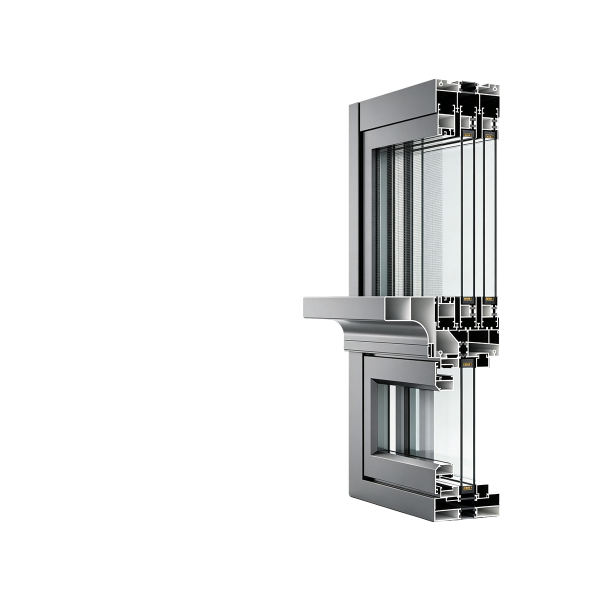

Left: 45° cutaway highlighting double-wrapped sashes, frame-track shared profiles, and 20mm interlocks; Right: 1:1 elevation drawing.
Where Buildings Blossom With Confidence
BC-S125 (XLB125) Panoramic Sliding Door System
| Share | |
|---|---|
| Categories | Aluminum Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Frame Depth | 124mm wide × 50mm high |
| Main Profile Wall Thickness | 2.5mm |
| Interlock Sightline | 20mm |
| Interlock Sightline | 28mm with a flush surface |
| Glass Rebate Width | 40mm |
| Thermal Break Strips | 24mm / 14.8mm PA66 |
| Sash Construction | Double-wrapped with concealed joints and hardware slots |
| Motorized Operation | Optional, with smart home and weather sensor integration |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
BC-S125 (XLB125) Panoramic Sliding Door: 20mm Slim Interlock & Double-Wrapped Sash
Featuring 2.5mm profiles, 20mm micro-interlocks, and double-wrapped sashes, the BC-S125 conceals joints and hardware grooves for seamless panoramic facades.

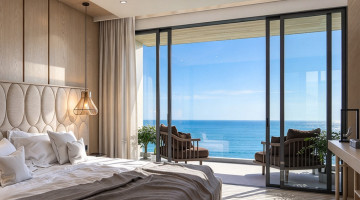

Rendered into pool terraces, garden pavilions, and showroom entrances, maximizing daylighting via ultra-slim frame sightlines.
Panoramic Living
Captures integrated sash handles, 40mm glass rebates, flush locksets, and concealed wall-side drainage channels.
Clean Edge Detailing
BC-S125 (XLB125) Core Physical & Structural Specification Matrix
Data extracted from official system manuals and CAD extrusion drawings
| Metric | Specification Value |
|---|---|
| Main Wall Thickness | 2.5mm throughout (selected components, including XLB065, reach 3.0mm) |
| Frame Dimensions | 124mm wide × 50mm high (two-track frame profile XLB045) |
| Interlock Sightline | 20mm ultra-slim sightline (section: 66mm wide × 20mm high) |
| Glass Rebate | 40mm-wide rebate (supports large-format insulated glass) |
| Thermal Barrier | 24mm / 14.8mm PA66 thermal break strips |
| Thermal Insulation | K=2.1W/(m²·K) |
| Sound Insulation | Rw=34dB |
| Wind Load | Chinese National Standard Class 8 |
| Water Tightness | Chinese National Standard Class 3 |
| Air Permeability | Chinese National Standard Class 4 |
| Structural Feature | Double-wrapped sashes + shared frame and track profiles |
| Handle Integration | One-piece handles integrated into the plain-stile and interlock covers |
| Drainage System | Concealed floor drainage (outward drainage through wall-side outlets; flush-recessed installation) |
| Max Sash Load | Recommended load per sash: ≤25kg–30kg |
| Max Sash Size | Width ≤1.8m; height ≤3.0m |
Hardware & Mechanics - Integrated Flush Locksets, Concealed Channels & Smart Drives
Integrating flush-mounted locksets with concealed hardware channels, the BC-S125 provides limit-stop, anti-collision, and motorized upgrades.
Integrated Flush Lockset — Aesthetics & Anti-Collision
Outfits integrated flush-mount locks with built-in stroke limits and buffer bumpers to ensure quiet sliding.
Concealed Hardware Channel — Zero Exposed Fasteners
Encases inner glass sashes within full outer covers, entirely concealing screw holes, joints, and hardware slots.
Multi-Tier Weatherstrips — Insect & Debris Barrier
Deploys multi-layer dense brush seals to prevent leaves and insects from intruding into sliding track channels.
Smart Motorized Upgrades — Home Automation Integration
Profile accommodates electric top tracks (XLB12513, 2.5mm wall), integrating motorized drives and weather sensors.
Micro-Structure Driven Scenario Configuration & Engineering Matrix
Providing modular configurations tailored to oceanfront villas, barrier-free corridors, and hurricane zones to streamline architectural specification.
Hotel Bathrooms, Kitchen-Dining Spaces & Office Partition Configurations
Coordinate swing, pivot and linked sliding doors with matching finishes, selected glazing and ceiling-recessed track arrangements.
Submit project drawings to coordinate swing or pivot opening, double or triple top tracks, linked panel layouts, glazing, ceiling fixing and matching door finishes.
Project & Technical References
Recommended Styles
Explore aluminum-wood door designs from our style library. Confirm the panel finish, frame configuration and dimensions for your project.
Flush Aluminum-Wood Door with HPL Finish — HBD007
HBD007
Concealed Aluminum-Wood Door with HPL Finish
BC2340
Flush Aluminum-Wood Door with HPL Finish
HBD004
Available Colors & Finishes
All wood grain finishes are bonded to the aluminum profile surface via vacuum heat transfer or PUR hot-melt lamination, ensuring zero batch-to-batch color deviation between metal frames and wooden door panels. For overseas projects, international RAL/NCS color cards are available for customized color matching.
Premium No. 14
BCAW20
Premium No. 15
BCAW19
Premium No. 16
BCAW18
Premium No. 11
BCAW17
Premium No. 12
BCAW16
Premium No. 13
BCAW15
Premium No. 18
BCAW14
Premium No. 10
BCAW13
Premium No. 17
BCAW12
Premium No. 2
BCAW11
Premium No. 3
BCAW10
Premium No. 9
BCAW09
Panoramic Sliding Door Technical Specification Download Hub
Providing engineering submittals, AutoCAD node details, and technical compliance reports tailored to developers, EPC contractors, and lead architects.
Request BC-S125 Corner & Handle Samples
Request a BC-S125 physical corner sample display kit and a one-piece handle sample to assess the construction and grip.
