Left: 45° cutaway highlighting 4-sided sub-frames (2.0mm-3.0mm), built-in sub-sill drainage, 28mm rebates, and 304 screens; Right: 1:1 elevation drawings.
Where Buildings Blossom With Confidence

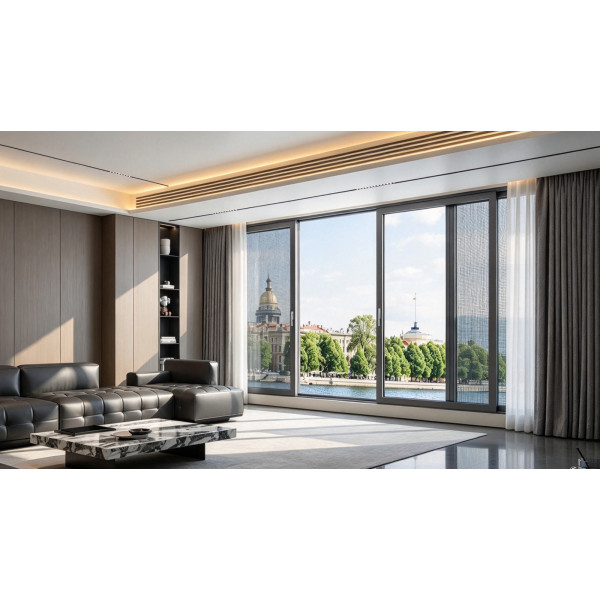

BC-MS100 (AUS-SD100) Australian Sub-Frame Sliding Door System
| Share | |
|---|---|
| Categories | Aluminum Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Main Profile Wall Thickness | 2.0mm |
| Frame Width Options | 100mm / 128mm / 150mm / 205mm |
| Stile Sightline | 49mm |
| Glass Rebate | 28mm |
| Installation Sub-Frame | Independent four-sided assembly with integrated drainage |
| Screen Door | Lockable with 304 stainless steel security mesh |
| Roller System | Bottom rollers with top positioning wheels |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
BC-MS100 (AUS-SD100) Australian Sub-Frame Sliding Door: Integrated Sub-Frame & 205mm 5-Track System
Built for AU/NZ codes, the BC-MS100 features 2.0mm walls, 49mm stiles, and independent sub-frames to accommodate brick and timber movement, with frame widths from 100mm to 205mm.
Rendered into Australian coastal residences, courtyard patios, and commercial hospitality suites, accentuating high transparency and rigid profiles.
Modern Living
Captures 90° mechanical frame joints, sub-frame transition channels, sub-sill water weeps, roller guides, and 304 stainless mesh weaves.
Jointing & Drainage
BC-MS100 (AUS-SD100) Core Physical & Structural Specification Matrix
Data sourced directly from factory specification sheets and extrusion drawings
| Metric | Specification Value |
|---|---|
| Main Wall Thickness | 2.0mm main profile walls (sub-frame profiles reach 2.5mm–3.0mm) |
| Frame Width | 100mm / 128mm / 150mm / 205mm (five-track configuration) |
| Glass Rebate | 28mm (accommodates insulated safety glazing with both panes tempered) |
| Stile Sightline | 49mm slim load-bearing stile sightline |
| Sub-frame System | Independent four-sided installation sub-frame with shielded drainage channels and water-barrier flanges |
| Screen System | Lockable sliding screen door with standard 304 high-transparency stainless steel security mesh |
| Screen Efficiency | 85% airflow + 99% insect exclusion (modular, replaceable screen) |
| Frame Joint | 90° mechanically bolted joints |
| Roller System | Bottom rollers + top positioning wheels |
| Thermal Insulation | K=3.4 W/(m²·K) |
| Sound Insulation | Rw=31dB |
| Wind Resistance | Chinese National Standard Class 8 |
| Water Tightness | Chinese National Standard Class 3 |
| Air Permeability | Chinese National Standard Class 4 |
| Max Sash Load | Recommended load per sash: ≤200kg–250kg |
| Max Sash Size | Recommended sash width ≤1.5m; height ≤2.7m |
Hardware & Mechanics - Sub-Frame Transition, Dual-Roller Guides & Lockable Screen Hardware
Integrating 4-sided sub-frames, bottom rollers with top guide wheels, and lockable security screens to ensure kinetic stability and jobsite fit.
4-Sided Sub-Frame Assembly — Structural Settlement Absorption
Outfits a dedicated 4-sided sub-frame acting as a structural transition layer, accommodating brick unevenness and timber frame movement.
Sub-Sill Drainage Channel — Engineered Storm Water Discharge
Features built-in drainage channels and barrier flanges in the sub-sill, routing track runoff safely outdoors to prevent internal water ingress.
Phased Jobsite Installation — Main Frame Damage Protection
Enables sub-frames to be installed during rough construction for plastering, with main frames secured later to eliminate scratches and mortar contamination.
Bottom Rollers + Top Guide Wheels — Anti-Rattle Balance
Combines heavy-duty bottom wheels with upper positioning rollers to stabilize vertical sash alignment and eliminate wind-induced rattling.
Lockable Screen Sash with 304 Mesh — Ventilation & Security
Integrates lockable sliding insect screens with 304 stainless mesh, delivering 85% airflow and 99% insect exclusion with anti-cut protection.
Micro-Structure Driven Scenario Configuration & Engineering Matrix
Providing modular configurations tailored to oceanfront villas, barrier-free corridors, and hurricane zones to streamline architectural specification.
Hotel Bathrooms, Kitchen-Dining Spaces & Office Partition Configurations
Coordinate swing, pivot and linked sliding doors with matching finishes, selected glazing and ceiling-recessed track arrangements.
Submit project drawings to coordinate swing or pivot opening, double or triple top tracks, linked panel layouts, glazing, ceiling fixing and matching door finishes.
Project & Technical References
Recommended Styles
Explore aluminum-wood door designs from our style library. Confirm the panel finish, frame configuration and dimensions for your project.
Flush Aluminum-Wood Door with HPL Finish — HBD007
HBD007
Concealed Aluminum-Wood Door with HPL Finish
BC2340
Flush Aluminum-Wood Door with HPL Finish
HBD004
Available Colors & Finishes
All wood grain finishes are bonded to the aluminum profile surface via vacuum heat transfer or PUR hot-melt lamination, ensuring zero batch-to-batch color deviation between metal frames and wooden door panels. For overseas projects, international RAL/NCS color cards are available for customized color matching.
Premium No. 14
BCAW20
Premium No. 15
BCAW19
Premium No. 16
BCAW18
Premium No. 11
BCAW17
Premium No. 12
BCAW16
Premium No. 13
BCAW15
Premium No. 18
BCAW14
Premium No. 10
BCAW13
Premium No. 17
BCAW12
Premium No. 2
BCAW11
Premium No. 3
BCAW10
Premium No. 9
BCAW09
AUS-SD100 Australian Sub-Frame Sliding Door Technical Specification Download Hub
Providing engineering submittals, AutoCAD sub-frame node details, and technical compliance reports tailored to developers, EPC contractors, and architects.
