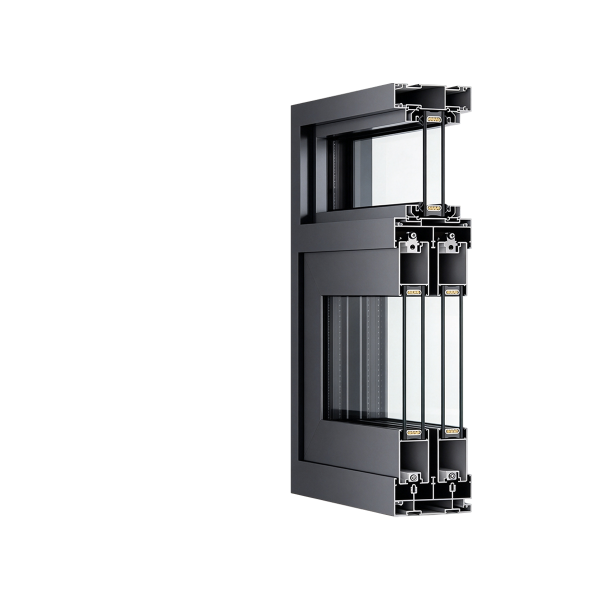

Left: 45° cutaway highlighting 25mm frame sightlines, 65mm sashes, inverted locks, wide sill channels, and anti-sway rollers; Right: 1:1 elevation drawing.
Where Buildings Blossom With Confidence
BC-S103 (Frank Series) Slim Commercial Sliding Door
| Share | |
|---|---|
| Categories | Aluminum Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Frame Sightline | 124mm wide × 50mm high |
| Sash Stile Sightline | 2.5mm |
| Interlock Sightline | 20mm |
| Standard Glazing | 28mm with a flush surface |
| Locking System | 40mm |
| Top Guide Rollers | Adjustable anti-sway rollers |
| Interlock Seals | Multi-tier gaskets and siliconized brush seals |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
Engineered with 25mm slim sightlines and inverted steel locksets, the BC-S103 balances minimalist commercial daylighting with cost-effective acoustic sealing. Rendered into office meeting rooms and apartment balcony partitions, accentuating streamlined profiles and natural lighting. Captures flush-mounted strike plates, interlocking multi-brush weatherstrips, 5+20A+5 glazing beads, and wide track channels. Data sourced directly from factory specification sheets, with undeclared structural limits derived from international commercial sliding standards.
BC-S103 (Frank Series) Slim Commercial Sliding Door: 25mm Sightline & Inverted Locks
Commercial & Residential Envelopes
Clean Profile Interfaces
BC-S103 (Frank Series) Core Physical & Structural Specification Matrix
Metric Specification Value
Frame Sightline
25mm ultra-slim frame sightline
Sash Stile Sightline
65mm
Interlock Sightline
66mm
Standard Glazing
5mm + 20A + 5mm insulated glazing (20mm cavity)
Locking Mechanism
Inverted steel lockset (locking pins on the frame; strike plates inside the sash)
Top Guide Mechanism
New upper track with post-installed, adjustable anti-sway guide rollers
Interlock Sealing
Interlocking multi-tier gaskets and siliconized brush seals
Bottom Track Design
Wide track channels for drainage and easy cleaning
Track Variations
Two-track and three-track configurations with insect screens; high-track and low-track options
Roller System
Heavy-duty roller modules for smooth sliding and low operating force
Frame Depth
Nominal 103mm series frame (two-track / three-track)
Wall Thickness
Estimated load-bearing wall thickness: 1.4–1.8mm; 6063-T5 primary aluminum
Max Sash Weight
Recommended load per sash: ≤160kg–200kg
Wind Resistance
Expected GB Classes 5–6 (3.0kPa≤P3<3.5kPa)
Water Tightness
High-track exterior door configuration: expected GB Classes 3–4 (250–350Pa)
Air Permeability
Expected GB Classes 5–6 (q1≤1.5m³/(m·h))
Sound Insulation
Estimated Rw≈30–32dB
Hardware & Mechanics-Inverted Locksets, Anti-Sway Guide Wheels & Interlocking Seals
Engineered with inverted steel locks, adjustable top anti-sway rollers, and multi-tier interlocking seals for long-term commercial sliding ease. Installs locking pins onto frames and flush strike plates onto sashes, eliminating protruding hardware while easing on-site adjustments. Employs adjustable post-installed top guide rollers to compress track sightlines, stabilize sash balance, and prevent operational rattling. Outfits multi-tier EPDM gaskets and siliconized brush seals at interlocks, boosting acoustic sealing while cushioning sash closing impacts. Integrates specialized load-bearing rollers to minimize rolling friction and initial sliding resistance across heavy glass panels. Providing modular configurations tailored to oceanfront villas, barrier-free corridors, and hurricane zones to streamline architectural specification. Coordinate swing, pivot and linked sliding doors with matching finishes, selected glazing and ceiling-recessed track arrangements. Submit project drawings to coordinate swing or pivot opening, double or triple top tracks, linked panel layouts, glazing, ceiling fixing and matching door finishes.
Inverted Steel Lockset System — Streamlined Profile Surfaces
Top Anti-Sway Guide Wheels — Slim Sightlines & Kinetic Stability
Interlocking Multi-Tier Seals — Acoustic Damping & Anti-Impact Buffer
Heavy-Duty Roller Modules — Reduced Operating Friction
Micro-Structure Driven Scenario Configuration & Engineering Matrix
Hotel Bathrooms, Kitchen-Dining Spaces & Office Partition Configurations
