Armored Cast Aluminum Entry Door with Relief Engraving Craft
This armored cast aluminum entry door is developed for villas, clubhouses, hotels, and premium architectural
projects that require dimensional surface expression, reinforced security structure, and project-specific pattern
control. Mainstream relief processing starts from CAD and 3D modeling, then transfers the approved drawing into a
5-axis CNC engraving milling system for integrated carving across the full aluminum panel, with machining accuracy
up to 0.1 mm and the ability to reproduce raised, recessed, and cut-through design details with long-term outdoor
durability.
Relief Craft
Integrated CNC relief carving shapes the entire aluminum plate in one process, creating crisp dimensional
patterns, hollow details, and stronger sculptural depth than flat decorative finishes.
Project Fit
Suitable for villas, hotels, clubs, show homes, and premium commercial entrances where facade identity,
customized artwork, and weather-resistant decorative depth are part of the design brief.
Custom Support
Available with custom CAD pattern development, relief depth, hollow sections, fluorocarbon coating,
hand-antiqued finish, opening direction, frame depth, lock system, and project-based OEM/ODM support.
Armored Cast Aluminum Security Doors, Engineered for Lasting Protection
Aerospace-Grade Solid Cast Panel
Made from primary aluminum ingots through high-pressure precision casting, the solid door
panel is weld-free and built for superior impact resistance. A thicker cast aluminum panel helps eliminate
weak seams at the source and provides stronger protection than conventional steel doors.
Reinforced Composite Door Leaf
The door leaf combines a cast aluminum face panel, a high-strength steel skeleton box, and
aerospace aluminum foil filling. Four-sided steel reinforcement helps prevent deformation and keeps the
entire door structure stable over long-term project use.
Armored Edge Sealing System
Rigid aerospace aluminum edging protects the door perimeter, while imported
weather-resistant seals create a tighter air barrier. This helps prevent edge cracking or delamination and
improves sound insulation, thermal performance, and daily durability.
Integrated Anti-Pry Lock Reinforcement
The lock area is wrapped with a single high-strength metal plate and fastened directly
into the steel core with precision screws. This reinforced structure reduces gaps, prevents looseness around
the lock body, and helps resist forced-entry attacks.
Armored Relief Surface Craftsmanship
Relief Engraved Armored Aluminum Door Styles for Signature Projects
Explore cast aluminum entry door designs developed through CNC relief engraving for villas, hotels, clubs,
show homes, and premium commercial projects. Each design can be coordinated by carving depth, hollow pattern,
facade tone, opening format, and project detailing.
Relief Style

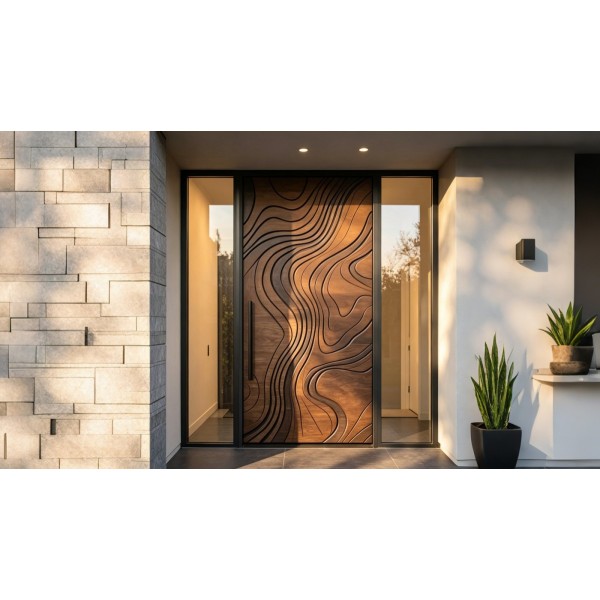

Relief Engraved Cast Aluminum Entry Door
Premium entrance series combining armored cast aluminum structure with dimensional CNC
carving, sculptural patterns, and project-specific surface finishing.
The gallery presents cast aluminum entrance doors developed through CNC relief engraving. These designs
emphasize dimensional carving, precise pattern restoration, optional hollow details, and durable
fluorocarbon or hand-finished surfaces for villas, boutique hospitality, clubs, and other projects that
pursue signature architectural entrances.
Relief Pattern & Surface Finish Customization
Choose geometric carving, artistic relief, cut-through detailing, and project-matched finishing
effects for signature entrance programs.
Mainstream aluminum relief production starts with CAD and 3D modeling, then imports the approved file into a
5-axis CNC engraving milling system for integrated carving across the full aluminum plate. After engraving, the
workpiece is polished and deburred, then completed with fluorocarbon coating, hand-antiqued finishing, or
other project-specified surface treatments to combine dimensional depth, weather resistance, and a service life
of around 15 to 20 years.
Brushed Antique Brass
Brushed Antique Copper
Fine Line Titanium Grey
Cross Weave Titanium Grey
Classic Brown Gold
Brushed White
Starry Grey
Turkish Grey
BMW Grey
Crystal Black
Titanium Grey
Fine Sand Black
Purple Clay Red
Coffee Gold
Meteorite Grey
Custom RAL Color
Door Type & Opening Direction
Select the configuration that best fits access planning while keeping relief layout and carving
balance aligned with the entrance design.
Door type, opening direction, frame depth, and hardware position can be configured according to project
drawings, wall conditions, handle layout, and relief pattern orientation or centered carving requirements.
Door Type
Single Door
Double Door
Pivot Door
Double Unequal Door
Opening Direction
Left Hand Inswing
Right Hand Inswing
Offset Pivot Swing
Left Hand Outswing
Door Leaf Thickness & Surface Selection
Specify the required door leaf panel thickness from 2mm to 8mm, then match the visible
surface texture to the project facade and interior palette.
Panel thickness can be specified according to door size, strength requirements, and project drawings, while
surface textures coordinate with the facade, interior palette, and hardware finish.
Step Rise Elegant Grey
Cross Weave
Coffee Frosted Gold
Brushed Hong Kong Gold
Star Rain
Rain Star Elegant Grey
