Left: 45° cutaway highlighting 7mm sightlines, 45mm sash cavities, single-glazing rebates, flush frame joints and 45mm casing sections; Right: 1:1 swing-door and slim-top-portal elevation drawings.
Where Buildings Blossom With Confidence

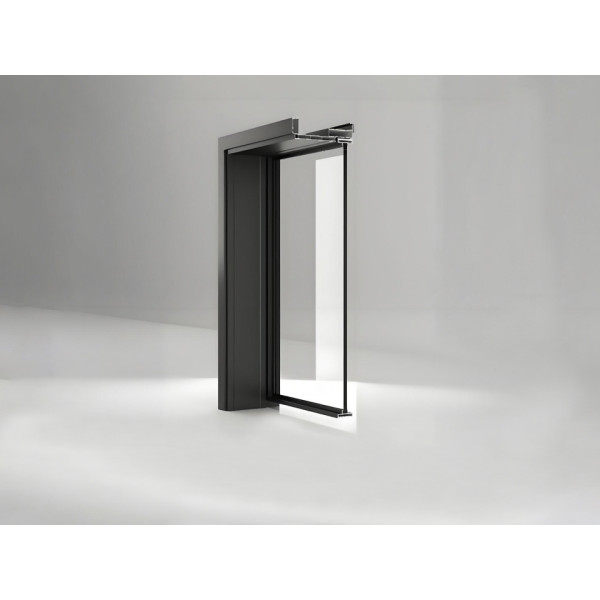

Pioneer No.1 Slim Glass Swing Door
| Share | |
|---|---|
| Categories | Aluminum Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Visible Frame Width | 7mm |
| Sash Depth | 45mm |
| Material | 6063-T5 aluminum alloy |
| Glass Options | 8mm or 10mm tempered glass |
| Locking | Quiet magnetic latch |
| Hinges | Standard micro-gap hinges |
| Frame Options | Flush-edge or 45mm double casing |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
Pioneer No.1 7mm Micro-Sightline Swing Door
Designed for hotel bathrooms, en-suite washrooms and walk-in wardrobes, Pioneer No.1 combines 7mm visible stiles, 45mm sash cavities and an all-aluminum body. Flush-edge and 45mm double-casing variants resist moisture-related frame rot, preserve over 92% of the view and provide quiet, close-fitting closure.
Rendered into luxury hotel bathrooms, villa walk-in wardrobes and private club washrooms, emphasizing fine black frames and diffused light through decorative glass.
Luxury Hospitality
Captures 7mm profile edges with reeded or wired glass, concealed gasket joints, micro-gap hinge pivots, magnetic latch alignment and 45mm modular snap-in casing joints.
Minimalist Precision
Other Highlights of This Series
8 Wired & 15 Embossed Glass Options
The glazing rebates support 8 metal-wired and 15 embossed gold-diamond glass designs in the catalogue, including wired glass 01–08, ultra-clear large and small reeded glass, ultra-clear crystal, double-sided gold-diamond oil-sand, pear and silver-haze glass, with options for different privacy and light-transmission needs.
German-Imported CNC Precision Machining
Profile cutting and corner-key assembly use German-imported precision equipment to create flush, tight mitre joints and maintain the long-term geometric squareness of the sash with its 7mm sightline.
Core Specifications & Differential Variant Matrix
Data extracted directly from extrusion drawings, sharing a 7mm profile chassis with different casings to suit a range of wall openings.
Unified Baseline Specifications
| Metric | Specification Value |
|---|---|
| Door Stile Visible Face Width | 7mm ultra-slim visible face |
| Door Leaf Structural Thickness | 45mm structural cavity |
| Profile Material & Finish | High-durability 6063-T5 aluminum alloy with an internationally advanced coating process |
| Glass Rebate Type | Single-glazed stile assembly supporting 8mm or 10mm tempered glass |
| Moisture & Corrosion Resistance | All-aluminum body: 100% waterproof, moisture-proof, mold-proof and corrosion-resistant |
| Locking & Hardware System | Standard minimalist handle and magnetic lockset with micro-gap hinges |
07x45 Flush-Edge vs Slim Top Portal Comparison
| Metric | 07x45 Pioneer No.1 Flush-Edge Swing Door | 07x45 Slim Top Portal Series (45mm Casing) |
|---|---|---|
| Door Stile Visible Face Width | 7mm ultra-slim visible face | 7mm ultra-slim visible face |
| Door Leaf Thickness | 45mm structural thickness | 45mm structural thickness |
| Hardware & Lockset Configuration | Micro-gap hinges + minimalist magnetic lock | Micro-gap hinges + minimalist magnetic lock |
| Frame & Casing Trim Style | Flush ultra-slim frame with no protruding casing | 45mm classic double-casing trim + snap-in plates |
| Top Frame Trim Design | Standard flush top frame construction | Dedicated ultra-narrow top trim for the slim top portal |
| Outer Frame Installation Depth | Compact single-side flush mounting surface | 65mm-deep double-casing profile with snap-in plates |
| Wall Opening Compatibility | Flush pre-set walls or single-side plastered openings | Conventional 100–240mm solid walls with double-sided wrapping |
| Recommended Applications | Modern minimalist flush bathroom doors and wardrobe partitions | Standard hotel guest-room bathroom doors and full-height finished washrooms |
Micro-Gap Hinge Kinetics, Minimalist Magnetic Locks & Precision Hardware
Custom-engineered for 7mm profiles, the Pioneer No.1 system combines dedicated micro-gap hinges and minimalist magnetic locks for stable support, quiet closing and precise alignment with minimal exposed hardware.
Micro-Gap Dedicated Hinges — Minimal Clearance & Anti-Sagging
Precision pivots sit inside the 45mm sash cavity to maintain alignment and resist sagging. Inferred specifications: 1.5–2.0mm clearance (based on hinge fit tolerances) and 40–45kg per sash (based on a reinforced aluminum frame with single glazing).
Minimalist Magnetic Latches — Silent Flush Engagement
A minimalist ergonomic handle operates the magnetic lockset. The latch retracts flush when open to prevent clothing snags, then engages magnetically with the strike box as the door closes for quiet closing without metal impact.
Three-Tier Hinge Configuration
Alongside the standard micro-gap hinge, catalogue page 41 lists standard market hinges and upgraded market hinges, allowing bulk procurement projects to select hardware according to their budget.
Micro-Structure Driven Scenario Configuration & Engineering Matrix
Providing modular configurations tailored to oceanfront villas, barrier-free corridors, and hurricane zones to streamline architectural specification.
Hotel Bathrooms, Kitchen-Dining Spaces & Office Partition Configurations
Coordinate swing, pivot and linked sliding doors with matching finishes, selected glazing and ceiling-recessed track arrangements.
Submit project drawings to coordinate swing or pivot opening, double or triple top tracks, linked panel layouts, glazing, ceiling fixing and matching door finishes.
Project & Technical References
Recommended Styles
Explore aluminum-wood door designs from our style library. Confirm the panel finish, frame configuration and dimensions for your project.
Flush Aluminum-Wood Door with HPL Finish — HBD007
HBD007
Concealed Aluminum-Wood Door with HPL Finish
BC2340
Flush Aluminum-Wood Door with HPL Finish
HBD004
Available Colors & Finishes
All wood grain finishes are bonded to the aluminum profile surface via vacuum heat transfer or PUR hot-melt lamination, ensuring zero batch-to-batch color deviation between metal frames and wooden door panels. For overseas projects, international RAL/NCS color cards are available for customized color matching.
Premium No. 14
BCAW20
Premium No. 15
BCAW19
Premium No. 16
BCAW18
Premium No. 11
BCAW17
Premium No. 12
BCAW16
Premium No. 13
BCAW15
Premium No. 18
BCAW14
Premium No. 10
BCAW13
Premium No. 17
BCAW12
Premium No. 2
BCAW11
Premium No. 3
BCAW10
Premium No. 9
BCAW09
