Standard Magnetic Lock System
A magnetic lock body is supplied as standard. Upgrade to an inline magnetic silent lock or a 7240 minimalist magnetic lock body for magnetic engagement on closing and reduced latch-impact noise.
Where Buildings Blossom With Confidence
Synchronous Texture Aluminum Frame Wood Door
| Share | |
|---|---|
| Categories | Alu-Wood Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Product Type | Paint-Free Aluminum Frame Wood Door |
| Opening Method | Swing |
| Door Leaf Thickness | 45 mm |
| Panel Thickness Options | 5 mm or 9 mm per Side |
| Aluminum Alloy | 6063-T5 Primary Aluminum |
| Aluminum Skeleton Wall Thickness | 2.0 mm |
| Aluminum Edge Banding Thickness | 2.0 mm |
| Core Material | Aluminum Honeycomb / Graphite Sound-Insulation Board |
| Surface Finish | Synchronous Embossed Woodgrain |
| Production Time | 15-25 Days |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
Synchronized woodgrain panels, a 2.0mm aluminum skeleton and an aluminum honeycomb core create a natural wood feel with scratch, moisture and warp resistance. Construction, material, finish and sizing specifications for the Synchronous Texture Aluminum Frame Wood Door, supporting project selection and fabrication planning.

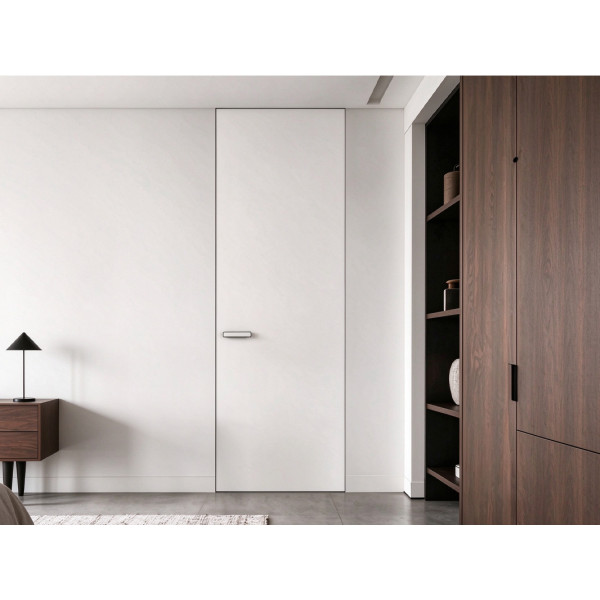

Synchronous Texture Aluminum Frame Wood Door
Synchronous Texture Door Engineering Specifications
Engineering Metric Specification Value
Standard Door Leaf Thickness
45mm structural door leaf; two 5mm panels or two 9mm panels available
Main Load-Bearing Aluminum Skeleton
2.0mm wall thickness throughout the primary 6063-T5 aluminum alloy skeleton
Door Leaf Perimeter Edge Banding
One-piece aluminum edge banding with a 2.0mm wall thickness
Aluminum Casing Profile & Wall Thickness
30mm ultra-narrow casing with a 1.6mm main profile; or 45mm casing with a 1.8–2.0mm main profile
Acoustic Damping Core
High-density aviation-grade aluminum honeycomb core / homogeneous graphite sound-insulation board filling
Surface Pressing & Finish Options
Synchronous pressing: double-synchronous, super skin-feel, new rain-grain and micro-synchronous surfaces
Base Material Weathering Performance
6–11% moisture content; resistance to a 100°C temperature differential without cracking
Standard & Maximum Fabrication Size
Standard: 2250 × 920mm
Maximum: 3000 × 1220mm for floor-to-ceiling doors
Clear Opening & Frame Sizing Formulas
Clear opening width + 50 = frame height
Door leaf width + 34 = frame width
Door leaf height + 26 = frame height, including 10mm bottom clearance
All formula dimensions are in millimeters.
Whole-Door Sound Insulation
Estimated weighted sound reduction index: Rw ≈ 30–33 dB with graphite sound-insulation board
Magnetic Locks, Concealed Hinges & Hardware Compatibility
Configure magnetic locks, concealed hinges and compatible branded hardware for quiet closing, precise alignment and reliable operation of the Synchronous Texture Aluminum Frame Wood Door. Standard 3D adjustable concealed hinges; confirm X/Y/Z adjustment with the selected model. Options include the S-HG89 load-bearing hinge or S-HG88 hydraulic self-closing hinge, with the latter providing smooth automatic return and closure. Hardware mortises accommodate compatible Häfele, SIMON and Greiff kits. Match the selected kit to the door profile, lock-body dimensions and hinge mounting requirements. Configure panel finishes, aluminum casings, core materials and hardware to suit your interior door requirements.
Configure opening layout, laminated or insulated glazing, track and roller capacity, drainage, sealing, safety screening, and finishes around span, exposure, and daily-use requirements.
Submit project drawings for opening-layout coordination, oversized-sash deflection review, roller-load verification,
anti-derailment detailing, concealed-drainage review, and direct engineering budget confirmation.
Heavy-Duty Concealed Hinges
Hardware Brand Compatibility
Project Applications & Door Configuration Options
Synchronous Texture Aluminum Frame Wood Door Configurations
Coastal Penthouses, Large-Span Balconies & High-Rise Utility Configurations
Verified Project & Laboratory Evidence
Recommended Styles
Explore aluminum-wood door designs from our style library. Confirm the panel finish, frame configuration and dimensions for your project.

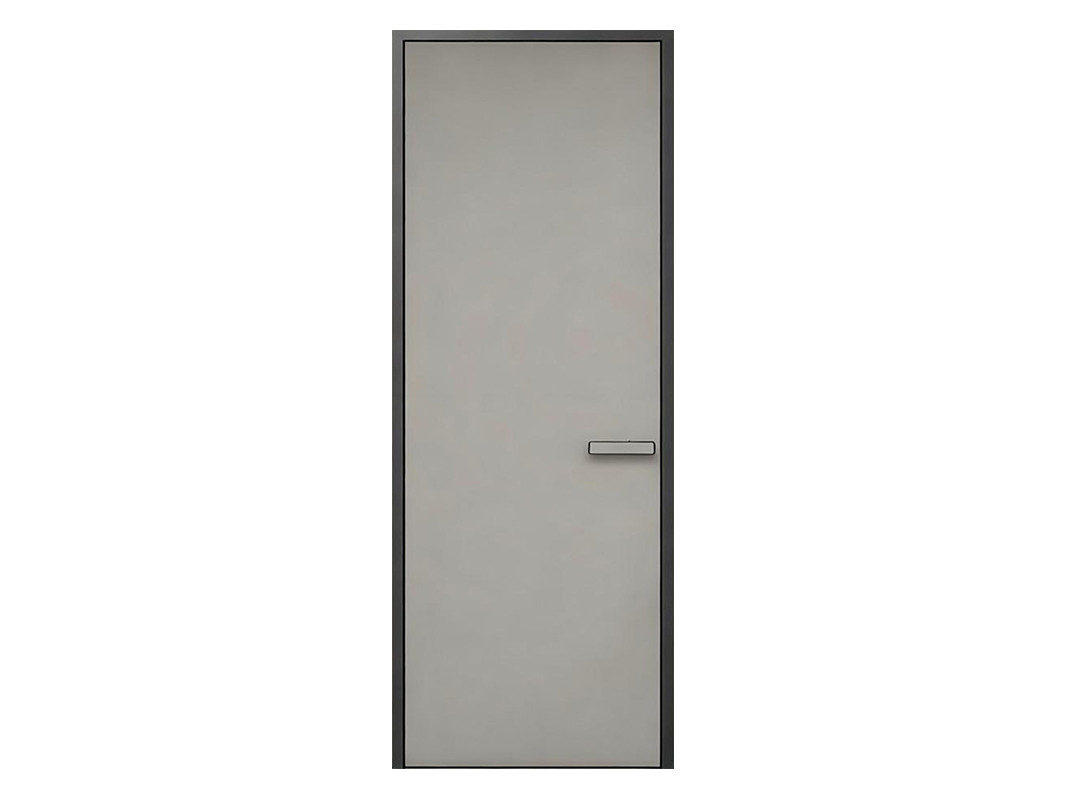

Flush Aluminum-Wood Door with HPL Finish — HBD007
HBD007

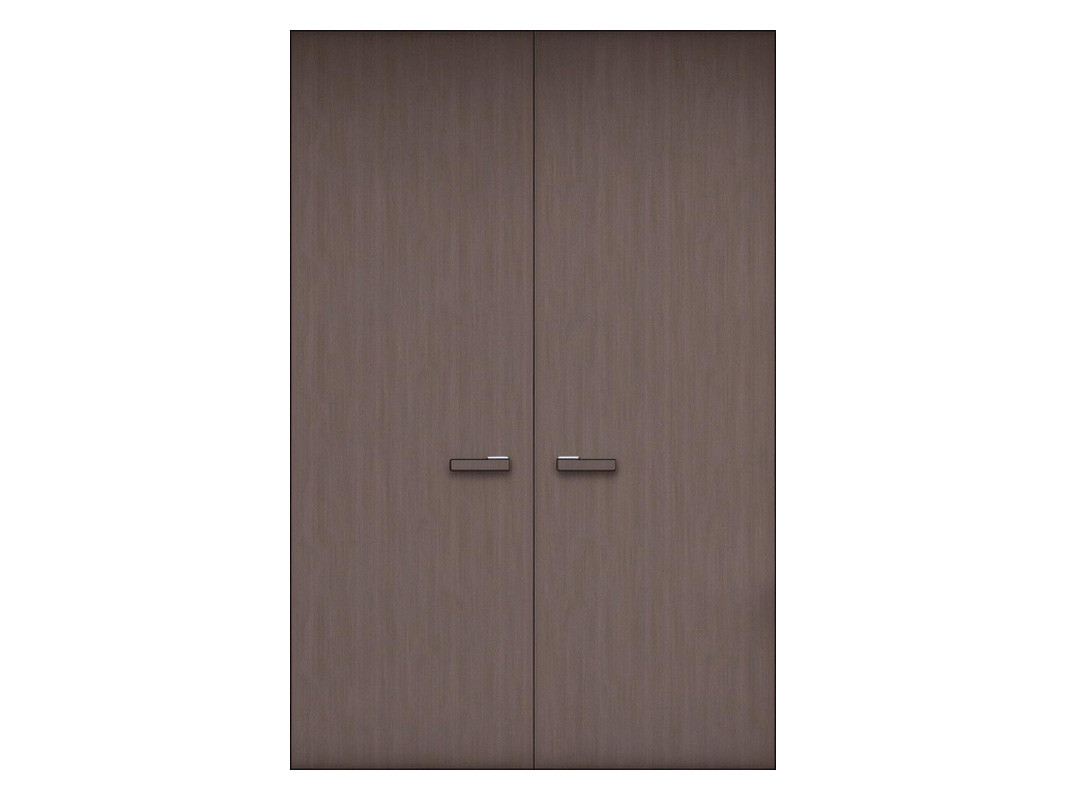

Concealed Aluminum-Wood Door with HPL Finish
BC2340

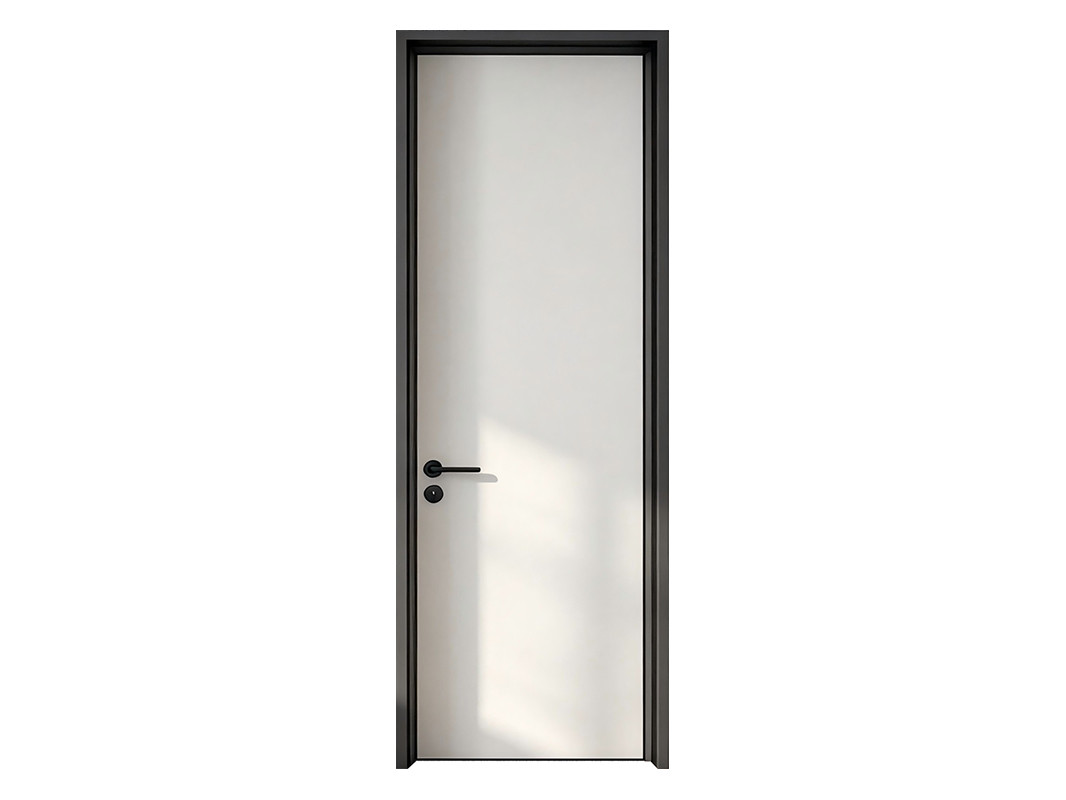

Flush Aluminum-Wood Door with HPL Finish
HBD004
Available Colors & Finishes
All wood grain finishes are bonded to the aluminum profile surface via vacuum heat transfer or PUR hot-melt lamination, ensuring zero batch-to-batch color deviation between metal frames and wooden door panels. For overseas projects, international RAL/NCS color cards are available for customized color matching.
Premium No. 14
BCAW20
Premium No. 15
BCAW19
Premium No. 16
BCAW18
Premium No. 11
BCAW17
Premium No. 12
BCAW16
Premium No. 13
BCAW15
Premium No. 18
BCAW14
Premium No. 10
BCAW13
Premium No. 17
BCAW12
Premium No. 2
BCAW11
Premium No. 3
BCAW10
Premium No. 9
BCAW09
