Special 3D Adjustable Concealed Hinges
All concealed doors come standard with special 3D adjustable concealed hinges; fully invisible when closed, door leaf flush with wall; supports X/Y/Z fine-tuning to maintain the ideal 3mm continuous door gap.
Where Buildings Blossom With Confidence
Coplanar Wall-Integrated Concealed Door
| Share | |
|---|---|
| Categories | Alu-Wood Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Product Type | Wall-Integrated Concealed Interior Door |
| Frame Series | 55 Concealed / 58 Wall-Panel / 54 No-Groove Plaster |
| Main Casing Thickness | 2.0mm |
| Secondary Casing Thickness | 1.5mm |
| Aluminum Skeleton | 1.8–2.0mm |
| Aluminum Edge Banding | 2.1mm, HY-18 Heavy-Duty Flush Edge |
| Door Core | High-Density Aluminum Honeycomb |
| Panel Configuration | Two 9mm Panels: Fireproof / Solid Wood Multilayer / Carbon Crystal |
| Standard Hinges | 3D Adjustable Concealed Hinges |
| Production Time | 15-25 Days |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
Wall-panel profiles and concealed plaster-in frames create a flush door-wall surface without projecting trim. Custom door heights up to 3000mm support seamless floor-to-ceiling interiors. Frame series, coplanar construction, opening modes and sizing specifications for the Coplanar Wall-Integrated Concealed Door, supporting project selection and installation planning.

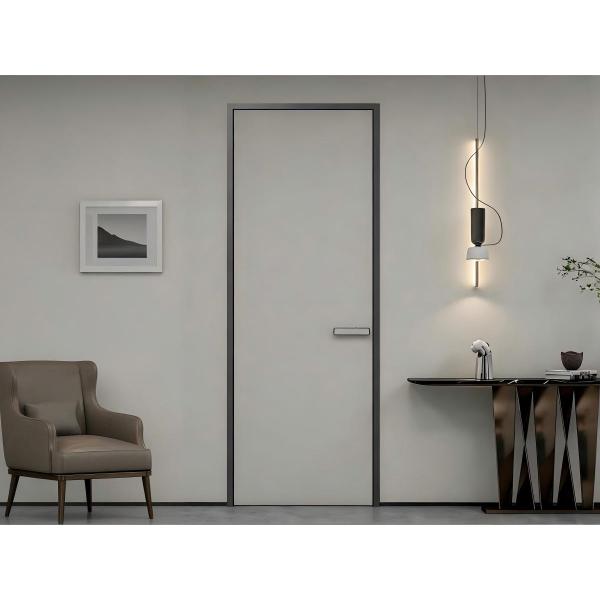

Coplanar Wall-Integrated Concealed Door
Coplanar Wall-Integrated Concealed Door Engineering Specifications
Engineering Metric Specification Value
Concealed Door Frame Structure Series
55 concealed door series / 58 wall-panel concealed door / 54 no-groove plaster model
Frame Main Casing Profile Wall Thickness
Main casing wall 2.0mm (secondary 1.5mm, single-wrap clip 1.1mm)
Door Leaf Internal Aluminum Keel Wall Thickness
1.8–2.0mm primary aluminum keel load-bearing frame
Door Leaf Perimeter Aluminum Edge Banding
2.1mm heavy-duty flush aluminum edge banding (HY-18 main edge)
Opening/Closing Operation Mode
Flush-inswing, flush-outswing, inner-flush-inswing (single/double/transom styles available)
Door-Wall Coplanar Integrated Construction
58 frame with integrated wall-panel clip-in groove; 54 frame with barbed plaster-leveling flange
Door Leaf Core & Panel Configuration
Double 9mm fireproof/solid-wood-multilayer/carbon-crystal panels + internal high-density aluminum honeycomb
Maximum Large-project Fabrication Size
Standard 2250×920mm; custom engineering supports 3000mm × 1220mm (floor-to-ceiling hidden door)
Clear Opening Frame Sizing Formula
Clear width + 50 = frame height
Leaf width + 34 = frame width
Leaf height + 26 = frame height
All formula dimensions are in millimeters.
Coplanar Closed-door Gap Control
Closed-state exterior shadow gap strictly maintained at 3.0–3.5mm
3D Concealed Hinges, Hydraulic Self-Closing & Magnetic Locks
Coordinate adjustable concealed hinges, optional hydraulic self-closing and magnetic locks with the flush door-wall construction. For handleless corridor hidden doors requiring automatic return, recommended S-HG88 hydraulic self-closing hinge with buffered self-closing and positioning, no external door closer needed. Recommended keyless integrated inline magnetic lock or 7240 minimalist magnetic lock body, equipped with concealed floor stop; push to enter, close silently. Coordinate wall panels, concealed frames and opening modes for minimalist villa corridors, exhibition VIP rooms and executive office suites. Coordinate wall-panel joints, frame series, opening directions and concealed hardware to maintain a continuous coplanar interior. Submit project drawings to coordinate the 55, 58 or 54 frame series, wall-panel connections, plaster detailing, opening direction, shadow gaps and concealed hardware.
Hydraulic Self-closing Buffer Hinge (S-HG88)
Inline Magnetic Silent Lock & Floor Stop
Project Applications & Door Configuration Options
Coplanar Wall-Integrated Concealed Door Configurations
Villa Corridors, Exhibition VIP Rooms & Executive Suite Configurations
Project & Technical References
Recommended Styles
Explore aluminum-wood door designs from our style library. Confirm the panel finish, frame configuration and dimensions for your project.
Flush Aluminum-Wood Door with HPL Finish — HBD007
HBD007
Concealed Aluminum-Wood Door with HPL Finish
BC2340
Flush Aluminum-Wood Door with HPL Finish
HBD004
Available Colors & Finishes
All wood grain finishes are bonded to the aluminum profile surface via vacuum heat transfer or PUR hot-melt lamination, ensuring zero batch-to-batch color deviation between metal frames and wooden door panels. For overseas projects, international RAL/NCS color cards are available for customized color matching.
Premium No. 14
BCAW20
Premium No. 15
BCAW19
Premium No. 16
BCAW18
Premium No. 11
BCAW17
Premium No. 12
BCAW16
Premium No. 13
BCAW15
Premium No. 18
BCAW14
Premium No. 10
BCAW13
Premium No. 17
BCAW12
Premium No. 2
BCAW11
Premium No. 3
BCAW10
Premium No. 9
BCAW09
