Integrated Locking Hardware
Recommended inline magnetic silent lock or 7240 minimalist magnetic lock body; lock panel color supports customized matching with door leaf finish wood grain or micro-carved colored lines.
Where Buildings Blossom With Confidence

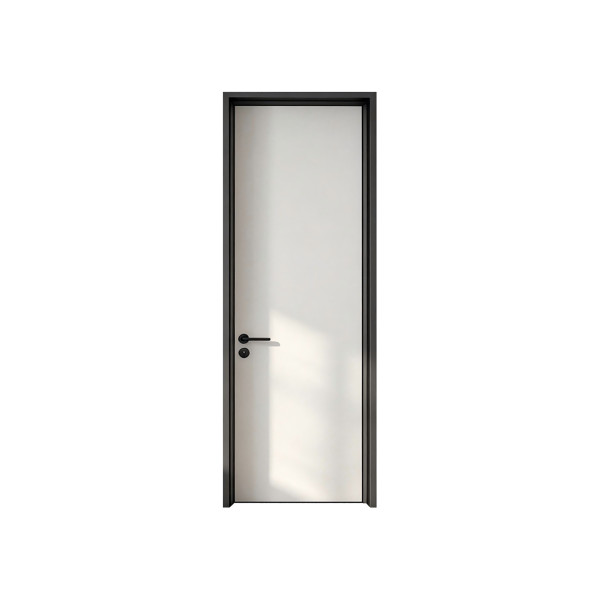

CNC Micro-Carved & Colored Aluminum-Wood Door
| Share | |
|---|---|
| Categories | Alu-Wood Doors |
| Brand | BLOSSOM CHEER Door And Window Project Manufacturer |
| Product Type | CNC Micro-Carved & Colored Aluminum-Wood Door |
| Surface Process | 5-Axis CNC Micro-Carving & Artistic Color Filling |
| Door Leaf Thickness | 45–50mm |
| Aluminum Skeleton | 2.0mm |
| Aluminum Edge Banding | 2.0mm / 2.1mm |
| Core Options | Aluminum Honeycomb / Graphite Sound & Thermal Insulation Board |
| Panel Options | Carbon Crystal Board / Solid Wood Multilayer Board / Fire-Resistant Board |
| Carving Depth | Approx. 0.8–1.2mm |
| Lock Options | Inline Magnetic Silent Lock / 7240 Minimalist Magnetic Lock |
| Production Time | 15-25 Days |
| FOB port | Guangzhou |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Detail Information
Precision CNC micro-carving and hand-colored recessed lines bring artistic detail to carbon-crystal panels, supported by a 2.0mm aluminum structure. Construction, material, carving and sizing specifications for the CNC Micro-Carved & Colored Door, supporting project selection and fabrication planning.
CNC Micro-Carved & Colored Door
CNC Micro-Carved Door Engineering Specifications
Engineering Metric Specification Value
Micro-Carving Core Process
Five-axis CNC ultra-fine micro-carving with artistic color-filling paintwork
Door Leaf Thickness & Structural Composition
45–50mm aluminum-wood composite door leaf with two 9mm fire-resistant or multilayer panels
Internal Load-Bearing Skeleton & Edge Banding
2.0mm aluminum skeleton with 2.0mm or 2.1mm ultra-narrow flush aluminum edge banding
Door Core Filling Structure
High-strength aluminum honeycomb core / homogeneous graphite sound and thermal insulation board
Panel Facing Materials
Moisture-resistant carbon-crystal board / solid-wood multilayer board / eco-friendly, wear-resistant fire-resistant board
Moisture Content & Thermal Resistance
6–11% moisture content; resistance to a 100°C temperature differential without surface cracking
Supported Fabrication Sizes
Standard: 2250 × 920mm
Custom engineering size: up to 3000 × 1220mm
Clear Opening & Frame Sizing Formulas
Clear opening width + 50 = frame height
Door leaf width + 34 = frame width
Door leaf height + 26 = frame height
All formula dimensions are in millimeters.
Micro-Carved Line Depth
Approx. 0.8–1.2mm groove depth, preserving the integrity of the panel moisture barrier
Whole-Door Acoustic Insulation
Estimated weighted sound reduction index: Rw ≈ 31–34 dB with a T-type structure and graphite sound insulation
Magnetic Locks, Concealed Hinges & Smart Access Options
Coordinate magnetic locks, concealed hinges and optional smart access with the carved lines and colored finish of the CNC Micro-Carved & Colored Door. Equipped with concealed hinges; when closed, all hardware is fully hidden inside the aluminum frame and door leaf, invisible from both sides, ensuring the purity of the micro-carved artistic facade. Optional AL-J146 minimalist fingerprint lock or MIS lock, suitable for confidential access control in modern executive office suites. Coordinate carved patterns, accent colors, aluminum frames and hardware for executive offices, cultural venues and private interiors. Coordinate fine geometric carving, hand-colored accents, magnetic locks and concealed hinges to suit each interior concept. Submit project drawings to coordinate the carving pattern, accent colors, frame dimensions, concealed hinge positions and magnetic or smart lock options.
Concealed High-load Hardware
Optional Smart Upgrade
Project Applications & Door Configuration Options
CNC Micro-Carved & Colored Door Configurations
Executive Offices, Cultural Lounges & Private Study Configurations
Project & Technical References
Recommended Styles
Explore aluminum-wood door designs from our style library. Confirm the panel finish, frame configuration and dimensions for your project.
Flush Aluminum-Wood Door with HPL Finish — HBD007
HBD007
Concealed Aluminum-Wood Door with HPL Finish
BC2340
Flush Aluminum-Wood Door with HPL Finish
HBD004
Available Colors & Finishes
All wood grain finishes are bonded to the aluminum profile surface via vacuum heat transfer or PUR hot-melt lamination, ensuring zero batch-to-batch color deviation between metal frames and wooden door panels. For overseas projects, international RAL/NCS color cards are available for customized color matching.
Premium No. 14
BCAW20
Premium No. 15
BCAW19
Premium No. 16
BCAW18
Premium No. 11
BCAW17
Premium No. 12
BCAW16
Premium No. 13
BCAW15
Premium No. 18
BCAW14
Premium No. 10
BCAW13
Premium No. 17
BCAW12
Premium No. 2
BCAW11
Premium No. 3
BCAW10
Premium No. 9
BCAW09
Technical reference for color-matched one-piece aluminum edge banding.
